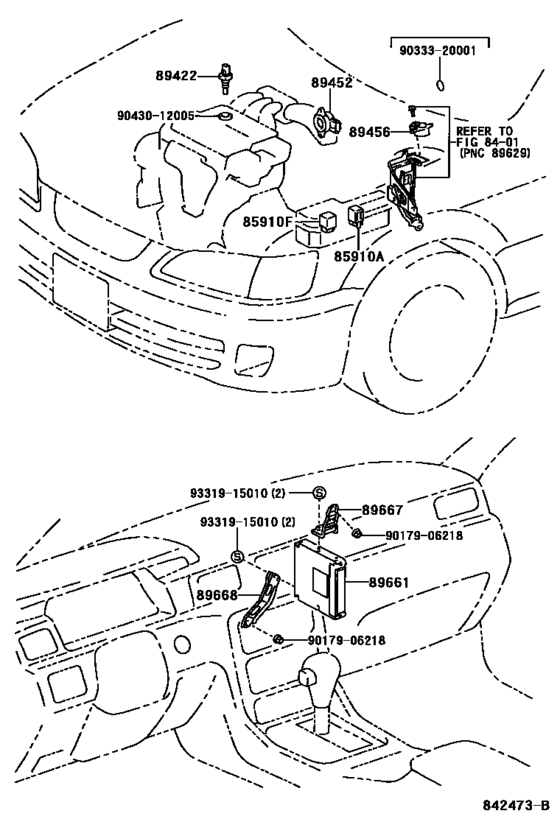

Electronic Fuel Injection System ([10.1998 - ] (9810- )GCC) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[08.1996 -] MCV20 |
90987-02012 |
from US $27.85 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[08.1996 -] MCV20 |
90987-02012 |
from US $27.85 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.1996 -] MCV20 |
89422-35010 |
from US $40.58 |
||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[05.2000 -] MCV20 |
89452-33030 |
from US $40.89 |
||
|
89452
|
89452
89452-33040
Sensor, Throttle Position (For E.f.i.)
[08.1996 - 05.2000] MCV20 |
89452-33040 |
— | ||
| replacement | |||||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[08.1996 - 05.2000] MCV20 |
89452-33030 |
from US $40.89 |
||
|
89456
|
89456
89456-30010 Resistor, VariableVARIABLE [10.1998 -] MCV20..GCC |
89456-30010 |
from US $93.18 |
||
|
89661
|
89661
89661-33880
Computer, Engine Control
[10.1998 - 08.2000] MCV20..GCC |
89661-33880 |
— | ||
|
89661
|
89661
89666-33230
Computer, Engine Control
[08.2000 -] MCV20..GCC |
89666-33230 |
— | ||
|
89667
|
89667
89667-33070 Bracket, Engine Control Computer[10.1998 -] MCV20..GCC |
89667-33070 |
US $12.23 |
||
|
89668
|
89668
89668-33060 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [10.1998 -] MCV20..GCC |
89668-33060 |
US $12.23 |
||
|
9017906218
|
9017906218
90179-06218
New Genuine Part
|
90179-06218 |
— | ||
| replacement | |||||
|
9017906218
|
9017906218
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.90 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
