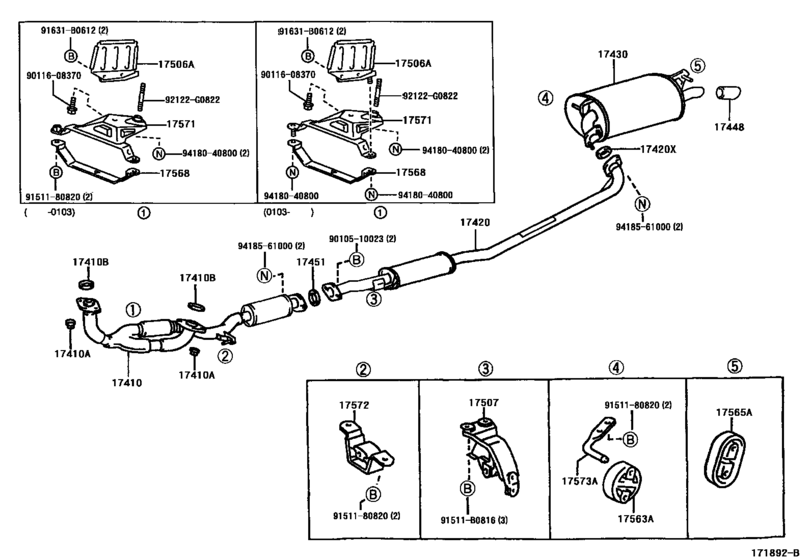

Exhaust Pipe ([10.1998 - ] (9810- )) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-20110 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [10.1998 - 01.2000] 1MZFE..MCV20..GCC |
17410-20110 |
US $327.60 |
||
| replacement | |||||
|
17410
|
17410
17410-20111 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [10.1998 - 01.2000] 1MZFE..MCV20..GCC |
17410-20111 |
US $329.06 |
||
|
17410
|
17410
17410-20111 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [01.2000 -] 1MZFE..MCV20..GCC |
17410-20111 |
US $329.06 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1996 -] 1MZFE..MCV20 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1996 -] 1MZFE..MCV20 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06065 Gasket, Exhaust Pipe[08.1996 -] 1MZFE..MCV20 |
90917-06065 |
from US $4.91 |
||
|
17420
|
17420
17420-20080 Pipe Assy, Exhaust, Center[10.1998 -] 1MZFE..MCV20..GCC |
17420-20080 |
US $531.44 |
||
| replacement | |||||
|
17420
|
17420
17420-20060 Pipe Assy, Exhaust, Center[10.1998 -] 1MZFE..MCV20..GCC |
17420-20060 |
US $531.44 |
||
|
17420X
|
17420X
90917-06073 Gasket, Exhaust Pipe, Center[08.1996 -] 1MZFE..MCV20 |
90917-06073 |
from US $7.20 |
||
|
17430
|
17430
17440-20120
Pipe Assy, Exhaust, Tail
[10.1998 -] 1MZFE..MCV20..GCC |
17440-20120 |
— | ||
|
17448
|
17448
17448-74130 Baffle, Tail Pipe[10.1998 -] 1MZFE..MCV20..GCC |
17448-74130 |
US $57.51 |
||
|
17451
|
17451
90917-06073 Gasket, Exhaust Pipe, Center[10.1998 -] 1MZFE..MCV20..GCC |
90917-06073 |
from US $7.20 |
||
|
17506A
|
17506A
17506-20060 Bracket Sub-Assy, Exhaust Pipe No.1 Support[03.1998 - 03.2001] 1MZFE..MCV20 |
17506-20060 |
US $31.89 |
||
| replacements | |||||
|
17506A
|
17506A
17506-20061 Bracket Sub-Assy, Exhaust Pipe No.1 Support[03.1998 - 03.2001] 1MZFE..MCV20 |
17506-20061 |
US $32.03 |
||
|
17506A
|
17506A
94180-40800 NUT[03.1998 - 03.2001] 1MZFE..MCV20 |
94180-40800 |
US $2.40 |
||
|
17506A
|
17506A
17506-20061 Bracket Sub-Assy, Exhaust Pipe No.1 Support[03.2001 -] 1MZFE..MCV20 |
17506-20061 |
US $32.03 |
||
|
17507
|
17507
17507-20040 Bracket Sub-Assy, Exhaust Pipe No.2 Support[10.1998 -] 1MZFE..MCV20..GCC |
17507-20040 |
from US $22.09 |
||
|
17563A
|
17563A
17565-20060 Support, Exhaust Pipe, No.3[08.1996 -] 1MZFE..MCV20 |
17565-20060 |
from US $15.35 |
||
|
17565A
|
17565A
17565-74290 Support, Exhaust Pipe, No.2[08.1997 -] 1MZFE..MCV20 |
17565-74290 |
from US $7.22 |
||
|
17568
|
17568
17568-20080 Stay, Exhaust Pipe Support[08.1996 -] 1MZFE..MCV20 |
17568-20080 |
US $32.32 |
||
|
17571
|
17571
17571-20070 Bracket, Exhaust Pipe Support, No.1[08.1996 - 03.2001] 1MZFE..MCV20 |
17571-20070 |
US $50.38 |
||
| replacements | |||||
|
17571
|
17571
17571-20071 Bracket, Exhaust Pipe Support, No.1[08.1996 - 03.2001] 1MZFE..MCV20 |
17571-20071 |
US $38.44 |
||
|
17571
|
17571
94180-40800 NUT[08.1996 - 03.2001] 1MZFE..MCV20 |
94180-40800 |
US $2.40 |
||
|
17571
|
17571
17571-20071 Bracket, Exhaust Pipe Support, No.1[03.2001 -] 1MZFE..MCV20 |
17571-20071 |
US $38.44 |
||
|
17572
|
17572
17572-20040 Bracket, Exhaust Pipe No.1 Support[08.1996 -] 1MZFE..MCV20 |
17572-20040 |
US $12.67 |
||
|
17573A
|
17573A
17573-74211 Bracket, Exhaust Pipe Support, No.3[10.1996 -] 1MZFE..MCV20 |
17573-74211 |
US $12.67 |
||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
US $0.92 |
||
| replacement | |||||
|
91511B0816
|
91511B0816
90080-10159 New Genuine Part |
90080-10159 |
US $3.21 |
||
|
91631B0612
|
91631B0612
91631-B0612
BRACKET
|
91631-B0612 |
— | ||
| replacement | |||||
|
91631B0612
|
91631B0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
92122G0822
|
92122G0822
92122-G0822 New Genuine Part |
92122-G0822 |
US $2.04 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011608370
|
9011608370
90116-08370 BOLT STUD |
90116-08370 |
US $0.87 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.86 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
US $2.40 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
||
