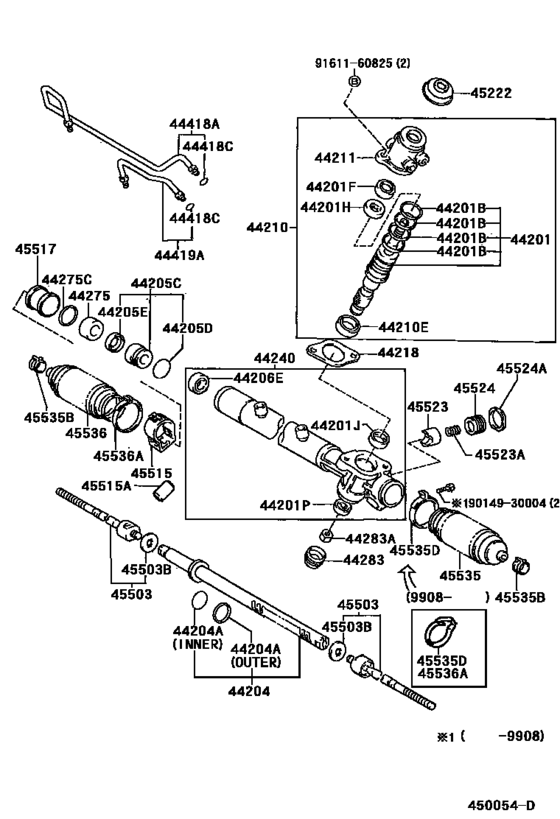

Front Steering Gear & Link ([10.1998 - ] (9810- )GCC) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-33171 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [10.1998 -] MCV20..GCC |
44201-33171 |
US $294.11 |
||
|
44201B
|
44201B
90560-33003 Spacer(For Power Steering Control Valve)[08.1996 -] MCV20 |
90560-33003 |
US $1.92 |
||
|
44201F
|
44201F
90311-19010 Seal, Oil(For Power Steering Control Valve)[10.1998 - 08.1999] MCV20..GCC |
90311-19010 |
from US $3.84 |
||
|
44201H
|
44201H
90363-19007 Bearing(For Power Steering Control Valve)[04.1998 -] MCV20 |
90363-19007 |
US $20.79 |
||
|
44201J
|
44201J
90364-25014 Bearing(For Power Steering Control Valve Center)[08.1996 -] MCV20 |
90364-25014 |
US $19.39 |
||
|
44201P
|
44201P
90363-12013 Bearing(For Power Steering Control Valve Lower)[08.1996 -] MCV20 |
90363-12013 |
from US $8.39 |
||
|
44204
|
44204
44204-33070 Rack Sub-Assy, Power SteeringPOWER STEERING [10.1998 -] MCV20..GCC |
44204-33070 |
US $243.15 |
||
|
44204A
|
44204A
90080-56013
Ring(For Rack Steering Piston)
[07.1997 -] MCV20 OUTER(L) |
90080-56013 |
— | ||
|
44204A
|
44204A
90301-36008 Ring(For Rack Steering Piston)[08.1996 -] MCV20 INNER |
90301-36008 |
US $4.02 |
||
|
44204A
|
44204A
90562-40003 Ring(For Rack Steering Piston)[08.1996 -] MCV20 OUTER(J) |
90562-40003 |
US $1.05 |
||
|
44205C
|
44205C
44205-33010
Stopper Sub-Assy, Cylinder End
[11.1996 -] MCV20 |
44205-33010 |
— | ||
|
44205D
|
44205D
90301-36009 Ring, O(For Power Steering Rack Bush)[08.1996 -] MCV20 |
90301-36009 |
US $2.62 |
||
|
44205E
|
44205E
90080-31010
Seal, Oil(For Power Steering Rack Bush)
[05.1997 -] MCV20 (L) |
90080-31010 |
— | ||
|
44205E
|
44205E
90311-27001 Seal, Oil(For Power Steering Rack Bush)[05.1997 -] MCV20 (J) |
90311-27001 |
from US $4.32 |
||
|
44206E
|
44206E
90080-31038
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[05.1997 -] MCV20 (L) |
90080-31038 |
— | ||
|
44206E
|
44206E
90311-27006 Seal, Oil, No.1(For Power Steering Cylinder Tube)[05.1997 -] MCV20 (J) |
90311-27006 |
from US $3.52 |
||
|
44210
|
44210
44210-33172 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [10.1998 -] MCV20..GCC |
44210-33172 |
US $563.47 |
||
|
44210E
|
44210E
90311-26003 Seal, Oil(For Power Steering Control Valve)[08.1996 -] MCV20 |
90311-26003 |
from US $3.84 |
||
|
44211
|
44211
44211-33011 Housing, Control ValveCONTROL VALVE [10.1998 -] MCV20..GCC |
44211-33011 |
US $138.32 |
||
|
44218
|
44218
44218-12020 Gasket, Valve Housing[08.1996 -] MCV20 |
44218-12020 |
from US $2.57 |
||
|
44240
|
44240
44240-33011 Housing Assy, Power Steering RackPOWER STEERING RACK [10.1998 -] MCV20..GCC |
44240-33011 |
US $407.68 |
||
|
44275
|
44275
44275-33020 Stopper, Cylinder End[08.1996 -] MCV20 |
44275-33020 |
US $22.57 |
||
|
44275C
|
44275C
90580-18002
Wire(For Cylinder End Stopper)
[08.1996 -] MCV20 |
90580-18002 |
— | ||
| replacement | |||||
|
44275C
|
44275C
90080-58122 Wire(For Cylinder End Stopper)[08.1996 -] MCV20 |
90080-58122 |
US $3.89 |
||
|
44283
|
44283
44283-33010
Cap, Rack Housing
[08.1996 -] MCV20 |
44283-33010 |
— | ||
|
44283A
|
44283A
90179-10048 Nut, Lock(For Power Steering Control Valve)[08.1996 -] MCV20 |
90179-10048 |
US $4.19 |
||
|
44418A
|
44418A
44418-33010 Tube, Steering Right Turn PressureSTEERING RIGHT TURN PRESSURE [10.1998 -] MCV20..GCC |
44418-33010 |
US $17.33 |
||
|
44418C
|
44418C
90301-03001 Seat, Union(For Steering Turn Pressure Tube)[08.1996 -] MCV20 |
90301-03001 |
US $2.88 |
||
| replacement | |||||
|
44418C
|
44418C
90080-30023 Ring, O(For Steering Turn Pressure Tube)[08.1996 -] MCV20 |
90080-30023 |
US $8.72 |
||
|
44419A
|
44419A
44419-33010 Tube, Steering Left Turn PressureSTEERING LEFT TURN PRESSURE [10.1998 -] MCV20..GCC |
44419-33010 |
US $14.41 |
||
|
45222
|
45222
45222-33010 Cover, Steering Gear Dust[08.1996 -] MCV20 |
45222-33010 |
US $6.29 |
||
|
45503
|
45503
45503-39135 End Sub-Assy, Steering Rack[08.1996 -] MCV20 |
45503-39135 |
from US $112.48 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[08.1996 -] MCV20 OD=37 |
90214-14002 |
from US $1.33 |
||
|
45515
|
45515
45515-33011 Bracket, Steering Rack Housing, No.2[08.1996 -] MCV20 |
45515-33011 |
US $12.75 |
||
|
45515A
|
45515A
90386-15004 Collar, Steering Rack Housing Bracket[08.1996 -] MCV20 |
90386-15004 |
US $2.62 |
||
|
45517
|
45517
45517-33021 Grommet, Steering Rack Housing, No.2[08.1996 -] MCV20 |
45517-33021 |
from US $9.78 |
||
|
45523
|
45523
45504-06010 Guide, Rack(For Steering Gear)[08.1996 -] MCV20 (L) |
45504-06010 |
US $81.54 |
||
|
45523
|
45523
45504-33010 Guide, Rack(For Steering Gear)[08.1996 -] MCV20 (J) |
45504-33010 |
from US $25.60 |
||
|
45523A
|
45523A
90501-26075 Spring(For Power Steering Rack Guide)[08.1996 -] MCV20 |
90501-26075 |
US $1.75 |
||
|
45524
|
45524
45524-33010
Cap, Steering Rack Guide Spring
[08.1996 - 11.1998] MCV20 |
45524-33010 |
— | ||
|
45524
|
45524
45524-33020 Cap, Steering Rack Guide Spring[11.1998 -] MCV20 |
45524-33020 |
US $6.99 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[08.1996 -] MCV20 |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-06020
Boot, Steering Rack, No.1
[08.1996 -] MCV20 (L) |
45535-06020 |
— | ||
|
45535
|
45535
45535-33020 Boot, Steering Rack, No.1[08.1996 -] MCV20 (J) |
45535-33020 |
from US $13.92 |
||
|
45535B
|
45535B
90467-19017
Clip(For Steering Rack Boot)
[08.1996 -] MCV20 |
90467-19017 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1996 -] MCV20 |
90467-19021 |
from US $1.52 |
||
|
45535D
|
45535D
90460-58006 Clamp(For Steering Rack Boot No.1)[08.1999 -] MCV20 |
90460-58006 |
US $5.92 |
||
|
45535D
|
45535D
90461-08688 Clamp(For Steering Rack Boot No.1)[08.1996 - 08.1999] MCV20 |
90461-08688 |
US $3.93 |
||
|
45536
|
45536
45535-06020
Boot, Steering Rack, No.1
[08.1996 -] MCV20 (L) |
45535-06020 |
— | ||
|
45536
|
45536
45535-33020 Boot, Steering Rack, No.1[08.1996 -] MCV20 (J) |
45535-33020 |
from US $13.92 |
||
|
45536A
|
45536A
90460-58006 Clamp(For Steering Rack Boot No.1)[08.1999 -] MCV20 |
90460-58006 |
US $5.92 |
||
|
45536A
|
45536A
90461-08688 Clamp(For Steering Rack Boot No.1)[08.1996 - 08.1999] MCV20 |
90461-08688 |
US $3.93 |
||
|
9014930004
|
9014930004
90149-30004 Screw(For Steering Rack Boot Clamp) |
90149-30004 |
US $1.76 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
