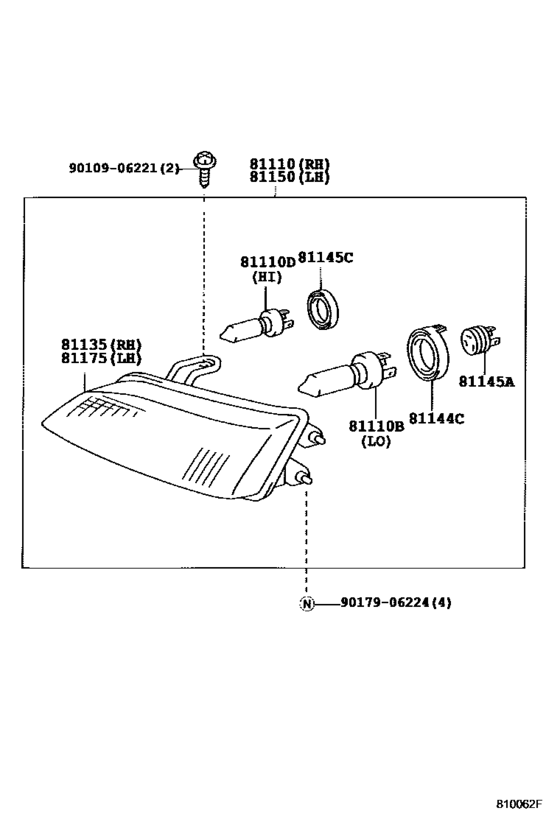

Headlamp ([08.1996 - 08.1999] (9608-9908) ; (9908- )ARL) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-33300 Headlamp Assy, Rh[10.1998 - 08.1999] MCV20..GCC |
81110-33300 |
US $551.82 |
||
|
81110
|
81110
81110-33380
Headlamp Assy, Rh
[08.1999 -] MCV20..GCC |
81110-33380 |
— | ||
|
81110B
|
81110B
90981-13059 Bulb(For Headlamp, No.1)[08.1996 - 08.1999] MCV20 12V 55W,HALOGEN |
90981-13059 |
US $29.12 |
||
| replacement | |||||
|
81110B
|
81110B
90981-13063 Bulb(For Headlamp, No.2)[08.1996 - 08.1999] MCV20 12V 55W,HALOGEN |
90981-13063 |
from US $16.38 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[08.1996 -] MCV20 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[08.1996 -] MCV20 12V 65W |
90981-13046 |
from US $16.34 |
||
|
81135
|
81135
81130-33300
Unit Assy, Headlamp, Rh
[10.1998 - 08.1999] MCV20..GCC |
81130-33300 |
— | ||
|
81135
|
81135
81130-33380
Unit Assy, Headlamp, Rh
[08.1999 - 10.1999] MCV20..GCC |
81130-33380 |
— | ||
| replacement | |||||
|
81135
|
81135
81140-33380
Unit Assy, Headlamp, Rh
[08.1999 - 10.1999] MCV20..GCC |
81140-33380 |
— | ||
|
81135
|
81135
81140-33380
Unit Assy, Headlamp, Rh
[10.1999 -] MCV20..GCC |
81140-33380 |
— | ||
|
81144C
|
81144C
90075-65002 Cover, Headlamp Back, No.1[08.1996 - 08.1999] MCV20 |
90075-65002 |
from US $6.77 |
||
|
81145A
|
81145A
90075-99117 Adapter Assy[08.1996 - 08.1999] MCV20 |
90075-99117 |
from US $11.51 |
||
|
81145C
|
81145C
90075-65006 Cover, Headlamp Back, No.1[08.1996 - 08.1999] MCV20 |
90075-65006 |
from US $5.19 |
||
|
81150
|
81150
81150-33290 Headlamp Assy, Lh[10.1998 - 08.1999] MCV20..GCC |
81150-33290 |
US $551.82 |
||
|
81150
|
81150
81150-33370
Headlamp Assy, Lh
[08.1999 -] MCV20..GCC |
81150-33370 |
— | ||
|
81175
|
81175
81070-33370 Unit Assy, Headlamp, Lh[10.1999 -] MCV20..GCC |
81070-33370 |
US $534.92 |
||
|
81175
|
81175
81170-33290
Unit Assy, Headlamp, Lh
[10.1998 - 08.1999] MCV20..GCC |
81170-33290 |
— | ||
|
81175
|
81175
81170-33370
Unit Assy, Headlamp, Lh
[08.1999 - 10.1999] MCV20..GCC |
81170-33370 |
— | ||
| replacement | |||||
|
81175
|
81175
81070-33370 Unit Assy, Headlamp, Lh[08.1999 - 10.1999] MCV20..GCC |
81070-33370 |
US $534.92 |
||
|
9010906221
|
9010906221
90109-06221
BOLTFOLDING SEAT
|
90109-06221 |
— | ||
| replacement | |||||
|
9010906221
|
9010906221
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.74 |
||
|
9017906224
|
9017906224
90179-06224
Direct
|
90179-06224 |
— | ||
| replacement | |||||
|
9017906224
|
9017906224
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
