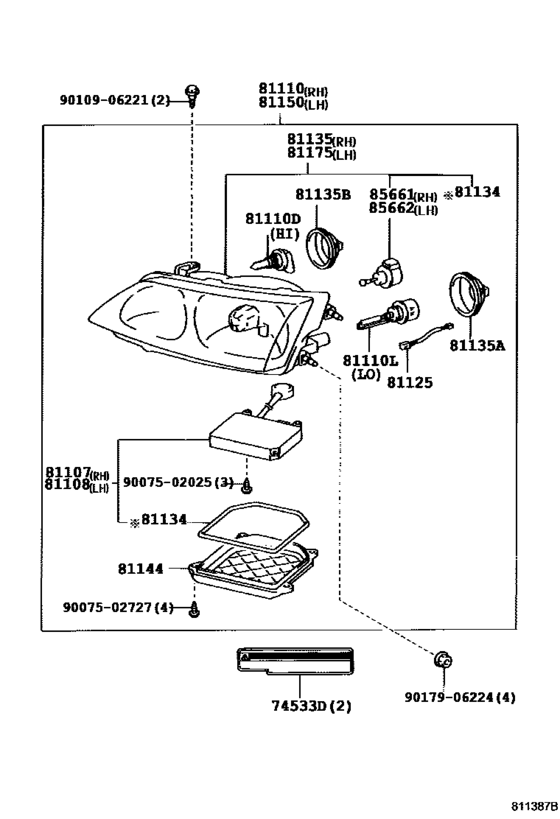

Headlamp ([10.1999 - ] (9910- )) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74533D
|
74533D
74533-33010 Label, Headlamp Voltage Caution[08.1999 -] MCV20..GCC |
74533-33010 |
US $3.67 |
||
|
81107
|
81107
81107-33350 Computer Sub-Assy, Headlamp Light Control[10.1999 -] MCV20..GCC |
81107-33350 |
US $471.74 |
||
|
81108
|
81108
81107-33350 Computer Sub-Assy, Headlamp Light Control[10.1999 -] MCV20..GCC |
81107-33350 |
US $471.74 |
||
|
81110
|
81110
81110-33300 Headlamp Assy, Rh[10.1998 - 08.1999] MCV20..GCC |
81110-33300 |
US $551.82 |
||
|
81110
|
81110
81110-33380
Headlamp Assy, Rh
[08.1999 -] MCV20..GCC |
81110-33380 |
— | ||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[08.1996 -] MCV20 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[08.1996 -] MCV20 12V 65W |
90981-13046 |
from US $16.34 |
||
|
81110L
|
81110L
90981-20001 Bulb(For Headlamp, No.1)[08.1999 -] MCV20..GCC 85V 35W |
90981-20001 |
from US $187.20 |
||
|
81125
|
81125
81125-33350 Cord, Headlamp[08.1999 -] MCV20..GCC |
81125-33350 |
US $17.76 |
||
|
81134
|
81134
90075-99137 Gasket, Headlamp[08.1999 -] MCV20..GCC |
90075-99137 |
US $9.28 |
||
|
81135
|
81135
81130-33300
Unit Assy, Headlamp, Rh
[10.1998 - 08.1999] MCV20..GCC |
81130-33300 |
— | ||
|
81135
|
81135
81130-33380
Unit Assy, Headlamp, Rh
[08.1999 - 10.1999] MCV20..GCC |
81130-33380 |
— | ||
| replacement | |||||
|
81135
|
81135
81140-33380
Unit Assy, Headlamp, Rh
[08.1999 - 10.1999] MCV20..GCC |
81140-33380 |
— | ||
|
81135
|
81135
81140-33380
Unit Assy, Headlamp, Rh
[10.1999 -] MCV20..GCC |
81140-33380 |
— | ||
|
81135A
|
81135A
90075-66003 Cap, Locking[08.1999 -] MCV20..GCC |
90075-66003 |
US $11.04 |
||
|
81135B
|
81135B
81135-3A430
Cap, Locking
[08.1999 -] MCV20..GCC |
81135-3A430 |
— | ||
|
81144
|
81144
90075-99136 Cover, Headlamp, No.1[08.1999 -] MCV20..GCC |
90075-99136 |
US $7.28 |
||
|
81150
|
81150
81150-33290 Headlamp Assy, Lh[10.1998 - 08.1999] MCV20..GCC |
81150-33290 |
US $551.82 |
||
|
81150
|
81150
81150-33370
Headlamp Assy, Lh
[08.1999 -] MCV20..GCC |
81150-33370 |
— | ||
|
81175
|
81175
81070-33370 Unit Assy, Headlamp, Lh[10.1999 -] MCV20..GCC |
81070-33370 |
US $534.92 |
||
|
81175
|
81175
81170-33290
Unit Assy, Headlamp, Lh
[10.1998 - 08.1999] MCV20..GCC |
81170-33290 |
— | ||
|
81175
|
81175
81170-33370
Unit Assy, Headlamp, Lh
[08.1999 - 10.1999] MCV20..GCC |
81170-33370 |
— | ||
| replacement | |||||
|
81175
|
81175
81070-33370 Unit Assy, Headlamp, Lh[08.1999 - 10.1999] MCV20..GCC |
81070-33370 |
US $534.92 |
||
|
85661
|
85661
85661-33010 Motor, Headlamp Leveling, Rh[08.1999 -] MCV20..GCC |
85661-33010 |
US $224.22 |
||
|
85662
|
85662
85661-33010 Motor, Headlamp Leveling, Rh[08.1999 -] MCV20..GCC |
85661-33010 |
US $224.22 |
||
|
9007502025
|
9007502025
90075-02025 Screw, Headlamp |
90075-02025 |
from US $0.84 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
US $1.12 |
||
|
9010906221
|
9010906221
90109-06221
BOLTFOLDING SEAT
|
90109-06221 |
— | ||
| replacement | |||||
|
9010906221
|
9010906221
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.74 |
||
|
9017906224
|
9017906224
90179-06224
Direct
|
90179-06224 |
— | ||
| replacement | |||||
|
9017906224
|
9017906224
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
