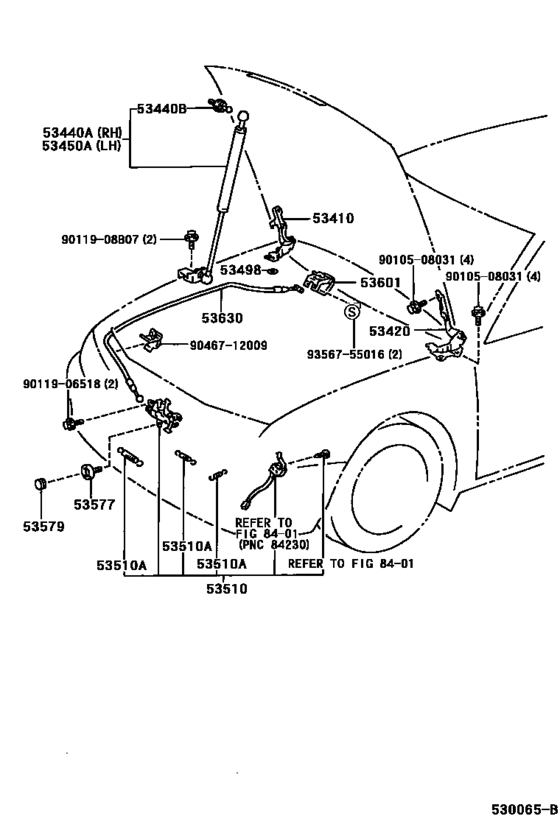

Hood Lock & Hinge ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-33040 Hinge Assy, Hood, Rh[08.1996 -] MCV20 |
53410-33040 |
US $34.80 |
||
|
53420
|
53420
53420-33040 Hinge Assy, Hood, Lh[08.1996 -] MCV20 |
53420-33040 |
US $34.80 |
||
|
53440A
|
53440A
53440-39155 Support Assy, Hood, Rh[08.1996 -] MCV20 |
53440-39155 |
US $128.04 |
||
|
53440B
|
53440B
68961-23010 Bolt, Hood Support, No.1[08.1996 -] MCV20 |
68961-23010 |
from US $4.70 |
||
|
53450A
|
53450A
53440-39155 Support Assy, Hood, Rh[08.1996 -] MCV20 |
53440-39155 |
US $128.04 |
||
|
53498
|
53498
53497-12050
Pad, Hood Hinge, No.1
[01.2000 -] MCV20 T=1.0 |
53497-12050 |
— | ||
| replacements | |||||
|
53498
|
53498
53497-42010 Pad, Hood Hinge, No.1[01.2000 -] MCV20 T=1.0 |
53497-42010 |
US $1.60 |
||
|
53498
|
53498
53497-12070 Pad, Hood Hinge, No.1[01.2000 -] MCV20 T=1.0 |
53497-12070 |
US $1.60 |
||
|
53498
|
53498
53497-20070 Pad, Hood Hinge, No.1[01.2000 -] MCV20 T=2.0 |
53497-20070 |
US $2.24 |
||
|
53510
|
53510
53510-33080
Lock Assy, Hood
[10.1998 -] MCV20..GCC |
53510-33080 |
— | ||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[10.1998 -] MCV20..GCC WD=0.9,CW=21 |
90506-09055 |
from US $1.44 |
||
|
53510A
|
53510A
90506-12067 Spring, Tension(For Hood Lock)[08.1996 -] MCV20 WD=1.4,CW=7.25 |
90506-12067 |
US $1.22 |
||
|
53510A
|
53510A
90506-20066 Spring, Tension(For Hood Lock)[10.1998 -] MCV20..GCC WD=2.0,CW=17 |
90506-20066 |
US $3.49 |
||
|
53577
|
53577
53577-33010 Bolt, Hood Lock[08.1996 -] MCV20 |
53577-33010 |
US $3.68 |
||
|
53579
|
53579
53579-50010 Cap, Hood Lock Nut[08.1996 -] MCV20 |
53579-50010 |
from US $1.21 |
||
|
53601
|
53601
53601-33020-A0 Lever Sub-Assy, Hood Lock Control[08.1996 -] MCV20 IVORY,TRIM0# |
53601-33020-A0 |
US $30.14 |
||
| replacement | |||||
|
53601
|
53601
53601-33020-C0 Lever Sub-Assy, Hood Lock Control[08.1996 -] MCV20 IVORY,TRIM0# |
53601-33020-C0 |
US $30.14 |
||
|
53601
|
53601
53601-33020-C0 Lever Sub-Assy, Hood Lock Control[10.1998 - 08.1999] MCV20..GCC BLACK,TRIM2# |
53601-33020-C0 |
US $30.14 |
||
|
53601
|
53601
53601-33020-G0 Lever Sub-Assy, Hood Lock Control[08.1996 -] MCV20 SAGE,TRIM6# |
53601-33020-G0 |
US $30.14 |
||
| replacement | |||||
|
53601
|
53601
53601-33020-C0 Lever Sub-Assy, Hood Lock Control[08.1996 -] MCV20 SAGE,TRIM6# |
53601-33020-C0 |
US $30.14 |
||
|
53630
|
53630
53630-33130 Cable Assy, Hood Lock ControlHOOD LOCK CONTROL [10.1998 -] MCV20..GCC |
53630-33130 |
US $21.69 |
||
|
9011908B07
|
9011908B07
90119-08B07 New Genuine Part |
90119-08B07 |
US $1.28 |
||
|
9010508031
|
9010508031
90105-08031 Bolt |
90105-08031 |
US $1.76 |
||
|
9011906518
|
9011906518
90119-06518 BOLT W-WASHER |
90119-06518 |
US $1.92 |
||
|
9046712009
|
9046712009
90467-12009 Clamp, No.1(For Luggage Door Lock Control Cable) |
90467-12009 |
from US $3.16 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
