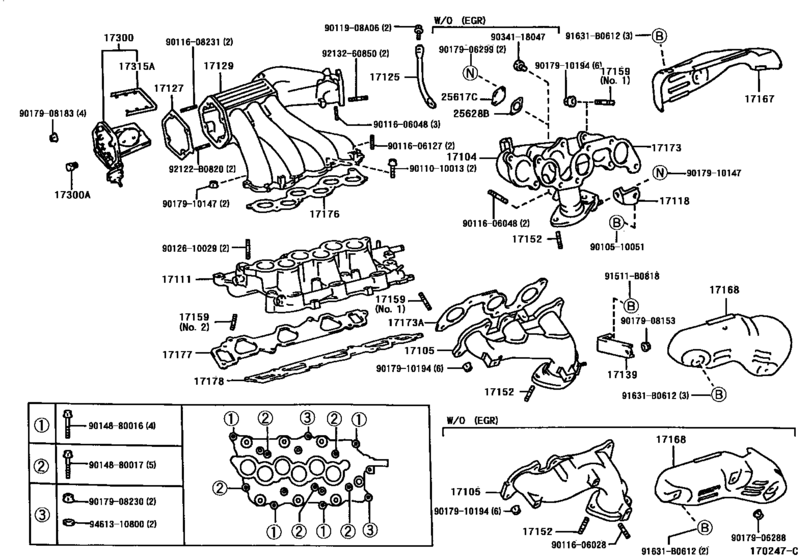

Manifold ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17141-20050 Manifold Sub-Assy, Exhaust, RhEXHAUST, RH [08.1996 -] 1MZFE..MCV20 |
17141-20050 |
US $292.66 |
||
|
17105
|
17105
17142-20030 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [10.1998 -] 1MZFE..MCV20..GCC |
17142-20030 |
from US $268.32 |
||
|
17111
|
17111
17101-20020 Manifold, Intake[10.1998 - 07.2001] 1MZFE..MCV20..GCC |
17101-20020 |
US $438.26 |
||
| replacement | |||||
|
17111
|
17111
17101-20021 Manifold, Intake[10.1998 - 07.2001] 1MZFE..MCV20..GCC |
17101-20021 |
US $439.71 |
||
|
17118
|
17118
17118-20020 Stay, Manifold[08.1996 -] 1MZFE..MCV20 |
17118-20020 |
US $11.21 |
||
|
17125
|
17125
17125-20010
Stay, Surge Tank, No.1
[08.1996 -] 1MZFE..MCV20 |
17125-20010 |
— | ||
|
17127
|
17127
17127-62030 Gasket, Surge Tank Cover[08.1996 -] 1MZFE..MCV20 |
17127-62030 |
from US $5.30 |
||
|
17129
|
17129
17109-20060 Tank, Intake Air Surge[10.1998 -] 1MZFE..MCV20..GCC |
17109-20060 |
US $703.25 |
||
|
17152
|
17152
90116-10149 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1996 -] 1MZFE..MCV20 |
90116-10149 |
from US $2.11 |
||
|
17159
|
17159
90116-10169 Bolt, Stud(For Manifold To Cylinder Head)used for exhaust manifold [08.1996 - 07.2001] 1MZFE..MCV20 NO.1 |
90116-10169 |
from US $1.44 |
||
|
17159
|
17159
90126-08013 Bolt, Stud(For Manifold To Cylinder Head)[08.1996 -] 1MZFE..MCV20 NO.2 |
90126-08013 |
from US $3.39 |
||
|
17167
|
17167
17167-20050
Insulator, Exhaust Manifold Heat, No.1
[08.1996 -] 1MZFE..MCV20 |
17167-20050 |
— | ||
|
17168
|
17168
17168-20020
Insulator, Exhaust Manifold Heat, No.2
[10.1998 -] 1MZFE..MCV20..GCC |
17168-20020 |
— | ||
|
17173
|
17173
17173-20010 Gasket, Exhaust Manifold To Head[08.1996 -] 1MZFE..MCV20 |
17173-20010 |
from US $23.36 |
||
|
17173A
|
17173A
17173-20010 Gasket, Exhaust Manifold To Head[08.1996 -] 1MZFE..MCV20 |
17173-20010 |
from US $23.36 |
||
|
17176
|
17176
17176-62030 Gasket, Air Surge Tank To Intake Manifold[08.1996 -] 1MZFE..MCV20 |
17176-62030 |
from US $8.85 |
||
|
17177
|
17177
17177-20020 Gasket, Intake Manifold To Head, No.1[10.1997 -] 1MZFE..MCV20 |
17177-20020 |
from US $27.59 |
||
|
17178
|
17178
17178-20020 Gasket, Intake Manifold To Head, No.2[10.1997 -] 1MZFE..MCV20 |
17178-20020 |
from US $27.22 |
||
|
17300
|
17300
17300-20020 Valve Assy, Intake Air Control[08.1996 -] 1MZFE..MCV20 |
17300-20020 |
US $416.42 |
||
|
17300A
|
17300A
90345-51006 Plug, W/head Taper Screw, No.2[08.1996 -] 1MZFE..MCV20 |
90345-51006 |
from US $0.96 |
||
|
17315A
|
17315A
17315-62020 Gasket, Intake Air Control Valve[08.1996 -] 1MZFE..MCV20 |
17315-62020 |
from US $4.33 |
||
|
25617C
|
25617C
25617-20010 Plate, Egr Hole Cover[10.1998 -] 1MZFE..MCV20..GCC |
25617-20010 |
US $7.57 |
||
|
25628B
|
25628B
25628-20010 Gasket, Egr Inlet[10.1998 -] 1MZFE..MCV20..GCC |
25628-20010 |
from US $6.65 |
||
|
91511B0818
|
91511B0818
91511-B0818 BOLT FLANGE |
91511-B0818 |
US $2.24 |
||
|
91631B0612
|
91631B0612
91631-B0612
BRACKET
|
91631-B0612 |
— | ||
| replacement | |||||
|
91631B0612
|
91631B0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
92122B0820
|
92122B0820
92122-B0820 Bolt, Stud(For Water Outlet) |
92122-B0820 |
US $1.22 |
||
|
9011908A06
|
9011908A06
90119-08A06 BOLT WWASHER |
90119-08A06 |
US $2.08 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9011010013
|
9011010013
90110-10013 BOLT HEXAGON SOCKET |
90110-10013 |
US $2.62 |
||
|
9011606028
|
9011606028
90116-06028 Bolt, Stud(For Exhaust Manifold, Rh) |
90116-06028 |
US $4.89 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.72 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9011608231
|
9011608231
90116-08231 New Genuine Part |
90116-08231 |
US $3.20 |
||
|
9012610029
|
9012610029
90126-10029 New Genuine Part |
90126-10029 |
US $2.18 |
||
|
9014880016
|
9014880016
90148-80016 New Genuine Part |
90148-80016 |
US $9.17 |
||
|
9014880017
|
9014880017
90148-80017 New Genuine Part |
90148-80017 |
US $1.49 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
US $1.12 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $1.15 |
||
|
9017908230
|
9017908230
90179-08230 New Genuine Part |
90179-08230 |
US $2.08 |
||
|
9017910147
|
9017910147
90179-10147 New Genuine Part |
90179-10147 |
US $2.33 |
||
|
9017910194
|
9017910194
90179-10194 NUT |
90179-10194 |
US $5.76 |
||
|
9034118047
|
9034118047
90341-18047 Plug, No.1 |
90341-18047 |
US $6.24 |
||
|
9213260850
|
9213260850
92132-60850
Bolt, Stud(For Manifold To Cylinder Head)
|
92132-60850 |
— | ||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
