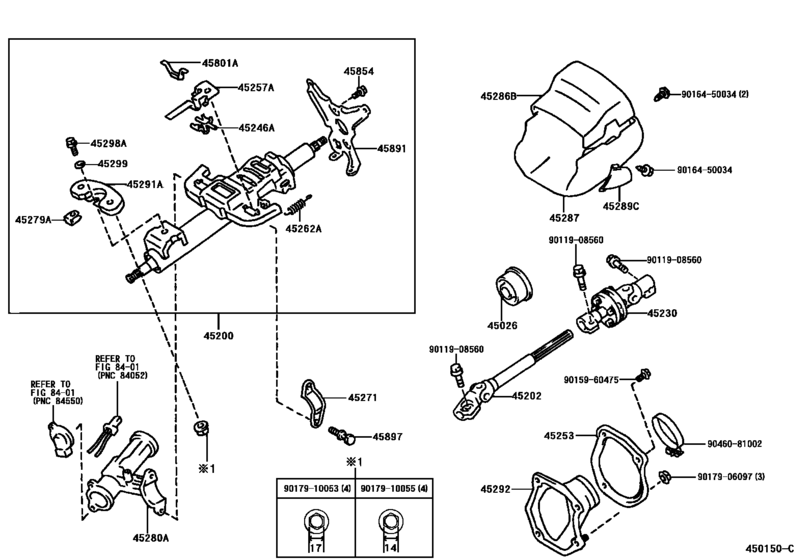

Steering Column & Shaft ([10.1998 - ] (9810- )GCC) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45026
|
45026
45026-33030 Cover Sub-Assy, Steering Column Hole, No.2[08.1996 - 04.2001] MCV20 |
45026-33030 |
US $27.96 |
||
| replacement | |||||
|
45026
|
45026
45026-33031
Cover Sub-Assy, Steering Column Hole, No.2
[08.1996 - 04.2001] MCV20 |
45026-33031 |
— | ||
|
45026
|
45026
45026-33031
Cover Sub-Assy, Steering Column Hole, No.2
[04.2001 -] MCV20 |
45026-33031 |
— | ||
|
45200
|
45200
45250-33490 Post Assy, SteeringSTEERING [10.1998 -] MCV20..GCC |
45250-33490 |
US $546 |
||
|
45202
|
45202
45202-33010 Shaft Sub-Assy, Steering IntermediateSTEERING INTERMEDIATE [10.1998 -] MCV20..GCC |
45202-33010 |
US $170.35 |
||
|
45230
|
45230
45230-33030
Coupling Assy, Flexible
[10.1998 -] MCV20..GCC |
45230-33030 |
— | ||
|
45246A
|
45246A
45246-33030
Guide, Steering Energy Absorbing Plate
[10.1998 -] MCV20..GCC |
45246-33030 |
— | ||
|
45253
|
45253
45253-33030 Cover, Steering Column HoleSTEERING COLUMN HOLE [10.1998 -] MCV20..GCC |
45253-33030 |
US $15.58 |
||
|
45257A
|
45257A
45257-33040
Plate, Steering Column Energy Absorbing
[10.1998 -] MCV20..GCC |
45257-33040 |
— | ||
|
45262A
|
45262A
45262-33010
Spring, Tilt Lever Return
[10.1998 -] MCV20..GCC |
45262-33010 |
— | ||
|
45271
|
45271
45271-12060 Clamp, Steering Column, Upper[08.1996 -] MCV20 |
45271-12060 |
US $13.44 |
||
|
45279A
|
45279A
45279-33010 Attachment, Steering Column Tube, Lwr[10.1998 -] MCV20..GCC |
45279-33010 |
US $3.20 |
||
|
45280A
|
45280A
45280-33080 Bracket Assy, Steering Column, Upper[08.1996 -] MCV20 |
45280-33080 |
US $179.09 |
||
|
45286B
|
45286B
45286-33120-C0 Cover, Steering Column, UprSTEERING COLUMN, UPR [10.1998 - 07.2001] MCV20..GCC BLACK,TRIM2# |
45286-33120-C0 |
US $34.07 |
||
|
45286B
|
45286B
45286-33120-E0
Cover, Steering Column, Upr
[10.1998 - 07.2001] MCV20..GCC OAK,TRIM0# |
45286-33120-E0 |
— | ||
| replacement | |||||
|
45286B
|
45286B
45286-33120-C0 Cover, Steering Column, UprSTEERING COLUMN, UPR [10.1998 - 07.2001] MCV20..GCC OAK,TRIM0# |
45286-33120-C0 |
US $34.07 |
||
|
45286B
|
45286B
45286-33120-G0 Cover, Steering Column, UprSTEERING COLUMN, UPR [10.1998 - 07.2001] MCV20..GCC DK.SAGE,TRIM6# |
45286-33120-G0 |
US $34.07 |
||
| replacement | |||||
|
45286B
|
45286B
45286-33120-C0 Cover, Steering Column, UprSTEERING COLUMN, UPR [10.1998 - 07.2001] MCV20..GCC DK.SAGE,TRIM6# |
45286-33120-C0 |
US $34.07 |
||
|
45287
|
45287
45287-33150-C0 Cover, Steering Column, LwrSTEERING COLUMN, LWR [10.1998 - 07.2001] MCV20..GCC BLACK,TRIM2# |
45287-33150-C0 |
US $53.14 |
||
| replacement | |||||
|
45287
|
45287
45286-33926-C0 Cover, Steering ColumnSTEERING COLUMN [10.1998 - 07.2001] MCV20..GCC BLACK,TRIM2# |
45286-33926-C0 |
US $52.42 |
||
|
45287
|
45287
45287-33150-E0
Cover, Steering Column, Lwr
[10.1998 - 07.2001] MCV20..GCC OAK,TRIM0# |
45287-33150-E0 |
— | ||
| replacement | |||||
|
45287
|
45287
45286-33926-C0 Cover, Steering ColumnSTEERING COLUMN [10.1998 - 07.2001] MCV20..GCC OAK,TRIM0# |
45286-33926-C0 |
US $52.42 |
||
|
45287
|
45287
45287-33150-G0 Cover, Steering Column, LwrSTEERING COLUMN, LWR [10.1998 - 07.2001] MCV20..GCC DK.SAGE,TRIM6# |
45287-33150-G0 |
US $53.14 |
||
| replacement | |||||
|
45287
|
45287
45286-33926-C0 Cover, Steering ColumnSTEERING COLUMN [10.1998 - 07.2001] MCV20..GCC DK.SAGE,TRIM6# |
45286-33926-C0 |
US $52.42 |
||
|
45289C
|
45289C
45289-33010-C0 Cover, Steering Column, Lwr No.2STEERING COLUMN, LWR NO.2 [10.1998 -] MCV20..GCC BLACK,TRIM2# |
45289-33010-C0 |
US $4.22 |
||
| replacement | |||||
|
45289C
|
45289C
45289-33030-C0 Cover, Steering Column, Lwr No.2[10.1998 -] MCV20..GCC BLACK,TRIM2# |
45289-33030-C0 |
US $7.57 |
||
|
45289C
|
45289C
45289-33010-E0 Cover, Steering Column, Lwr No.2STEERING COLUMN, LWR NO.2 [10.1998 -] MCV20..GCC OAK,TRIM0# |
45289-33010-E0 |
US $4.22 |
||
| replacement | |||||
|
45289C
|
45289C
45289-33030-C0 Cover, Steering Column, Lwr No.2[10.1998 -] MCV20..GCC OAK,TRIM0# |
45289-33030-C0 |
US $7.57 |
||
|
45289C
|
45289C
45289-33010-G0 Cover, Steering Column, Lwr No.2STEERING COLUMN, LWR NO.2 [10.1998 -] MCV20..GCC DK.SAGE,TRIM6# |
45289-33010-G0 |
US $4.22 |
||
| replacement | |||||
|
45289C
|
45289C
45289-33030-C0 Cover, Steering Column, Lwr No.2[10.1998 -] MCV20..GCC DK.SAGE,TRIM6# |
45289-33030-C0 |
US $7.57 |
||
|
45291A
|
45291A
45291-33010
Support, Steering Column Tube
[10.1998 -] MCV20..GCC |
45291-33010 |
— | ||
|
45292
|
45292
45292-33030 Seal, Main Shaft Lower DustMAIN SHAFT LOWER DUST [10.1998 -] MCV20..GCC |
45292-33030 |
US $24.46 |
||
|
45298A
|
45298A
45298-33010
Bolt, Steering Column Lower Tube
[10.1998 -] MCV20..GCC |
45298-33010 |
— | ||
|
45299
|
45299
45299-33010
Washer, Steering Column Lower Tube
[10.1998 -] MCV20..GCC |
45299-33010 |
— | ||
|
45801A
|
45801A
45875-12010 Support Sub-Assy, Steering Post[08.1996 -] MCV20 |
45875-12010 |
US $1.31 |
||
|
45854
|
45854
45854-33010
Bolt, Turn Signal Bracket
[10.1998 - 12.1998] MCV20..GCC |
45854-33010 |
— | ||
|
45854
|
45854
45854-48010 Bolt, Turn Signal Bracket[12.1998 -] MCV20..GCC |
45854-48010 |
US $1.16 |
||
|
45891
|
45891
45891-33050
Bracket, Turn Signal
[10.1998 -] MCV20..GCC |
45891-33050 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[08.1996 -] MCV20 |
45897-12020 |
from US $2.89 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9015960475
|
9015960475
90159-60475 New Genuine Part |
90159-60475 |
US $0.52 |
||
|
9016450034
|
9016450034
90164-50034 Direct |
90164-50034 |
US $1.12 |
||
| replacement | |||||
|
9016450034
|
9016450034
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017910053
|
9017910053
90179-10053 New Genuine Part |
90179-10053 |
US $2.04 |
||
|
9017910055
|
9017910055
90179-10055 NUT |
90179-10055 |
US $2.62 |
||
|
9046081002
|
9046081002
90460-81002 New Genuine Part |
90460-81002 |
US $5.68 |
||
