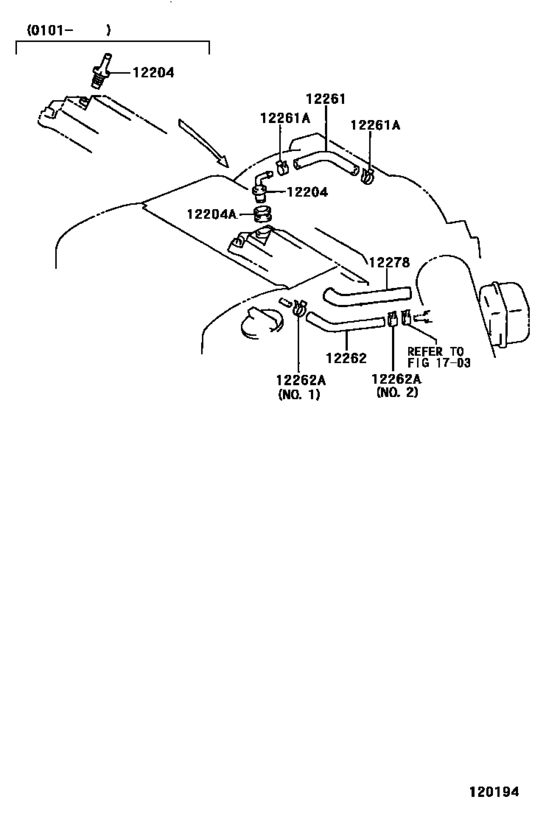

Ventilation Hose ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-20010 Valve Sub-Assy, Ventilation[08.1996 - 01.2001] 1MZFE..MCV20 |
12204-20010 |
from US $21.55 |
||
|
12204
|
12204
12204-20040 Valve Sub-Assy, Ventilation[01.2001 -] 1MZFE..MCV20 |
12204-20040 |
from US $15.72 |
||
|
12204A
|
12204A
90480-18001 Grommet(For Ventilation System)[08.1996 - 01.2001] 1MZFE..MCV20 |
90480-18001 |
from US $3.98 |
||
|
12261
|
12261
12261-20011 Hose, Ventilation[08.1997 -] 1MZFE..MCV20 |
12261-20011 |
from US $10.34 |
||
|
12261A
|
12261A
90467-14017 Clip Or Clamp(For Ventilation Hose)[08.1996 -] 1MZFE..MCV20 |
90467-14017 |
from US $1.68 |
||
|
12262
|
12262
12262-20020 Hose, Ventilation, No.2[09.1997 -] 1MZFE..MCV20 |
12262-20020 |
from US $14.74 |
||
|
12262A
|
12262A
90467-17011
Clip Or Clamp(For Ventilation Hose)
[09.1997 -] 1MZFE..MCV20 NO.1 |
90467-17011 |
— | ||
| replacement | |||||
|
12262A
|
12262A
96134-51700 Clip Or Clamp(For Ventilation Hose)[09.1997 -] 1MZFE..MCV20 NO.1 |
96134-51700 |
US $2.24 |
||
|
12262A
|
12262A
96134-41900 Clip Or Clamp(For Ventilation Hose)[05.1998 -] 1MZFE..MCV20 NO.2 |
96134-41900 |
from US $1.44 |
||
|
12278
|
12278
12278-20010 Insulator, Ventilation Hose Heat[09.1997 -] 1MZFE..MCV20 |
12278-20010 |
US $6.81 |
||
