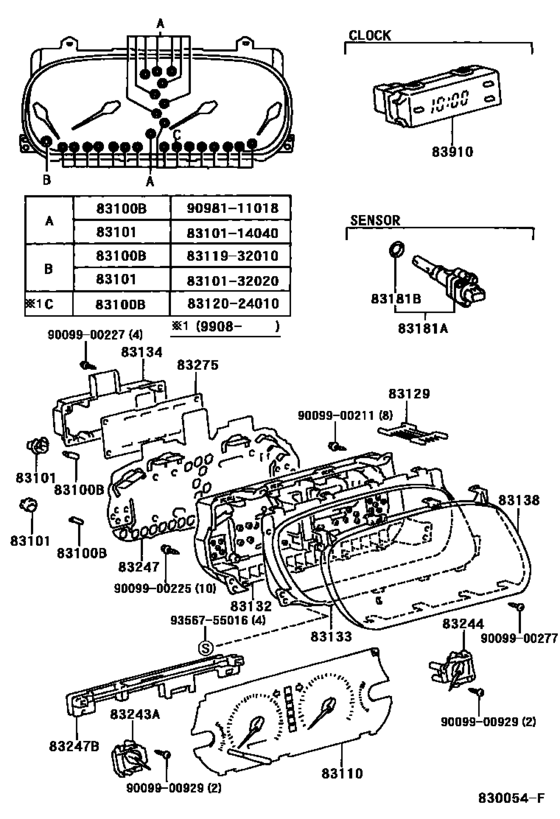

Meter ([08.1996 - ] (9608- )ARL) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- ARL
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[08.1996 -] MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
83119-32010 |
from US $2.32 |
||
|
83100B
|
83100B
83120-24010
Bulb, Combination Meter, No.1
[08.1999 -] MCV20..ARL 13.5V,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
83120-24010 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1999 -] MCV20 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1999 -] MCV20 TYPE A:REFER TO ILLUSTRATION |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[08.1996 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
83101-32020 |
from US $2.42 |
||
|
83110
|
83110
83220-33070 Speedometer Assy[08.1996 - 08.1999] MCV20..ARL |
83220-33070 |
US $867.78 |
||
|
83110
|
83110
83220-33071
Speedometer Assy
[08.1999 -] MCV20..ARL |
83220-33071 |
— | ||
|
83129
|
83129
83875-33150
Wire, Meter
[08.1996 -] MCV20 |
83875-33150 |
— | ||
|
83132
|
83132
83841-33150
Case, Combination Meter
[08.1996 -] MCV20..ARL |
83841-33150 |
— | ||
|
83133
|
83133
83811-33150
Plate, Combination Meter, No.1
[08.1996 -] MCV20 |
83811-33150 |
— | ||
|
83134
|
83134
83821-33150
Cover, Combination Meter, No.1
[08.1996 -] MCV20 |
83821-33150 |
— | ||
|
83138
|
83138
83852-33150
Glass, Speedometer
[08.1996 -] MCV20..ARL |
83852-33150 |
— | ||
|
83181A
|
83181A
83181-12040 Sensor, Speedometer[08.1996 -] MCV20 |
83181-12040 |
from US $181.71 |
||
|
83181B
|
83181B
96711-24018 Ring, O[08.1996 -] MCV20 |
96711-24018 |
from US $2.34 |
||
|
83243A
|
83243A
83882-33150 Gauge Sub-Assy, Fuel Receiver[08.1996 -] MCV20..ARL |
83882-33150 |
US $70.76 |
||
|
83244
|
83244
83883-33150 Gauge Sub-Assy, Water Temperature Receiver[08.1996 -] MCV20..ARL |
83883-33150 |
US $70.76 |
||
|
83247
|
83247
83861-33180
Plate, Meter Circuit
[08.1996 -] MCV20..ARL |
83861-33180 |
— | ||
|
83247B
|
83247B
83864-33150
Plate, Meter Circuit, No.2
[08.1996 - 08.1997] MCV20 |
83864-33150 |
— | ||
|
83247B
|
83247B
83864-33180
Plate, Meter Circuit, No.2
[08.1997 -] MCV20..ARL |
83864-33180 |
— | ||
|
83275
|
83275
83275-33150 Plate,computer Meter Circuit No.1[08.1996 -] MCV20..ARL |
83275-33150 |
US $160.16 |
||
|
83910
|
83910
83910-20720 Clock Assy[08.1996 -] MCV20 |
83910-20720 |
US $342.45 |
||
|
9009900211
|
9009900211
90099-00211
New Genuine Part
|
90099-00211 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900227
|
9009900227
90099-00227
New Genuine Part
|
90099-00227 |
— | ||
|
9009900277
|
9009900277
90099-00277
New Genuine Part
|
90099-00277 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
