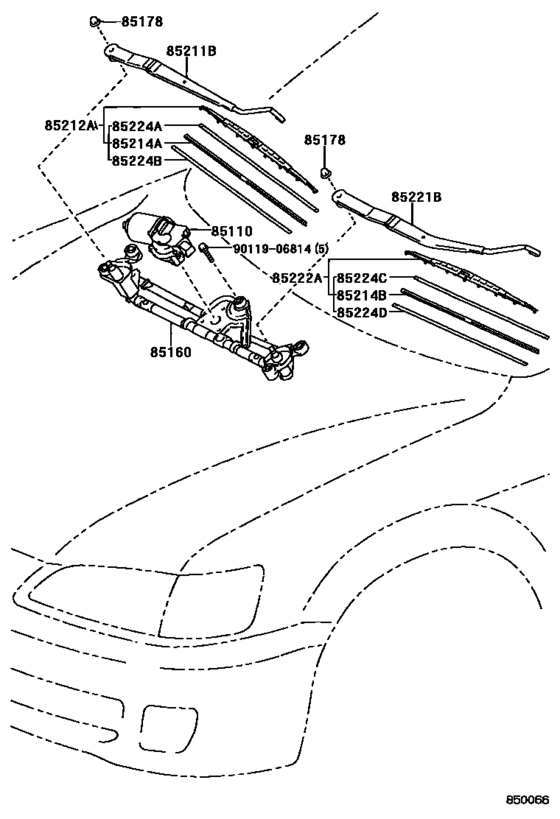

Windshield Wiper ([08.1996 - ] (9608- )ARL) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- ARL
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-33170 Motor Assy, Windshield Wiper[08.1996 -] MCV20..ARL |
85110-33170 |
US $407.68 |
||
| replacement | |||||
|
85110
|
85110
85110-33210 Motor Assy, Windshield Wiper[08.1996 -] MCV20..ARL |
85110-33210 |
US $407.68 |
||
|
85160
|
85160
85150-33110 Link Assy, Windshield Wiper[08.1996 -] MCV20..ARL |
85150-33110 |
US $152.88 |
||
|
85178
|
85178
90176-10005 Nut (For Front Wiper Arm Setting)[08.1996 -] MCV20 |
90176-10005 |
from US $0.99 |
||
|
85211B
|
85211B
85211-33150 Arm, Front Wiper, RhFR WIPER, RH [08.1996 -] MCV20..ARL |
85211-33150 |
US $71.34 |
||
|
85212A
|
85212A
85212-33130 Blade, Fr Wiper, Rh[08.1996 - 05.1999] MCV20..ARL |
85212-33130 |
US $53.44 |
||
| replacement | |||||
|
85212A
|
85212A
85212-33170 Blade, Fr Wiper, Rh[08.1996 - 05.1999] MCV20..ARL |
85212-33170 |
US $53.44 |
||
|
85212A
|
85212A
85212-33170 Blade, Fr Wiper, Rh[05.1999 -] MCV20..ARL |
85212-33170 |
US $53.44 |
||
|
85214A
|
85214A
85214-30350 Rubber, Wiper, Rh[05.1999 -] MCV20..ARL |
85214-30350 |
US $13.98 |
||
| replacement | |||||
|
85214A
|
85214A
85214-48010 Rubber, Wiper, Rh[05.1999 -] MCV20..ARL |
85214-48010 |
from US $11.76 |
||
|
85214A
|
85214A
85214-33110 Rubber, Wiper, Rh[08.1996 - 05.1999] MCV20..ARL |
85214-33110 |
US $13.98 |
||
| replacement | |||||
|
85214A
|
85214A
85214-48010 Rubber, Wiper, Rh[08.1996 - 05.1999] MCV20..ARL |
85214-48010 |
from US $11.76 |
||
|
85214B
|
85214B
85214-20350
Rubber, Wiper, Lh
[08.1996 - 05.1999] MCV20..ARL |
85214-20350 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-46011 Rubber, Wiper, Lh[08.1996 - 05.1999] MCV20..ARL |
85214-46011 |
from US $9.54 |
||
|
85214B
|
85214B
85214-30360 Rubber, Wiper, Lh[05.1999 -] MCV20..ARL |
85214-30360 |
US $12.96 |
||
| replacement | |||||
|
85214B
|
85214B
85214-46011 Rubber, Wiper, Lh[05.1999 -] MCV20..ARL |
85214-46011 |
from US $9.54 |
||
|
85221B
|
85221B
85221-33150 Arm, Front Wiper, Lh[08.1996 -] MCV20..ARL |
85221-33150 |
US $74.26 |
||
|
85222A
|
85222A
85222-30540 Blade, Fr Wiper, Lh[05.1999 -] MCV20..ARL |
85222-30540 |
US $36.55 |
||
| replacement | |||||
|
85222A
|
85222A
85222-46011 Blade, Fr Wiper, Lh[05.1999 -] MCV20..ARL |
85222-46011 |
US $38.15 |
||
|
85222A
|
85222A
85222-33150 Blade, Fr Wiper, Lh[08.1996 - 05.1999] MCV20..ARL |
85222-33150 |
US $36.55 |
||
| replacement | |||||
|
85222A
|
85222A
85222-46011 Blade, Fr Wiper, Lh[08.1996 - 05.1999] MCV20..ARL |
85222-46011 |
US $38.15 |
||
|
85224A
|
85224A
85224-33040 Plate, Wiper Rubber Backing, No.1[08.1996 -] MCV20..ARL |
85224-33040 |
US $3.93 |
||
|
85224B
|
85224B
85224-33040 Plate, Wiper Rubber Backing, No.1[08.1996 -] MCV20..ARL |
85224-33040 |
US $3.93 |
||
|
85224C
|
85224C
85224-20310 Plate, Wiper Rubber Backing, No.3[08.1996 -] MCV20..ARL |
85224-20310 |
US $2.62 |
||
|
85224D
|
85224D
85224-20310 Plate, Wiper Rubber Backing, No.3[08.1996 -] MCV20..ARL |
85224-20310 |
US $2.62 |
||
|
9011906814
|
9011906814
90119-06814 BOLT WWASHER |
90119-06814 |
US $1.89 |
||
