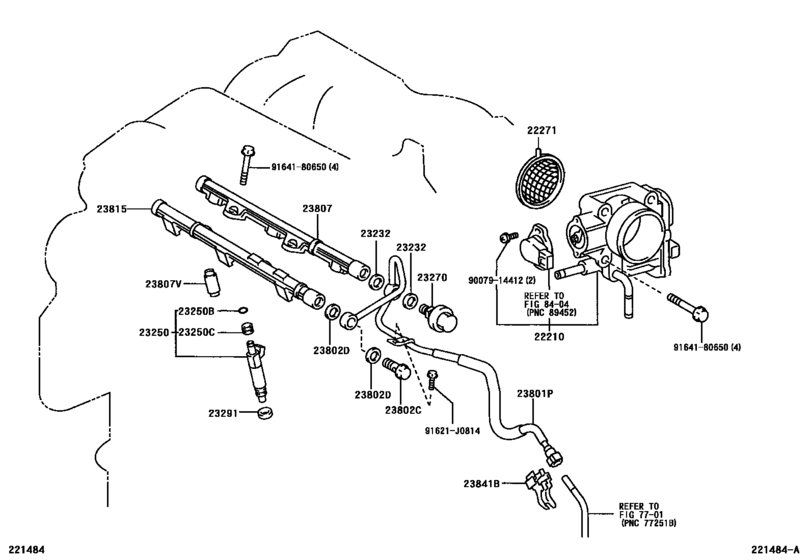

Fuel Injection System ([07.2001 - 07.2003] (0107-0307)) Diagram Toyota LEXUS ES
- Year
- 2001 - 2003
- Sales region
- U.S.A.
- Frame
- MCV30
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- ES300
- From
- 07.2001
- To
- 07.2003
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22030-20030 Body Assy, ThrottleTHROTTLE [07.2001 - 07.2003] 1MZFE..MCV30 |
22030-20030 |
US $1,126.94 |
||
|
22271
|
22271
22271-20040 Gasket, Intake Air Connector[07.2001 - 07.2003] 1MZFE..MCV30 |
22271-20040 |
US $12.96 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[07.2001 - 06.2004] 1MZFE,3MZFE..MCV3# |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-20030 Injector Assy, Fuel[07.2001 - 07.2003] 1MZFE..MCV30 |
23209-20030 |
US $225.68 |
||
| replacement | |||||
|
23250
|
23250
23209-20040 Injector Assy, FuelFUEL [07.2001 - 07.2003] 1MZFE..MCV30 |
23209-20040 |
US $315.95 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[07.2001 - 07.2003] 1MZFE..MCV30 |
90301-07024 |
US $3.04 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[07.2001 - 07.2003] 1MZFE..MCV30 |
90480-13005 |
from US $2.50 |
||
|
23270
|
23270
23270-62010
Damper Assy, Fuel Pressure Pulsation
[07.2001 - 06.2004] 1MZFE,3MZFE..MCV3# |
23270-62010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[07.2001 - 06.2004] 1MZFE,3MZFE..MCV3# |
23207-20011 |
US $105.08 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[07.2001 - 07.2003] 1MZFE..MCV30 |
23291-41010 |
from US $2.87 |
||
|
23801P
|
23801P
23801-20150 Pipe Sub-Assy, Fuel, No.1[07.2001 - 07.2003] 1MZFE..MCV30 |
23801-20150 |
US $99.01 |
||
|
23802C
|
23802C
90401-12015 Bolt, Union(For Fuel Pipe No.2)[07.2001 - 07.2003] 1MZFE..MCV30 |
90401-12015 |
US $5.07 |
||
|
23802D
|
23802D
90430-12026 Gasket[07.2001 - 07.2003] 1MZFE..MCV30 |
90430-12026 |
from US $0.88 |
||
|
23807
|
23807
23814-20020 Pipe Sub-Assy, Fuel Delivery[07.2001 - 07.2003] 1MZFE..MCV30 |
23814-20020 |
US $103.38 |
||
| replacement | |||||
|
23807
|
23807
23814-20021 Pipe Sub-Assy, Fuel Delivery[07.2001 - 07.2003] 1MZFE..MCV30 |
23814-20021 |
US $85.90 |
||
|
23807V
|
23807V
90561-08020 Spacer, No.1(For Delivery Pipe)[07.2001 - 07.2003] 1MZFE..MCV30 |
90561-08020 |
from US $3.20 |
||
|
23815
|
23815
23815-20020
Pipe, Fuel Delivery, No.2
[07.2001 - 07.2003] 1MZFE..MCV30 |
23815-20020 |
— | ||
| replacement | |||||
|
23815
|
23815
23815-20021 Pipe, Fuel Delivery, No.2[07.2001 - 07.2003] 1MZFE..MCV30 |
23815-20021 |
US $101.34 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[07.2001 - 06.2004] 1MZFE,3MZFE..MCV3# |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[07.2001 - 06.2004] 1MZFE,3MZFE..MCV3# |
23841-21050 |
US $3.52 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
9007914412
|
9007914412
90079-14412 New Genuine Part |
90079-14412 |
US $1.46 |
||
|
9164180650
|
9164180650
91641-80650 New Genuine Part |
91641-80650 |
US $1.46 |
||
