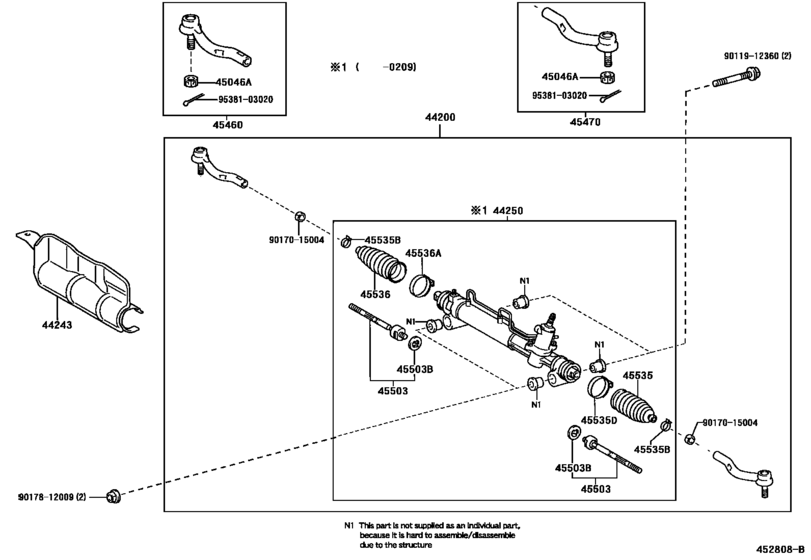

Front Steering Gear & Link ([07.2001 - ] (0107- )GCC) Diagram Toyota LEXUS ES
- Year
- 2001 - 2006
- Sales region
- General
- Frame
- MCV30
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 07.2001
- To
- 03.2006
- Vehicle Model
- ES300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-33350 Link Assy, Power SteeringPOWER STEERING [07.2001 - 07.2003] MCV30..GCC |
44200-33350 |
US $1,572.48 |
||
| replacement | |||||
|
44200
|
44200
44250-33331
Gear Assy, Power Steering(For Rack & Pinion)
[07.2001 - 07.2003] MCV30..GCC |
44250-33331 |
— | ||
|
44200
|
44200
44200-33351 Link Assy, Power SteeringPOWER STEERING [07.2003 - 06.2004] MCV30..GCC |
44200-33351 |
US $1,499.68 |
||
| replacements | |||||
|
44200
|
44200
44250-33331
Gear Assy, Power Steering(For Rack & Pinion)
[07.2003 - 06.2004] MCV30..GCC |
44250-33331 |
— | ||
|
44200
|
44200
45460-39635 Rod Assy, Tie, Rh[07.2003 - 06.2004] MCV30..GCC |
45460-39635 |
from US $67.79 |
||
|
44200
|
44200
45470-39225 Rod Assy, Tie, Lh[07.2003 - 06.2004] MCV30..GCC |
45470-39225 |
from US $67.79 |
||
|
44200
|
44200
90170-15004 Nut, Rack End Lock[07.2003 - 06.2004] MCV30..GCC |
90170-15004 |
US $2.56 |
||
|
44243
|
44243
44243-33010 Insulator, Power Steering Rack Housing HeatPOWER STEERING RACK HOUSING HEAT [07.2001 - 06.2004] MCV30..GCC |
44243-33010 |
US $21.55 |
||
|
44250
|
44250
44250-33350 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [07.2001 - 09.2002] MCV30..GCC |
44250-33350 |
US $1,439.98 |
||
| replacement | |||||
|
44250
|
44250
44250-33331
Gear Assy, Power Steering(For Rack & Pinion)
[07.2001 - 09.2002] MCV30..GCC |
44250-33331 |
— | ||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[07.2001 - 06.2004] MCV30 |
90171-12028 |
from US $1.42 |
||
|
45460
|
45460
45460-39615 Rod Assy, Tie, Rh[07.2001 - 07.2003] MCV30 |
45460-39615 |
US $60.98 |
||
|
45460
|
45460
45460-39635 Rod Assy, Tie, Rh[07.2003 - 06.2004] MCV30 |
45460-39635 |
from US $67.79 |
||
|
45470
|
45470
45470-39215 Rod Assy, Tie, Lh[07.2001 - 07.2003] MCV30 |
45470-39215 |
from US $60.98 |
||
|
45470
|
45470
45470-39225 Rod Assy, Tie, Lh[07.2003 - 06.2004] MCV30 |
45470-39225 |
from US $67.79 |
||
|
45503
|
45503
45503-39225 End Sub-Assy, Steering Rack[07.2001 - 06.2004] MCV30 |
45503-39225 |
from US $101.92 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[07.2001 - 06.2004] MCV30 OD=35.2 |
90214-14009 |
from US $1.35 |
||
|
45535
|
45535
45535-06030
Boot, Steering Rack, No.1
[07.2001 - 06.2004] MCV30 (L) |
45535-06030 |
— | ||
|
45535
|
45535
45535-33030 Boot, Steering Rack, No.1[07.2001 - 06.2004] MCV30 (J) |
45535-33030 |
from US $13.92 |
||
|
45535B
|
45535B
90080-46153
Clip(For Steering Rack Boot)
[07.2001 - 06.2004] MCV30 (L) |
90080-46153 |
— | ||
|
45535B
|
45535B
90467-19017
Clip(For Steering Rack Boot)
[07.2001 - 04.2002] MCV30 (J) |
90467-19017 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[07.2001 - 04.2002] MCV30 (J) |
90467-19021 |
from US $1.54 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2002 - 06.2004] MCV30 (J) |
90467-19021 |
from US $1.54 |
||
|
45535D
|
45535D
90080-46293 Clamp(For Steering Rack Boot No.1)[07.2001 - 06.2004] MCV30 (L) |
90080-46293 |
US $10.06 |
||
|
45535D
|
45535D
90460-58007 Clamp(For Steering Rack Boot No.1)[07.2001 - 06.2004] MCV30 (J) |
90460-58007 |
from US $5.67 |
||
|
45536
|
45536
45535-06030
Boot, Steering Rack, No.1
[07.2001 - 06.2004] MCV30 (L) |
45535-06030 |
— | ||
|
45536
|
45536
45535-33030 Boot, Steering Rack, No.1[07.2001 - 06.2004] MCV30 (J) |
45535-33030 |
from US $13.92 |
||
|
45536A
|
45536A
90080-46293 Clamp(For Steering Rack Boot No.1)[07.2001 - 06.2004] MCV30 (L) |
90080-46293 |
US $10.06 |
||
|
45536A
|
45536A
90460-58007 Clamp(For Steering Rack Boot No.1)[07.2001 - 06.2004] MCV30 (J) |
90460-58007 |
from US $5.67 |
||
|
9011912360
|
9011912360
90119-12360 BOLT WWASHER |
90119-12360 |
US $4.08 |
||
|
9017015004
|
9017015004
90170-15004 Nut, Rack End Lock |
90170-15004 |
US $2.56 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
