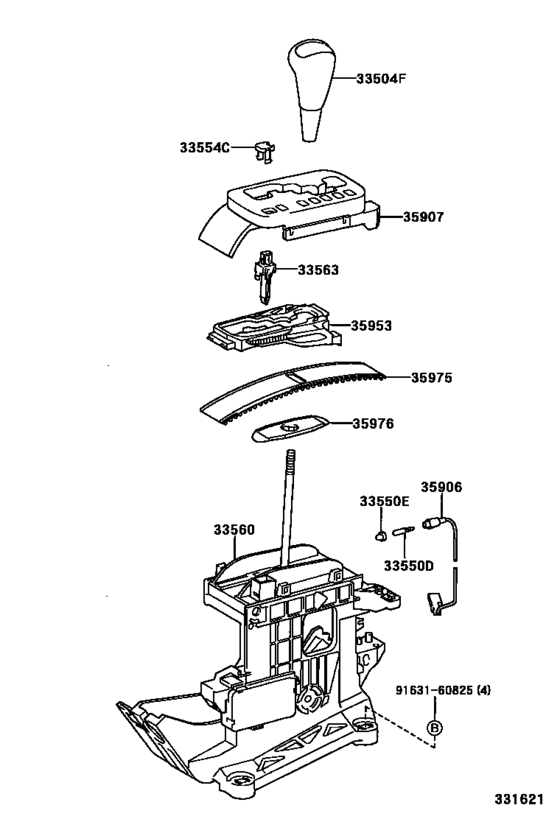

Shift Lever & Retainer ([07.2001 - ] (0107- )) Diagram Toyota LEXUS ES
- Year
- 2001 - 2006
- Sales region
- General
- Frame
- MCV30
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 07.2001
- To
- 03.2006
- Vehicle Model
- ES300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-33010-B0 Knob Sub-Assy, Shift LeverSHIFT LEVER [07.2001 - 06.2004] MCV30..GCC SADDLE GRAY,TRIM1# |
33504-33010-B0 |
US $302.85 |
||
| replacement | |||||
|
33504F
|
33504F
33504-50050-C6 Knob Sub-Assy, Shift Lever[07.2001 - 06.2004] MCV30..GCC SADDLE GRAY,TRIM1# |
33504-50050-C6 |
US $301.39 |
||
|
33504F
|
33504F
33504-33010-B2 Knob Sub-Assy, Shift LeverSHIFT LEVER [06.2004 - 03.2006] MCV30..GCC LIGHTBROWN & MD.GRAY,TRIM1# |
33504-33010-B2 |
US $302.85 |
||
| replacement | |||||
|
33504F
|
33504F
33504-50050-C1 Knob Sub-Assy, Shift Lever[06.2004 - 03.2006] MCV30..GCC LIGHTBROWN & MD.GRAY,TRIM1# |
33504-50050-C1 |
US $301.39 |
||
|
33504F
|
33504F
33504-33010-C0 Knob Sub-Assy, Shift LeverSHIFT LEVER [07.2001 - 06.2004] MCV30..GCC BLACK,TRIM2# |
33504-33010-C0 |
US $302.85 |
||
| replacement | |||||
|
33504F
|
33504F
33504-50050-C6 Knob Sub-Assy, Shift Lever[07.2001 - 06.2004] MCV30..GCC BLACK,TRIM2# |
33504-50050-C6 |
US $301.39 |
||
|
33504F
|
33504F
33504-33010-C1 Knob Sub-Assy, Shift LeverSHIFT LEVER [06.2004 - 03.2006] MCV30..GCC REDDISH BROWN & BLACK,TRIM2# |
33504-33010-C1 |
US $302.85 |
||
| replacement | |||||
|
33504F
|
33504F
33504-50050-C6 Knob Sub-Assy, Shift Lever[06.2004 - 03.2006] MCV30..GCC REDDISH BROWN & BLACK,TRIM2# |
33504-50050-C6 |
US $301.39 |
||
|
33504F
|
33504F
33504-33010-E0 Knob Sub-Assy, Shift LeverSHIFT LEVER [07.2001 - 06.2004] MCV30..GCC SANDAL WOOD,TRIM0# |
33504-33010-E0 |
US $302.85 |
||
| replacement | |||||
|
33504F
|
33504F
33504-50050-C6 Knob Sub-Assy, Shift Lever[07.2001 - 06.2004] MCV30..GCC SANDAL WOOD,TRIM0# |
33504-50050-C6 |
US $301.39 |
||
|
33504F
|
33504F
33504-33010-E1 Knob Sub-Assy, Shift LeverSHIFT LEVER [06.2004 - 03.2006] MCV30..GCC LIGHTBROWN & SANDAL WOOD,TRIM0# |
33504-33010-E1 |
US $302.85 |
||
| replacement | |||||
|
33504F
|
33504F
33504-50050-C1 Knob Sub-Assy, Shift Lever[06.2004 - 03.2006] MCV30..GCC LIGHTBROWN & SANDAL WOOD,TRIM0# |
33504-50050-C1 |
US $301.39 |
||
|
33550D
|
33550D
90981-11040 Bulb, Position Indicator Lamp[07.2001 - 06.2004] MCV30 12V 2W |
90981-11040 |
from US $2.18 |
||
|
33550E
|
33550E
90339-04049 Cap, Position Indicator Lamp[07.2001 - 06.2004] MCV30 |
90339-04049 |
from US $1.60 |
||
|
33554C
|
33554C
33502-33060 Cover, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [07.2001 - 06.2004] MCV30..GCC |
33502-33060 |
US $1.16 |
||
|
33560
|
33560
33560-33050
Unit Assy, Shift Lock Control
[07.2001 - 09.2002] MCV30..GCC |
33560-33050 |
— | ||
| replacement | |||||
|
33560
|
33560
33560-33051
Unit Assy, Shift Lock Control
[07.2001 - 09.2002] MCV30..GCC |
33560-33051 |
— | ||
|
33560
|
33560
33560-33051
Unit Assy, Shift Lock Control
[09.2002 - 06.2004] MCV30..GCC |
33560-33051 |
— | ||
|
33563
|
33563
33563-33160
Button, Shift Lock Release
[07.2001 - 06.2004] MCV30..GCC |
33563-33160 |
— | ||
|
35906
|
35906
35906-33090 Wire Sub-Assy, Indicator Lamp[07.2001 - 06.2004] MCV30 |
35906-33090 |
US $6.41 |
||
| replacement | |||||
|
35906
|
35906
35906-35120 Wire Sub-Assy, Indicator LampINDICATOR LAMP [07.2001 - 06.2004] MCV30 |
35906-35120 |
US $9.09 |
||
|
35907
|
35907
35907-33010
Housing Sub-Assy, Position Indicator (For Floor Shift)
[07.2001 - 06.2004] MCV30..GCC |
35907-33010 |
— | ||
|
35953
|
35953
35953-33010
Guide, Position Indicator Light
[07.2001 - 06.2004] MCV30..GCC |
35953-33010 |
— | ||
|
35975
|
35975
35975-33070
Cover, Slide (For Position Indicator)
[07.2001 - 06.2004] MCV30 |
35975-33070 |
— | ||
|
35976
|
35976
35976-33070
Cover, Slide, No.2 (For Position Indicator)
[07.2001 - 06.2004] MCV30 |
35976-33070 |
— | ||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.84 |
||
