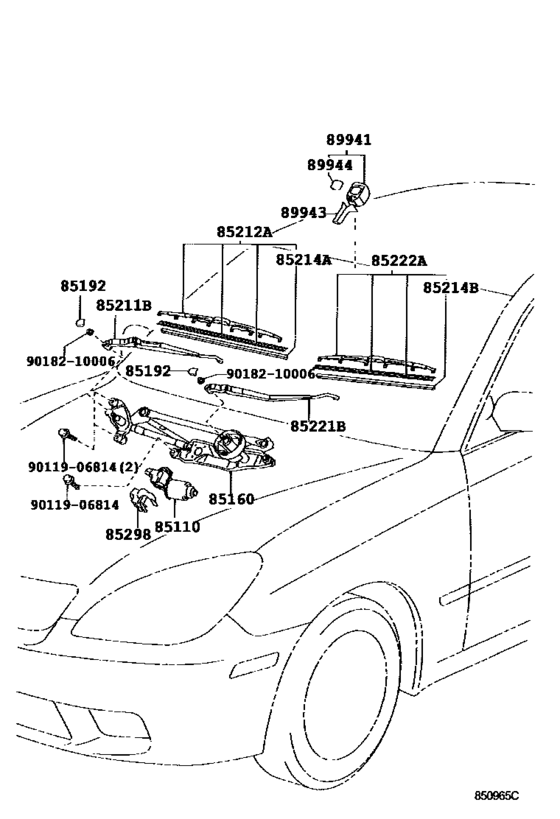

Windshield Wiper ([07.2001 - ] (0107- )ARL) Diagram Toyota LEXUS ES
- Year
- 2001 - 2006
- Sales region
- General
- Frame
- MCV30
- ENGINE
- 1MZFE
- DESTINATION
- ARL
- Model
- ES300
- From
- 07.2001
- To
- 03.2006
- Vehicle Model
- ES300
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-33280 Motor Assy, Windshield Wiper[07.2001 - 06.2004] MCV30..ARL |
85110-33280 |
US $369.82 |
||
| replacement | |||||
|
85110
|
85110
85110-33290 Motor Assy, Windshield Wiper[07.2001 - 06.2004] MCV30..ARL |
85110-33290 |
US $375.65 |
||
|
85160
|
85160
85150-33200 Link Assy, Windshield Wiper[07.2001 - 06.2004] MCV30..ARL |
85150-33200 |
US $138.32 |
||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[07.2001 - 06.2004] MCV30 |
85292-13010 |
from US $4 |
||
|
85211B
|
85211B
85211-33230 Arm, Front Wiper, Rh[07.2001 - 06.2004] MCV30..ARL |
85211-33230 |
US $71.34 |
||
|
85212A
|
85212A
85212-24100
Blade, Fr Wiper, Rh
[10.2004 - 03.2006] MCV30..ARL |
85212-24100 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-30370 Blade, Fr Wiper, Rh[10.2004 - 03.2006] MCV30..ARL |
85212-30370 |
US $51.07 |
||
|
85212A
|
85212A
85212-33190
Blade, Fr Wiper, Rh
[07.2001 - 10.2004] MCV30..ARL |
85212-33190 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-30370 Blade, Fr Wiper, Rh[07.2001 - 10.2004] MCV30..ARL |
85212-30370 |
US $51.07 |
||
|
85214A
|
85214A
85214-50100 Rubber, Wiper, Rh[10.2004 - 03.2006] MCV30..ARL |
85214-50100 |
from US $13.34 |
||
|
85214A
|
85214A
85214-50120
Rubber, Wiper, Rh
[07.2001 - 06.2004] MCV30..ARL |
85214-50120 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-50100 Rubber, Wiper, Rh[07.2001 - 06.2004] MCV30..ARL |
85214-50100 |
from US $13.34 |
||
|
85214B
|
85214B
85214-24050
Rubber, Wiper, Rh
[10.2004 - 03.2006] MCV30..ARL |
85214-24050 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-24051 Rubber, Wiper, Rh[10.2004 - 03.2006] MCV30..ARL |
85214-24051 |
from US $12.80 |
||
|
85214B
|
85214B
85214-53050 Rubber, Wiper, Rh[07.2001 - 06.2004] MCV30..ARL |
85214-53050 |
US $12.81 |
||
| replacement | |||||
|
85214B
|
85214B
85214-24051 Rubber, Wiper, Rh[07.2001 - 06.2004] MCV30..ARL |
85214-24051 |
from US $12.80 |
||
|
85221B
|
85221B
85221-33220 Arm, Front Wiper, Lh[07.2001 - 06.2004] MCV30..ARL |
85221-33220 |
US $71.34 |
||
|
85222A
|
85222A
85222-24100
Blade, Fr Wiper, Lh
[10.2004 - 03.2006] MCV30..ARL |
85222-24100 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-43021 Blade, Fr Wiper, Lh[10.2004 - 03.2006] MCV30..ARL |
85222-43021 |
US $36.48 |
||
|
85222A
|
85222A
85222-43020
Blade, Fr Wiper, Lh
[07.2001 - 06.2004] MCV30..ARL |
85222-43020 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-43021 Blade, Fr Wiper, Lh[07.2001 - 06.2004] MCV30..ARL |
85222-43021 |
US $36.48 |
||
|
85298
|
85298
85111-33020
Cover, Wiper Motor
[06.2004 -] MCV30..ARL |
85111-33020 |
— | ||
|
89941
|
89941
89941-33010 Sensor, Rain[07.2001 - 07.2002] MCV30..ARL |
89941-33010 |
US $267.90 |
||
|
89941
|
89941
89941-33011 Sensor, Rain[07.2002 - 10.2002] MCV30..ARL |
89941-33011 |
US $266.45 |
||
| replacement | |||||
|
89941
|
89941
89941-33010 Sensor, Rain[07.2002 - 10.2002] MCV30..ARL |
89941-33010 |
US $267.90 |
||
|
89943
|
89943
89943-33010 Cover, Rain Sensor[07.2001 - 06.2004] MCV30..ARL |
89943-33010 |
US $27.08 |
||
|
89943
|
89943
89943-33030 Cover, Rain Sensor[09.2004 -] MCV30..ARL |
89943-33030 |
US $27.08 |
||
|
89944
|
89944
89944-33010 Tape, Rain Sensor[07.2001 - 06.2004] MCV30..ARL |
89944-33010 |
from US $18.10 |
||
|
9011906814
|
9011906814
90119-06814 BOLT WWASHER |
90119-06814 |
US $1.89 |
||
|
9018210006
|
9018210006
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
US $1.28 |
||
