	Description	OEM Part #	Price
12311A	12311A 12311-20070 Bracket, Engine Mounting, Front(For Transverse Engine) [07.2003 - 06.2004] 3MZFE..MCV31	12311-20070	US $46.88
12313	12313 12313-20060 Bracket, Engine Mounting Control(For Transverse Engine) [07.2001 - 06.2004] 1MZFE,3MZFE..MCV3#	12313-20060	US $27.26
12315A	12315A 12315-20020 Bracket, Engine Mounting, Rh(For Transverse Engine) [07.2003 - 06.2004] 3MZFE..MCV31 NO.1	12315-20020	US $68
12315A	12315A 12315-20040 Bracket, Engine Mounting, Rh(For Transverse Engine) [07.2003 - 06.2004] 3MZFE..MCV31 NO.2	12315-20040	US $77.17
12316	12316 12316-20020 Bracket, Engine Mounting, No.2 Rh [07.2001 - 06.2004] 1MZFE,3MZFE..MCV3#	12316-20020	US $86.31
12327A	12327A 12327-20020 Stay, Engine Mounting, No.2 Rh [07.2001 - 06.2004] 1MZFE,3MZFE..MCV3#	12327-20020	—
12360	12360 12360-20130 Insulator Assy, Engine Mounting, Front ENGINE MOUNTING, FRONT [07.2003 - 06.2004] 3MZFE..MCV31	12360-20130	from US $240.24
12362	12362 12362-20070 Insulator, Engine Mounting, Rh(For Transverse Engine) [07.2003 - 06.2004] 3MZFE..MCV31	12362-20070	from US $200.93
12363A	12363A 12363-20120 Rod, Engine Moving Control [07.2003 - 06.2004] 3MZFE..MCV31	12363-20120	from US $89.76
12372A	12372A 12372-20060 Insulator, Engine Mounting, Lh(For Transverse Engine) [07.2001 - 06.2004] 1MZFE,3MZFE..MCV3#	12372-20060	from US $165.65
12511	12511 12511-20020 Bracket, Alternator, No.1 [07.2003 - 06.2004] 3MZFE..MCV31	12511-20020	US $163.07
12512A	12512A 12512-20020 Bracket, Alternator, No.2 [07.2001 - 06.2004] 1MZFE,3MZFE..MCV3#	12512-20020	US $17.33
12514	12514 12514-20010 Bar, Alternator Belt Adjusting [07.2003 - 06.2004] 3MZFE..MCV31	12514-20010	US $32.32
12514A	12514A 16385-20010 Slider, Fan Belt Adjusting [07.2001 - 06.2004] 1MZFE,3MZFE..MCV3#	16385-20010	US $12.23
12515	12515 12515-20010 Bolt, Alternator Through [07.2001 - 06.2004] 1MZFE,3MZFE..MCV3#	12515-20010	US $7.69
91511B0845	91511B0845 91511-B0845 Bolt	91511-B0845	US $3.40
9011908A12	9011908A12 90119-08A12 New Genuine Part	90119-08A12	US $1.43
9010508312	9010508312 90105-08312 BOLT WASHER BASED	90105-08312	US $1.40
9010510381	9010510381 90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1)	90105-10381	US $1.79
9010510444	9010510444 90105-10444 Shaft, Clutch Pedal	90105-10444	from US $1.35
9010510446	9010510446 90105-10446 New Genuine Part	90105-10446	US $1.60
9010510490	9010510490 90105-10490 New Genuine Part	90105-10490	US $5.24
9010512274	9010512274 90105-12274 BOLTWASHER BASED	90105-12274	from US $1.56
9011908419	9011908419 90119-08419 BOLT	90119-08419	US $5.02
9011910599	9011910599 90119-10599 BOLT WWASHER	90119-10599	US $3.30
9011910647	9011910647 90119-10647 BOLT WWASHER	90119-10647	US $3.40
9011910766	9011910766 90119-10766 BOLT WWASHER	90119-10766	from US $4.23
9011910820	9011910820 90119-10820 BOLT WWASHER	90119-10820	from US $1.44
9012610011	9012610011 90126-10011 New Genuine Part	90126-10011	US $9.17
9012610014	9012610014 90126-10014 Bolt, Stud(For Manifold To Cylinder Head)	90126-10014	from US $3.37
9017908153	9017908153 90179-08153 NUT	90179-08153	from US $0.78
9017910147	9017910147 90179-10147 New Genuine Part	90179-10147	US $2.33
9017910176	9017910176 90179-10176 NUT	90179-10176	US $2.69
9017910212	9017910212 90179-10212 Nut(For Front Suspension Support)	90179-10212	from US $0.92
9017912152	9017912152 90179-12152 NUT	90179-12152	US $3.94
9017914062	9017914062 90179-14062 Nut (For Steering Knuckle Rh)	90179-14062	from US $1.25
9461211001	9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)	94612-11001	from US $1.08

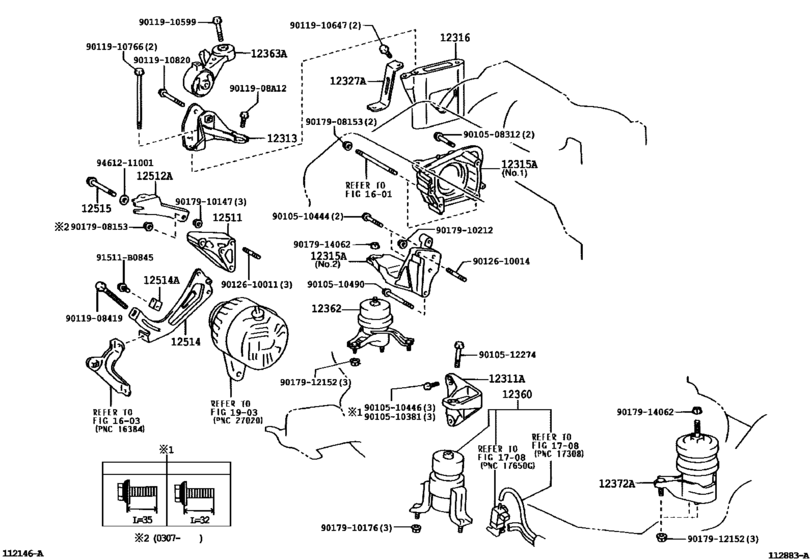

Mounting ([07.2001 - ] (0107- )) Diagram Toyota LEXUS ES U.S.A. 17817482-917309

Mounting ([07.2001 - ] (0107- )) Diagram Toyota LEXUS ES U.S.A. 17817482-917309
