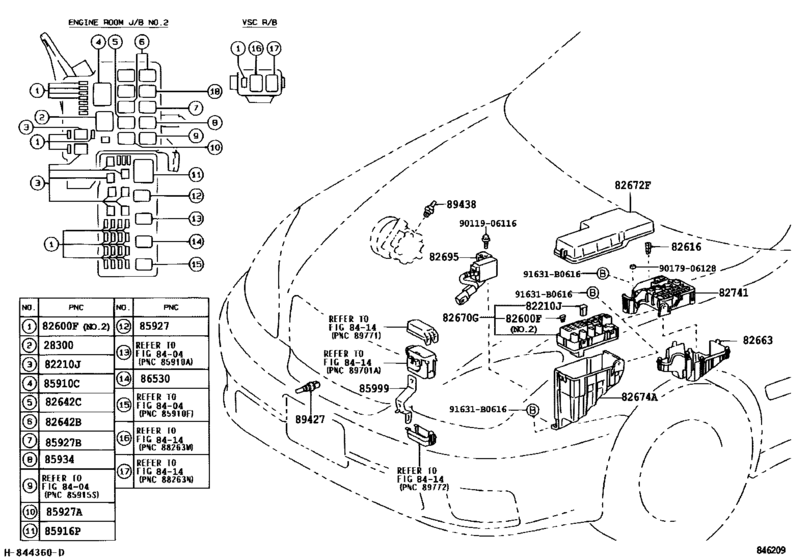

Switch & Relay & Computer ([06.2004 - ] ENGINE ROOM (0406- )) Diagram Toyota LEXUS ES
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCV31
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- Model
- ES330
- From
- 07.2003
- To
- 03.2006
- Vehicle Model
- ES330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[07.2001 - 06.2004] 1MZFE,3MZFE..MCV3# |
28300-10020 |
from US $53.76 |
||
|
82210J
|
82210J
90982-08202 Fusible Link[07.2001 - 06.2004] MCV3# 60A,TERMINAL:MALE |
90982-08202 |
US $12.54 |
||
|
82210J
|
82210J
90982-08228 Fusible Link[06.2004 -] MCV31 50A,TERMINAL:MALE |
90982-08228 |
US $10.39 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[07.2001 - 06.2004] MCV3# 120A,TERMINAL:MALE |
90982-08274 |
from US $8.60 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[07.2001 - 06.2004] MCV3# 30A,TERMINAL:FEMALE |
90982-08280 |
from US $3.88 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[07.2001 - 06.2004] MCV3# 40A,TERMINAL:FEMALE |
90982-08281 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08282 Fusible Link[07.2001 - 06.2004] MCV3# 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.88 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[07.2003 - 06.2004] MCV31 7.5A,MINI FUSE,SUMITOMO |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[07.2003 - 06.2004] MCV31 10A,MINI FUSE,SUMITOMO |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[07.2003 - 06.2004] MCV31 15A,MINI FUSE,SUMITOMO |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[07.2003 - 06.2004] MCV31 20A,MINI FUSE,SUMITOMO |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[07.2003 - 06.2004] MCV31 30A,MINI FUSE,SUMITOMO |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[07.2003 - 06.2004] MCV31 5A,MINI FUSE,SUMITOMO |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[07.2003 - 06.2004] MCV31 25A,MINI FUSE,SUMITOMO |
90080-82033 |
— | ||
|
82600F
|
82600F
90982-09007 Fusible Link[07.2003 - 06.2004] MCV31 5A,MINI FUSE,TAIHEIYO |
90982-09007 |
from US $0.55 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[07.2001 - 06.2004] MCV3# 7.5A,MINI FUSE,VSC R/B |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[07.2003 - 06.2004] MCV31 10A,MINI FUSE,TAIHEIYO |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[07.2003 - 06.2004] MCV31 15A,MINI FUSE,TAIHEIYO |
90982-09010 |
from US $1.11 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[07.2001 - 06.2004] MCV3# |
82616-20010 |
from US $2.34 |
||
|
82642B
|
82642B
90987-02027 Relay[07.2003 - 06.2004] MCV31 |
90987-02027 |
from US $47.11 |
||
|
82642C
|
82642C
90987-04004 Relay, Starter Cut[07.2001 - 06.2004] MCV3# |
90987-04004 |
from US $47.21 |
||
|
82663
|
82663
82663-33060 Cover, Relay Block, Lower[07.2001 - 06.2004] MCV3# |
82663-33060 |
from US $36.11 |
||
|
82670G
|
82670G
82720-06041 Block Assy, Engine Room Junction[07.2003 - 06.2004] MCV31 |
82720-06041 |
US $388.75 |
||
|
82672F
|
82672F
82672-33261 Cover, Junction BlockJUNCTION BLOCK [07.2003 - 06.2004] MCV31 |
82672-33261 |
from US $36.40 |
||
|
82674A
|
82674A
82674-33060 Cover, Junction Block, Lower[07.2001 - 06.2004] MCV3# |
82674-33060 |
US $67.85 |
||
|
82695
|
82695
82695-33010
Resistor, Daytime Running Light
[07.2001 - 06.2004] MCV3# |
82695-33010 |
— | ||
|
82695
|
82695
82695-33020
Resistor, Daytime Running Light
[07.2001 - 06.2004] MCV3# CANADA SPEC |
82695-33020 |
— | ||
|
82741
|
82741
82741-33010 Block, Engine Room Relay[07.2001 - 06.2004] MCV3# |
82741-33010 |
from US $97.13 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[02.2003 - 06.2004] MCV3# |
90987-04010 |
from US $47.21 |
||
|
85916P
|
85916P
90987-02025 Relay[04.2003 - 06.2004] MCV3# |
90987-02025 |
from US $49.22 |
||
|
85927
|
85927
90987-02027 Relay[07.2003 - 06.2004] MCV31 |
90987-02027 |
from US $47.11 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[07.2001 - 06.2004] MCV3# |
90987-04004 |
from US $47.21 |
||
|
85927B
|
85927B
90987-02027 Relay[07.2003 - 06.2004] MCV31 |
90987-02027 |
from US $47.11 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[07.2001 - 06.2004] MCV3# |
90987-02028 |
from US $49.22 |
||
|
86530
|
86530
90987-02027 Relay[07.2003 - 06.2004] MCV31 |
90987-02027 |
from US $47.11 |
||
|
89427
|
89427
89428-21010 Switch, Temperature Detect[07.2001 - 06.2004] MCV3# |
89428-21010 |
from US $88.82 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[07.2001 - 06.2004] MCV3# |
89438-33010 |
from US $29.78 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
9011906116
|
9011906116
90119-06116
New Genuine Part
|
90119-06116 |
— | ||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.25 |
