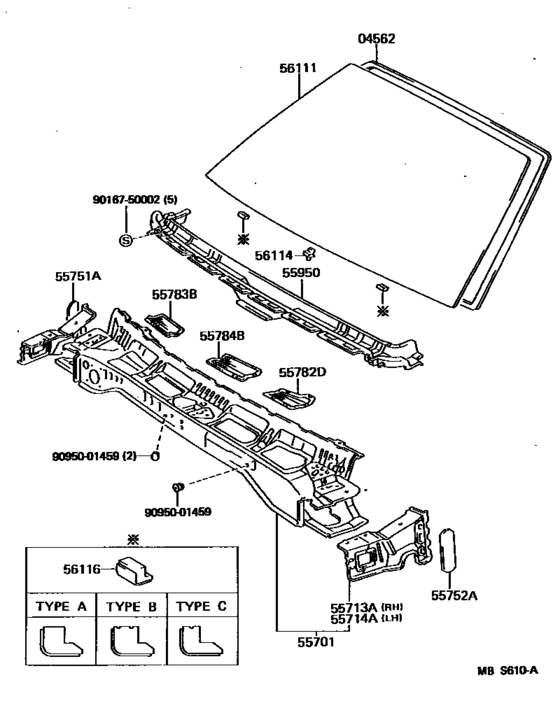

Cowl Panel & Windshield Glass ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-30040 Dam Kit, Windshield Glass[06.1989 - 07.1991] VZV21 |
04562-30040 |
from US $36.33 |
||
|
55701
|
55701
55700-32171 Panel Sub-Assy, Cowl[06.1989 - 08.1990] VZV21 |
55700-32171 |
US $615.89 |
||
| replacement | |||||
|
55701
|
55701
55700-32172 Panel Sub-Assy, Cowl[06.1989 - 08.1990] VZV21 |
55700-32172 |
US $615.89 |
||
|
55701
|
55701
55700-32172 Panel Sub-Assy, Cowl[08.1990 - 07.1991] VZV21 |
55700-32172 |
US $615.89 |
||
|
55713A
|
55713A
55713-32020 Panel, Cowl Top Side, Rh[06.1989 - 07.1991] VZV21 |
55713-32020 |
US $29.27 |
||
|
55714A
|
55714A
55714-32020 Panel, Cowl Top Side, Lh[06.1989 - 07.1991] VZV21 |
55714-32020 |
US $29.27 |
||
|
55751A
|
55751A
55751-32010 Shield, Cowl Ventilator Splash, Rh[06.1989 - 07.1991] VZV21 |
55751-32010 |
US $8.01 |
||
|
55752A
|
55752A
55751-32010 Shield, Cowl Ventilator Splash, Rh[06.1989 - 07.1991] VZV21 |
55751-32010 |
US $8.01 |
||
|
55782D
|
55782D
55782-32030 Louver, Cowl Top Ventilator, LhCOWL TOP VENTILATOR, LH [06.1989 - 07.1991] VZV21 |
55782-32030 |
US $12.52 |
||
|
55783B
|
55783B
55783-32030 Louver, Cowl Top Ventilator, Center No.1[06.1989 - 07.1991] VZV21 |
55783-32030 |
US $12.81 |
||
|
55784B
|
55784B
55784-32030 Louver, Cowl Top Ventilator, Center No.2[06.1989 - 07.1991] VZV21 |
55784-32030 |
US $12.81 |
||
|
55950
|
55950
55950-32041
Nozzle Assy, Defroster
[06.1989 - 07.1991] VZV21 |
55950-32041 |
— | ||
|
56111
|
56111
56111-32270
Glass, Windshield
[06.1989 - 07.1991] VZV21 *TL,T=5.3,BLUE |
56111-32270 |
— | ||
|
56111
|
56111
56111-32280
Glass, Windshield
[06.1989 - 07.1991] VZV21 *TL,T=5.3,BRONZE |
56111-32280 |
— | ||
|
56114
|
56114
56114-32010 Retainer, Windshield Glass[06.1989 - 07.1991] VZV21 |
56114-32010 |
US $8.59 |
||
|
56116
|
56116
56116-32040 Spacer, Windshield Glass[06.1989 - 07.1991] VZV21 TYPE A |
56116-32040 |
US $2.77 |
||
| replacement | |||||
|
56116
|
56116
56116-32060 Spacer, Windshield Glass[06.1989 - 07.1991] VZV21 TYPE A |
56116-32060 |
US $2.77 |
||
|
56116
|
56116
56116-32050 Spacer, Windshield Glass[06.1989 - 07.1991] VZV21 TYPE B |
56116-32050 |
US $3.06 |
||
| replacement | |||||
|
56116
|
56116
56116-32060 Spacer, Windshield Glass[06.1989 - 07.1991] VZV21 TYPE B |
56116-32060 |
US $2.77 |
||
|
56116
|
56116
56116-32060 Spacer, Windshield Glass[06.1989 - 07.1991] VZV21 TYPE C |
56116-32060 |
US $2.77 |
||
|
9016750002
|
9016750002
90167-50002
Direct
|
90167-50002 |
— | ||
| replacement | |||||
|
9016750002
|
9016750002
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9095001459
|
9095001459
90950-01459
New Genuine Part
|
90950-01459 |
— | ||
