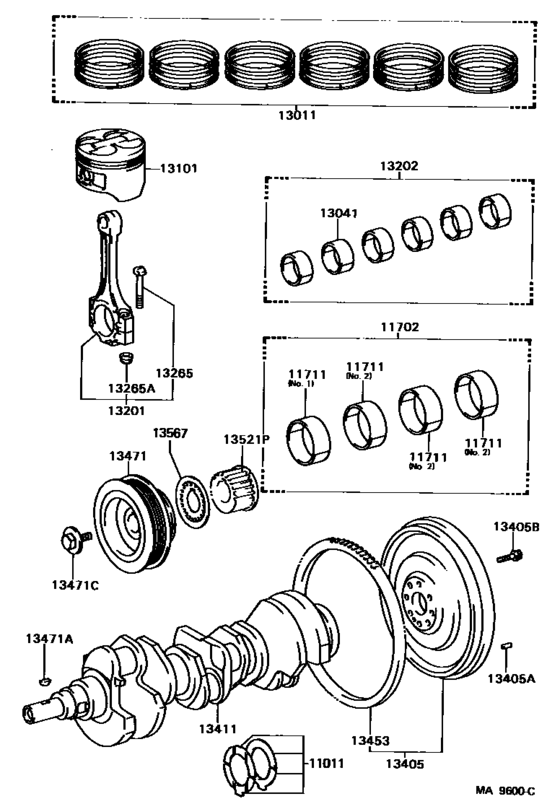

Crankshaft & Piston ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-62010 Washer Set, Crankshaft Thrust[06.1989 - 07.1991] 2VZFE..VZV21 STD |
11011-62010 |
US $32.67 |
||
|
11702
|
11702
11704-62010 Bearing Set, Crankshaft[06.1989 - 06.1991] 2VZFE..VZV21 U/S 0.25 |
11704-62010 |
US $275.18 |
||
| replacement | |||||
|
11702
|
11702
11704-62022 Bearing Set, Crankshaft[06.1989 - 06.1991] 2VZFE..VZV21 U/S 0.25 |
11704-62022 |
US $147.06 |
||
|
11702
|
11702
11704-62020 Bearing Set, Crankshaft[06.1991 -] 2VZFE..VZV21 U/S 0.25 |
11704-62020 |
US $234.42 |
||
| replacement | |||||
|
11702
|
11702
11704-62022 Bearing Set, Crankshaft[06.1991 -] 2VZFE..VZV21 U/S 0.25 |
11704-62022 |
US $147.06 |
||
|
11711
|
11711
11071-62010-01 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 1,NO.2 |
11071-62010-01 |
US $46.74 |
||
| replacement | |||||
|
11711
|
11711
11071-62020-01 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 1,NO.2 |
11071-62020-01 |
US $27.52 |
||
|
11711
|
11711
11071-62010-02 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 2,NO.2 |
11071-62010-02 |
US $46.74 |
||
| replacement | |||||
|
11711
|
11711
11071-62020-02 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 2,NO.2 |
11071-62020-02 |
US $27.52 |
||
|
11711
|
11711
11071-62010-03 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 3,NO.2 |
11071-62010-03 |
US $46.74 |
||
| replacement | |||||
|
11711
|
11711
11071-62020-03 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 3,NO.2 |
11071-62020-03 |
US $27.52 |
||
|
11711
|
11711
11071-62010-04 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 4,NO.2 |
11071-62010-04 |
US $46.74 |
||
| replacement | |||||
|
11711
|
11711
11071-62020-04 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 4,NO.2 |
11071-62020-04 |
US $27.52 |
||
|
11711
|
11711
11071-62010-05 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 5,NO.2 |
11071-62010-05 |
US $46.74 |
||
| replacement | |||||
|
11711
|
11711
11071-62020-05 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 5,NO.2 |
11071-62020-05 |
US $27.52 |
||
|
11711
|
11711
11071-62020-01 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 1,NO.2 |
11071-62020-01 |
US $27.52 |
||
|
11711
|
11711
11071-62020-02 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 2,NO.2 |
11071-62020-02 |
US $27.52 |
||
|
11711
|
11711
11071-62020-03 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 3,NO.2 |
11071-62020-03 |
US $27.52 |
||
|
11711
|
11711
11071-62020-04 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 4,NO.2 |
11071-62020-04 |
US $27.52 |
||
|
11711
|
11711
11071-62020-05 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 5,NO.2 |
11071-62020-05 |
US $27.52 |
||
|
11711
|
11711
11701-62010-01 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 1,NO.1 |
11701-62010-01 |
US $49.94 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-01 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 1,NO.1 |
11701-62022-01 |
US $47.61 |
||
|
11711
|
11711
11701-62010-02 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 2,NO.1 |
11701-62010-02 |
US $49.94 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-02 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 2,NO.1 |
11701-62022-02 |
US $47.61 |
||
|
11711
|
11711
11701-62010-03 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 3,NO.1 |
11701-62010-03 |
US $49.94 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-03 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 3,NO.1 |
11701-62022-03 |
US $47.61 |
||
|
11711
|
11711
11701-62010-04 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 4,NO.1 |
11701-62010-04 |
US $49.94 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-04 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 4,NO.1 |
11701-62022-04 |
US $47.61 |
||
|
11711
|
11711
11701-62010-05 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 5,NO.1 |
11701-62010-05 |
US $49.94 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-05 Bearing, Crankshaft[06.1989 - 05.1991] 2VZFE..VZV21 MARK 5,NO.1 |
11701-62022-05 |
US $47.61 |
||
|
11711
|
11711
11701-62020-01 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 1,NO.1 |
11701-62020-01 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-01 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 1,NO.1 |
11701-62022-01 |
US $47.61 |
||
|
11711
|
11711
11701-62020-02 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 2,NO.1 |
11701-62020-02 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-02 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 2,NO.1 |
11701-62022-02 |
US $47.61 |
||
|
11711
|
11711
11701-62020-03 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 3,NO.1 |
11701-62020-03 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-03 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 3,NO.1 |
11701-62022-03 |
US $47.61 |
||
|
11711
|
11711
11701-62020-04 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 4,NO.1 |
11701-62020-04 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-04 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 4,NO.1 |
11701-62022-04 |
US $47.61 |
||
|
11711
|
11711
11701-62020-05 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 5,NO.1 |
11701-62020-05 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-05 Bearing, Crankshaft[05.1991 - 07.1991] 2VZFE..VZV21 MARK 5,NO.1 |
11701-62022-05 |
US $47.61 |
||
|
11711
|
11711
11701-62020-06 Bearing, Crankshaft[06.1991 - 07.1991] 2VZFE..VZV21 MARK 6,NO.1 |
11701-62020-06 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-06 Bearing, Crankshaft[06.1991 - 07.1991] 2VZFE..VZV21 MARK 6,NO.1 |
11701-62022-06 |
US $47.61 |
||
|
11711
|
11711
11701-62020-07 Bearing, Crankshaft[06.1991 - 07.1991] 2VZFE..VZV21 MARK 7,NO.1 |
11701-62020-07 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11701-62022-06 Bearing, Crankshaft[06.1991 - 07.1991] 2VZFE..VZV21 MARK 7,NO.1 |
11701-62022-06 |
US $47.61 |
||
|
13011
|
13011
13011-62040 Ring Set, PistonPISTON [10.1989 - 07.1991] 2VZFE..VZV21 STD |
13011-62040 |
US $251.89 |
||
|
13011
|
13011
13013-62040 Ring Set, PistonPISTON [10.1989 - 07.1991] 2VZFE..VZV21 O/S 0.50 |
13013-62040 |
US $247.52 |
||
|
13041
|
13041
13041-62010-01 Bearing, Connecting Rod[06.1989 - 07.1991] 2VZFE..VZV21 MARK 1 |
13041-62010-01 |
US $27.96 |
||
|
13041
|
13041
13041-62010-02 Bearing, Connecting Rod[06.1989 - 07.1991] 2VZFE..VZV21 MARK 2 |
13041-62010-02 |
US $27.96 |
||
|
13041
|
13041
13041-62010-03 Bearing, Connecting Rod[06.1989 - 07.1991] 2VZFE..VZV21 MARK 3 |
13041-62010-03 |
US $27.96 |
||
|
13101
|
13101
13101-62020-01 Piston Sub-Assy, W/pinW/PIN [06.1989 - 07.1991] 2VZFE..VZV21 STD,MARK 1 |
13101-62020-01 |
US $96.10 |
||
|
13101
|
13101
13101-62020-02 Piston Sub-Assy, W/pinW/PIN [06.1989 - 07.1991] 2VZFE..VZV21 STD,MARK 2 |
13101-62020-02 |
US $96.10 |
||
|
13101
|
13101
13101-62020-03 Piston Sub-Assy, W/pinW/PIN [06.1989 - 07.1991] 2VZFE..VZV21 STD,MARK 3 |
13101-62020-03 |
US $96.10 |
||
|
13101
|
13101
13103-62020 Piston Sub-Assy, W/pinW/PIN [06.1989 - 07.1991] 2VZFE..VZV21 O/S 0.50 |
13103-62020 |
US $94.64 |
||
|
13201
|
13201
13201-69085 Rod Sub-Assy, Connecting[06.1989 - 07.1991] 2VZFE..VZV21 |
13201-69085 |
US $192.19 |
||
|
13202
|
13202
13204-62010 Bearing Set, Connecting Rod[06.1989 - 07.1991] 2VZFE..VZV21 U/S 0.25 |
13204-62010 |
US $147.06 |
||
|
13265
|
13265
13265-62010
Bolt, Connecting Rod
[06.1989 - 07.1991] 2VZFE..VZV21 |
13265-62010 |
— | ||
|
13265A
|
13265A
90179-08118 Nut, Hexagon(For Connecting Rod Bolt)[06.1989 - 07.1991] 2VZFE..VZV21 |
90179-08118 |
from US $1.31 |
||
|
13405
|
13405
13405-62020
Flywheel Sub-Assy
[06.1989 - 07.1991] 2VZFE..VZV21..5F |
13405-62020 |
— | ||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[06.1989 - 07.1991] 2VZFE..VZV21..5F L=18,OD=8 |
90250-08120 |
from US $1.07 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[06.1989 - 07.1991] 2VZFE..VZV21..5F |
90105-10138 |
US $2.88 |
||
|
13411
|
13411
13411-62901 Crankshaft[06.1989 - 07.1991] 2VZFE..VZV21 |
13411-62901 |
US $1,399.22 |
||
|
13453
|
13453
13453-74010 Gear, Flywheel Ring[06.1989 - 07.1989] 2VZFE..VZV21..5F |
13453-74010 |
US $104.83 |
||
| replacement | |||||
|
13453
|
13453
13453-74011 Gear, Flywheel Ring[06.1989 - 07.1989] 2VZFE..VZV21..5F |
13453-74011 |
from US $62.90 |
||
|
13453
|
13453
13453-74011 Gear, Flywheel Ring[07.1989 - 07.1991] 2VZFE..VZV21..5F |
13453-74011 |
from US $62.90 |
||
|
13471
|
13471
13408-62010
Pulley, Crankshaft
[06.1989 - 07.1991] 2VZFE..VZV21 |
13408-62010 |
— | ||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[06.1989 - 06.1990] 2VZFE..VZV21 |
90280-05010 |
from US $1.83 |
||
|
13471A
|
13471A
95161-20519 Key, Crankshaft(For Crankshaft Pulley Set)[06.1990 - 07.1991] 2VZFE..VZV21 |
95161-20519 |
US $1.60 |
||
|
13471C
|
13471C
90105-16031 Bolt(For Crankshaft Pulley Set)[06.1989 - 07.1991] 2VZFE..VZV21 |
90105-16031 |
US $9.61 |
||
|
13521P
|
13521P
13521-62020 Pulley, Crankshaft Timing[06.1989 - 07.1991] 2VZFE..VZV21 |
13521-62020 |
US $56.35 |
||
|
13567
|
13567
13567-62010 Guide, Timing Belt[06.1989 - 07.1991] 2VZFE..VZV21 |
13567-62010 |
US $9.09 |
||
