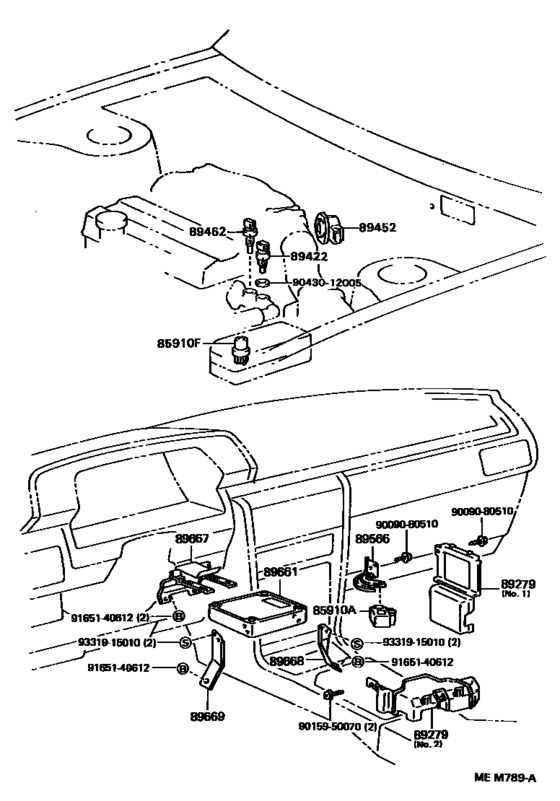

Electronic Fuel Injection System ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[06.1989 - 07.1991] VZV21 |
85910-30050 |
US $84.36 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[06.1989 - 07.1991] VZV21 |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [06.1989 - 07.1991] VZV21 |
909870200483 |
US $53.75 |
||
|
89279
|
89279
89279-32090 Cover, Engine Control Computer[06.1989 - 07.1991] VZV21 NO.1 |
89279-32090 |
US $20.68 |
||
|
89279
|
89279
89279-32110 Cover, Engine Control ComputerENGINE CONTROL COMPUTER [06.1989 - 07.1991] VZV21 NO.2 |
89279-32110 |
US $22.57 |
||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[06.1989 - 07.1991] VZV21 |
89422-20010 |
from US $36.78 |
||
|
89452
|
89452
89452-12040 Sensor, Throttle Position (For E.f.i.)[06.1989 - 07.1991] VZV21 |
89452-12040 |
US $190.08 |
||
|
89462
|
89462
89462-20020 Switch, Start Injector Time[06.1989 - 07.1991] VZV21 |
89462-20020 |
US $128.76 |
||
|
89566
|
89566
89566-32030 Bracket, Fuel Injection ComputerFUEL INJECTION COMPUTER [06.1989 - 07.1991] VZV21 |
89566-32030 |
US $10.48 |
||
|
89661
|
89661
89661-32460 Computer, Engine ControlENGINE CONTROL [06.1989 - 11.1989] VZV21..5F |
89661-32460 |
US $1,790.88 |
||
| replacement | |||||
|
89661
|
89661
89661-32561 Computer, Engine ControlENGINE CONTROL [06.1989 - 11.1989] VZV21..5F |
89661-32561 |
US $1,790.88 |
||
|
89661
|
89661
89661-32480 Computer, Engine ControlENGINE CONTROL [06.1989 - 11.1989] VZV21..5F CALIFORNIA SPEC |
89661-32480 |
US $1,790.88 |
||
| replacement | |||||
|
89661
|
89661
89661-32581 Computer, Engine ControlENGINE CONTROL [06.1989 - 11.1989] VZV21..5F CALIFORNIA SPEC |
89661-32581 |
US $1,790.88 |
||
|
89661
|
89661
89661-32560 Computer, Engine ControlENGINE CONTROL [11.1989 - 10.1990] VZV21..5F |
89661-32560 |
US $1,790.88 |
||
| replacement | |||||
|
89661
|
89661
89661-32561 Computer, Engine ControlENGINE CONTROL [11.1989 - 10.1990] VZV21..5F |
89661-32561 |
US $1,790.88 |
||
|
89661
|
89661
89661-32561 Computer, Engine ControlENGINE CONTROL [10.1990 - 07.1991] VZV21..5F |
89661-32561 |
US $1,790.88 |
||
|
89661
|
89661
89661-32580 Computer, Engine ControlENGINE CONTROL [11.1989 - 10.1990] VZV21..5F CALIFORNIA SPEC |
89661-32580 |
US $1,790.88 |
||
| replacement | |||||
|
89661
|
89661
89661-32581 Computer, Engine ControlENGINE CONTROL [11.1989 - 10.1990] VZV21..5F CALIFORNIA SPEC |
89661-32581 |
US $1,790.88 |
||
|
89661
|
89661
89661-32581 Computer, Engine ControlENGINE CONTROL [10.1990 - 07.1991] VZV21..5F CALIFORNIA SPEC |
89661-32581 |
US $1,790.88 |
||
|
89667
|
89667
89667-32020 Bracket, Preheating Timer, No.1[06.1989 - 07.1991] VZV21 |
89667-32020 |
US $14.71 |
||
|
89668
|
89668
89668-32030
Bracket, Engine Control Computer, No.2
[06.1989 - 07.1991] VZV21 |
89668-32030 |
— | ||
|
89669
|
89669
89669-32040 Bracket, Engine Control Computer, No.3ENGINE CONTROL COMPUTER, NO.3 [06.1989 - 07.1991] VZV21 |
89669-32040 |
US $8.59 |
||
|
9009080510
|
9009080510
90090-80510
New Genuine Part
|
90090-80510 |
— | ||
|
9015950070
|
9015950070
90159-50070 New Genuine Part |
90159-50070 |
US $1.75 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
