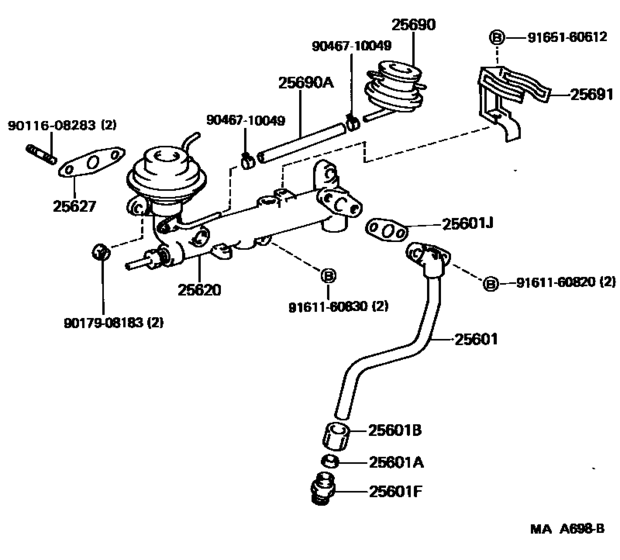

Exhaust Gas Recirculation System ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-62010 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [06.1989 - 07.1991] 2VZFE..VZV21 |
25601-62010 |
US $85.90 |
||
|
25601A
|
25601A
90410-16001
Sleeve, Ball, Egr Pipe, No.1
[06.1989 - 07.1991] 2VZFE..VZV21 |
90410-16001 |
— | ||
|
25601B
|
25601B
90402-22012 Nut, Union, Egr Pipe, No.1UNION, EGR PIPE, NO.1 [06.1989 - 07.1991] 2VZFE..VZV21 |
90402-22012 |
US $9.61 |
||
|
25601F
|
25601F
90404-22003 Union(For Exhaust Gas Recirculation Outlet)[06.1989 - 07.1991] 2VZFE..VZV21 |
90404-22003 |
US $25.33 |
||
|
25601J
|
25601J
25627-62010 Gasket(For Egr Pipe, No.1)NO.1) [06.1989 - 07.1991] 2VZFE..VZV21 |
25627-62010 |
US $4.95 |
||
|
25620
|
25620
25620-62010 Valve Assy, EgrEGR [06.1989 - 07.1991] 2VZFE..VZV21..5F |
25620-62010 |
US $388.75 |
||
|
25627
|
25627
25627-62010 Gasket(For Egr Pipe, No.1)NO.1) [06.1989 - 07.1991] 2VZFE..VZV21 |
25627-62010 |
US $4.95 |
||
|
25690
|
25690
25870-62010
Modulator Assy, Egr Vacuum
[06.1989 - 07.1991] 2VZFE..VZV21 |
25870-62010 |
— | ||
|
25690A
|
25690A
25695-62010 Hose(For Egr Vacuum Modulator)[06.1989 - 07.1991] 2VZFE..VZV21 |
25695-62010 |
US $10.77 |
||
|
25691
|
25691
25691-62010 Bracket, Egr Vacuum ModulatorEGR VACUUM MODULATOR [06.1989 - 07.1991] 2VZFE..VZV21 |
25691-62010 |
US $8.30 |
||
|
9011608283
|
9011608283
90116-08283 New Genuine Part |
90116-08283 |
US $2.33 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $2.56 |
||
|
9046710049
|
9046710049
90467-10049
Clamp Or Clip(For Fuel Hose Set)
|
90467-10049 |
— | ||
| replacement | |||||
|
9046710049
|
9046710049
90467-10149 Clip, No.2(For Idle-Up Hose) |
90467-10149 |
from US $2.63 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
