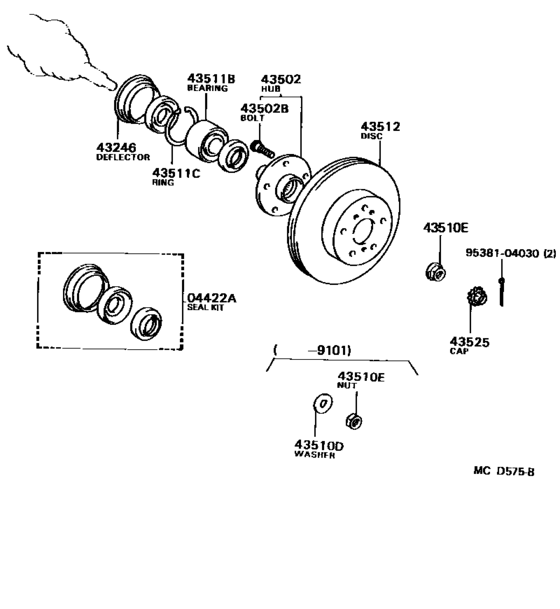

Front Axle Hub ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04422A
|
04422A
04422-32010 Seal Kit, Rear Axle Oil[06.1989 - 07.1991] VZV21 |
04422-32010 |
US $37.24 |
||
|
43246
|
43246
43246-32011
Deflector, Rear Wheel Bearing Dust, No.1
[06.1989 - 07.1991] VZV21 |
43246-32011 |
— | ||
|
43502
|
43502
43503-32010 Hub Sub-Assy, Front Axle[06.1989 - 08.1989] VZV21 |
43503-32010 |
US $190.74 |
||
| replacement | |||||
|
43502
|
43502
43503-32020
Hub Sub-Assy, Front Axle
[06.1989 - 08.1989] VZV21 |
43503-32020 |
— | ||
|
43502
|
43502
43503-32020
Hub Sub-Assy, Front Axle
[08.1989 - 07.1991] VZV21 |
43503-32020 |
— | ||
|
43502B
|
43502B
90942-02049 Bolt, Hub[06.1989 - 07.1991] VZV21 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502B
|
43502B
90942-02082 Bolt, Hub[06.1989 - 07.1991] VZV21 |
90942-02082 |
from US $2.46 |
||
|
43510D
|
43510D
90201-20012 Washer, Plate (For Rear Axle Shaft)[06.1989 - 01.1991] VZV21 |
90201-20012 |
US $5.44 |
||
|
43510E
|
43510E
90170-19001 Nut (For Rear Axle Shaft)[06.1989 - 01.1991] VZV21 |
90170-19001 |
US $5.12 |
||
|
43510E
|
43510E
90179-22020 Nut (For Rear Axle Shaft)[01.1991 - 07.1991] VZV21 |
90179-22020 |
US $4.96 |
||
|
43511B
|
43511B
90369-38003 Bearing[06.1989 - 07.1991] VZV21 |
90369-38003 |
from US $78.66 |
||
|
43511C
|
43511C
90521-79002 Ring, Snap (For Axle Shaft)[06.1989 - 07.1991] VZV21 OD=79 |
90521-79002 |
US $2.24 |
||
|
43511C
|
43511C
90521-79003 Ring, Hole Snap (For Front Axle Hub)[06.1989 - 07.1991] VZV21 T=2.50-2.57 |
90521-79003 |
US $3.35 |
||
|
43511C
|
43511C
90521-79004 Ring, Hole Snap (For Front Axle Hub)[06.1989 - 07.1991] VZV21 T=2.57-2.62 |
90521-79004 |
US $3.35 |
||
|
43511C
|
43511C
90521-79005 Ring, Hole Snap (For Front Axle Hub)[06.1989 - 07.1991] VZV21 T=2.62-2.67 |
90521-79005 |
US $3.35 |
||
|
43511C
|
43511C
90521-79006 Ring, Hole Snap (For Front Axle Hub)[06.1989 - 07.1991] VZV21 T=2.67-2.72 |
90521-79006 |
US $3.35 |
||
|
43512
|
43512
43512-32210 Disc, FrontFRONT [06.1989 - 09.1990] VZV21 |
43512-32210 |
US $184.91 |
||
| replacement | |||||
|
43512
|
43512
43512-32211 Disc, Front[06.1989 - 09.1990] VZV21 |
43512-32211 |
US $184.91 |
||
|
43512
|
43512
43517-32020 Disc, FrontFRONT [09.1990 - 07.1991] VZV21 |
43517-32020 |
US $196.56 |
||
| replacement | |||||
|
43512
|
43512
43512-32211 Disc, Front[09.1990 - 07.1991] VZV21 |
43512-32211 |
US $184.91 |
||
|
43525
|
43525
43525-16010 Cap, Rear Wheel Adjusting Lock[06.1989 - 01.1991] VZV21 |
43525-16010 |
from US $1.93 |
||
|
43525
|
43525
43525-20030 Cap, Front Wheel Adjusting Lock[01.1991 - 07.1991] VZV21 |
43525-20030 |
from US $2.91 |
||
|
9538104030
|
9538104030
95381-04030 PIN |
95381-04030 |
from US $0.78 |
||
