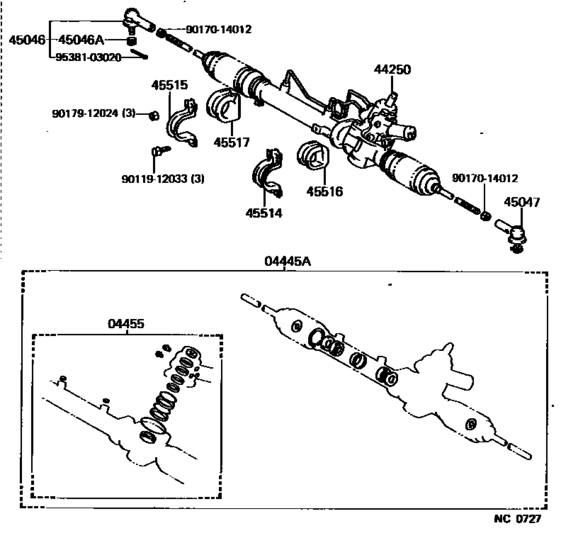

Front Steering Gear & Link ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-32041 Gasket Kit, Power Steering Gear(For Rack & Pinion)[06.1989 - 07.1991] VZV21 |
04445-32041 |
US $84.45 |
||
|
04455
|
04455
04455-32031 Gasket Kit, Power Steering Control Valve Overhole[06.1989 - 07.1991] VZV21 |
04455-32031 |
US $42.08 |
||
|
44250
|
44250
44250-32040 Gear Assy, Power Steering(For Rack & Pinion)[06.1989 - 05.1990] VZV21 |
44250-32040 |
US $1,834.56 |
||
| replacements | |||||
|
44250
|
44250
45514-32122 Bracket, Steering Rack Housing, No.1[06.1989 - 05.1990] VZV21 |
45514-32122 |
US $13.40 |
||
|
44250
|
44250
44250-32042 Gear Assy, Power Steering(For Rack & Pinion)[06.1989 - 05.1990] VZV21 |
44250-32042 |
US $1,834.56 |
||
|
44250
|
44250
45517-32050
Grommet, Steering Rack Housing, No.2
[06.1989 - 05.1990] VZV21 |
45517-32050 |
— | ||
|
44250
|
44250
45516-32040
Grommet, Steering Rack Housing, No.1
[06.1989 - 05.1990] VZV21 |
45516-32040 |
— | ||
|
44250
|
44250
45517-32060
Grommet, Steering Rack Housing, No.2
[06.1989 - 05.1990] VZV21 |
45517-32060 |
— | ||
|
44250
|
44250
44250-32041 Gear Assy, Power Steering(For Rack & Pinion)[05.1990 - 07.1990] VZV21 |
44250-32041 |
US $1,834.56 |
||
| replacements | |||||
|
44250
|
44250
45514-32122 Bracket, Steering Rack Housing, No.1[05.1990 - 07.1990] VZV21 |
45514-32122 |
US $13.40 |
||
|
44250
|
44250
44250-32042 Gear Assy, Power Steering(For Rack & Pinion)[05.1990 - 07.1990] VZV21 |
44250-32042 |
US $1,834.56 |
||
|
44250
|
44250
45516-32040
Grommet, Steering Rack Housing, No.1
[05.1990 - 07.1990] VZV21 |
45516-32040 |
— | ||
|
44250
|
44250
45517-32060
Grommet, Steering Rack Housing, No.2
[05.1990 - 07.1990] VZV21 |
45517-32060 |
— | ||
|
44250
|
44250
44250-32042 Gear Assy, Power Steering(For Rack & Pinion)[07.1990 - 07.1991] VZV21 |
44250-32042 |
US $1,834.56 |
||
|
45046
|
45046
45046-19175 End Sub-Assy, Tie Rod[06.1989 - 07.1991] VZV21 |
45046-19175 |
from US $46.06 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[06.1989 - 07.1991] VZV21 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19175 End Sub-Assy, Tie Rod[06.1989 - 07.1991] VZV21 |
45046-19175 |
from US $46.06 |
||
|
45514
|
45514
45514-32120 Bracket, Steering Rack Housing, No.1STEERING RACK HOUSING, NO.1 [06.1989 - 07.1990] VZV21 |
45514-32120 |
US $13.40 |
||
|
45514
|
45514
45514-32121 Bracket, Steering Rack Housing, No.1[07.1990 - 09.1990] VZV21 |
45514-32121 |
US $13.40 |
||
| replacement | |||||
|
45514
|
45514
45514-32122 Bracket, Steering Rack Housing, No.1[07.1990 - 09.1990] VZV21 |
45514-32122 |
US $13.40 |
||
|
45514
|
45514
45514-32122 Bracket, Steering Rack Housing, No.1[09.1990 - 07.1991] VZV21 |
45514-32122 |
US $13.40 |
||
|
45515
|
45515
45515-32100 Bracket, Steering Rack Housing, No.2STEERING RACK HOUSING, NO.2 [06.1989 - 07.1991] VZV21 |
45515-32100 |
US $13.40 |
||
|
45516
|
45516
45516-32020
Grommet, Steering Rack Housing, No.1
[06.1989 - 07.1990] VZV21 |
45516-32020 |
— | ||
|
45516
|
45516
45516-32040
Grommet, Steering Rack Housing, No.1
[07.1990 - 07.1991] VZV21 |
45516-32040 |
— | ||
|
45517
|
45517
45517-32030
Grommet, Steering Rack Housing, No.2
[06.1989 - 05.1990] VZV21 |
45517-32030 |
— | ||
|
45517
|
45517
45517-32050
Grommet, Steering Rack Housing, No.2
[05.1990 - 07.1990] VZV21 |
45517-32050 |
— | ||
|
45517
|
45517
45517-32060
Grommet, Steering Rack Housing, No.2
[07.1990 - 07.1991] VZV21 |
45517-32060 |
— | ||
|
9011912033
|
9011912033
90119-12033 New Genuine Part |
90119-12033 |
US $4.66 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.17 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
