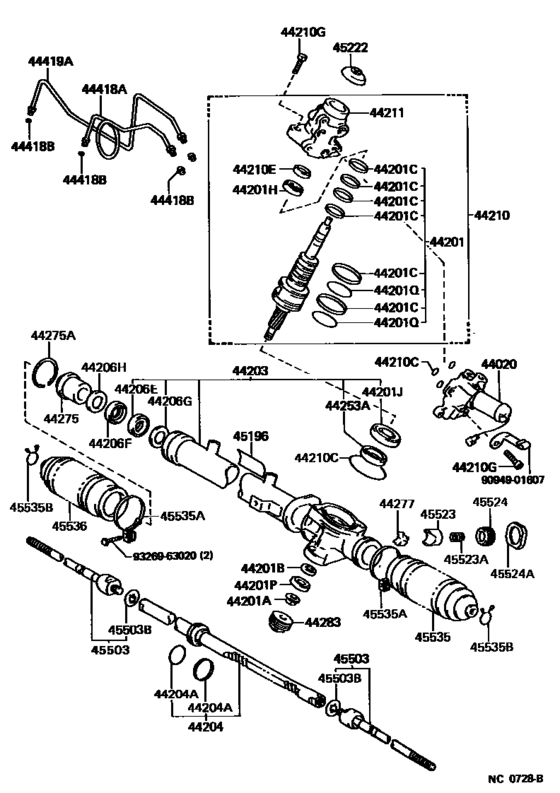

Front Steering Gear & Link ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44020
|
44020
44020-32020 Valve Assy, Pressure Control W/solenoid ValvePRESSURE CONTROL W/SOLENOID VALVE [06.1989 - 07.1991] VZV21 |
44020-32020 |
US $643.55 |
||
|
44201
|
44201
44201-32060 Valve Sub-Assy, Power Steering Control[06.1989 - 07.1991] VZV21 |
44201-32060 |
US $297.02 |
||
| replacement | |||||
|
44201
|
44201
44201-32061 Valve Sub-Assy, Power Steering Control[06.1989 - 07.1991] VZV21 |
44201-32061 |
US $297.02 |
||
|
44201A
|
44201A
94184-61200 Nut, Lock(For Power Steering Control Valve)[06.1989 - 07.1991] VZV21 |
94184-61200 |
from US $1.13 |
||
|
44201B
|
44201B
90560-12030 Spacer(For Power Steering Control Valve)[06.1989 - 07.1991] VZV21 |
90560-12030 |
US $4.37 |
||
|
44201C
|
44201C
90562-33005
Ring(For Power Steering Control Valve)
[06.1989 - 07.1991] VZV21 OD=36.4 |
90562-33005 |
— | ||
| replacement | |||||
|
44201C
|
44201C
90562-33008 Ring(For Power Steering Control Valve)[06.1989 - 07.1991] VZV21 OD=36.4 |
90562-33008 |
from US $1.92 |
||
|
44201C
|
44201C
90562-50001 Ring(For Power Steering Control Valve)[06.1989 - 07.1991] VZV21 OD=52.4 |
90562-50001 |
US $2.24 |
||
|
44201H
|
44201H
90363-19002 Bearing(For Power Steering Control Valve)[06.1989 - 07.1991] VZV21 |
90363-19002 |
US $21.67 |
||
|
44201J
|
44201J
90363-30054 Bearing(For Power Steering Control Valve Center)[06.1989 - 07.1991] VZV21 |
90363-30054 |
US $21.14 |
||
|
44201P
|
44201P
90363-12008 Bearing(For Power Steering Control Valve Lower)[06.1989 - 07.1991] VZV21 |
90363-12008 |
US $12.58 |
||
|
44201Q
|
44201Q
90301-45002 Ring(For Power Steering Control Valve)[06.1989 - 07.1991] VZV21 |
90301-45002 |
US $4.32 |
||
|
44203
|
44203
44203-32080 Housing Sub-Assy, Power Steering Rack[06.1989 - 05.1990] VZV21 |
44203-32080 |
US $527.07 |
||
| replacements | |||||
|
44203
|
44203
44203-32083 Housing Sub-assy, Power Steering Rack[06.1989 - 05.1990] VZV21 |
44203-32083 |
US $527.07 |
||
|
44203
|
44203
45514-32122 Bracket, Steering Rack Housing, No.1[06.1989 - 05.1990] VZV21 |
45514-32122 |
US $13.40 |
||
|
44203
|
44203
45517-32050
Grommet, Steering Rack Housing, No.2
[06.1989 - 05.1990] VZV21 |
45517-32050 |
— | ||
|
44203
|
44203
45516-32040
Grommet, Steering Rack Housing, No.1
[06.1989 - 05.1990] VZV21 |
45516-32040 |
— | ||
|
44203
|
44203
45517-32060
Grommet, Steering Rack Housing, No.2
[06.1989 - 05.1990] VZV21 |
45517-32060 |
— | ||
|
44203
|
44203
44277-20040
Seat, Rack Guide
[06.1989 - 05.1990] VZV21 |
44277-20040 |
— | ||
|
44203
|
44203
45523-20040 Guide, Rack(For Steering Gear)[06.1989 - 05.1990] VZV21 |
45523-20040 |
US $17.82 |
||
|
44203
|
44203
45524-20030
Cap, Rack Housing
[06.1989 - 05.1990] VZV21 |
45524-20030 |
— | ||
|
44203
|
44203
44203-32081 Housing Sub-Assy, Power Steering Rack[05.1990 - 07.1990] VZV21 |
44203-32081 |
US $527.07 |
||
| replacements | |||||
|
44203
|
44203
44203-32083 Housing Sub-assy, Power Steering Rack[05.1990 - 07.1990] VZV21 |
44203-32083 |
US $527.07 |
||
|
44203
|
44203
45514-32122 Bracket, Steering Rack Housing, No.1[05.1990 - 07.1990] VZV21 |
45514-32122 |
US $13.40 |
||
|
44203
|
44203
45516-32040
Grommet, Steering Rack Housing, No.1
[05.1990 - 07.1990] VZV21 |
45516-32040 |
— | ||
|
44203
|
44203
45517-32060
Grommet, Steering Rack Housing, No.2
[05.1990 - 07.1990] VZV21 |
45517-32060 |
— | ||
|
44203
|
44203
44277-20040
Seat, Rack Guide
[05.1990 - 07.1990] VZV21 |
44277-20040 |
— | ||
|
44203
|
44203
45523-20040 Guide, Rack(For Steering Gear)[05.1990 - 07.1990] VZV21 |
45523-20040 |
US $17.82 |
||
|
44203
|
44203
45524-20030
Cap, Rack Housing
[05.1990 - 07.1990] VZV21 |
45524-20030 |
— | ||
|
44203
|
44203
44203-32082 Housing Sub-Assy, Power Steering Rack[07.1990 - 07.1991] VZV21 |
44203-32082 |
US $527.07 |
||
| replacements | |||||
|
44203
|
44203
44203-32083 Housing Sub-assy, Power Steering Rack[07.1990 - 07.1991] VZV21 |
44203-32083 |
US $527.07 |
||
|
44203
|
44203
44277-20040
Seat, Rack Guide
[07.1990 - 07.1991] VZV21 |
44277-20040 |
— | ||
|
44203
|
44203
45523-20040 Guide, Rack(For Steering Gear)[07.1990 - 07.1991] VZV21 |
45523-20040 |
US $17.82 |
||
|
44203
|
44203
45524-20030
Cap, Rack Housing
[07.1990 - 07.1991] VZV21 |
45524-20030 |
— | ||
|
44204
|
44204
44204-20100
Rack Sub-Assy, Power Steering
[06.1989 - 07.1991] VZV21 |
44204-20100 |
— | ||
|
44204A
|
44204A
90301-36004 Ring(For Rack Steering Piston)[06.1989 - 07.1991] VZV21 INNER |
90301-36004 |
from US $3.84 |
||
|
44204A
|
44204A
90562-40001 Ring(For Rack Steering Piston)[06.1989 - 12.1989] VZV21 OUTER |
90562-40001 |
US $1.89 |
||
|
44204A
|
44204A
90562-40002 Ring(For Rack Steering Piston)[12.1989 - 07.1991] VZV21 OUTER |
90562-40002 |
US $1.75 |
||
| replacement | |||||
|
44204A
|
44204A
90560-40008 Ring(For Rack Steering Piston)[12.1989 - 07.1991] VZV21 OUTER |
90560-40008 |
US $1.02 |
||
|
44206E
|
44206E
90310-25013 Seal, Oil, No.1(For Power Steering Cylinder Tube)[06.1989 - 07.1991] VZV21 |
90310-25013 |
from US $3.04 |
||
|
44206F
|
44206F
90310-25011 Seal, Oil, No.2(For Power Steering Cylinder Tube)[06.1989 - 07.1991] VZV21 |
90310-25011 |
US $2.77 |
||
| replacement | |||||
|
44206F
|
44206F
90310-25013 Seal, Oil, No.1(For Power Steering Cylinder Tube)[06.1989 - 07.1991] VZV21 |
90310-25013 |
from US $3.04 |
||
|
44206G
|
44206G
90560-26009 Spacer, No.1(For Power Steering Cylinder Tube)[06.1989 - 07.1991] VZV21 |
90560-26009 |
US $3.20 |
||
|
44206H
|
44206H
90560-26008 Spacer, No.2(For Power Steering Cylinder Tube)[06.1989 - 02.1990] VZV21 |
90560-26008 |
US $5.53 |
||
|
44206H
|
44206H
90560-26009 Spacer, No.1(For Power Steering Cylinder Tube)[02.1990 - 07.1991] VZV21 |
90560-26009 |
US $3.20 |
||
|
44210
|
44210
44210-32040 Valve Assy, Power Steering Control[06.1989 - 07.1991] VZV21 |
44210-32040 |
US $564.93 |
||
| replacement | |||||
|
44210
|
44210
44210-32041 Valve Assy, Power Steering Control[06.1989 - 07.1991] VZV21 |
44210-32041 |
US $564.93 |
||
|
44210C
|
44210C
90301-11009 Ring, O (For Front Power Take-Off Shaft)[06.1989 - 07.1991] VZV21 OD=16.6,ID=11.8 |
90301-11009 |
from US $1.93 |
||
|
44210C
|
44210C
90301-57003 Ring, O(For Power Steering Control Valve)[06.1989 - 07.1991] VZV21 ID=57.5 |
90301-57003 |
from US $3.84 |
||
|
44210E
|
44210E
90311-19006 Seal, Oil(For Power Steering Control Valve)[06.1989 - 07.1991] VZV21 |
90311-19006 |
from US $3.04 |
||
|
44210G
|
44210G
90110-08012 Bolt(For Power Steering Pressure Control Valve)[06.1989 - 07.1991] VZV21 |
90110-08012 |
US $0.96 |
||
|
44211
|
44211
44211-32070 Housing, Control ValveCONTROL VALVE [06.1989 - 07.1991] VZV21 |
44211-32070 |
US $192.19 |
||
|
44253A
|
44253A
90310-30005
Seal, Oil(For Power Steering Rack Housing)
[06.1989 - 07.1991] VZV21 |
90310-30005 |
— | ||
| replacement | |||||
|
44253A
|
44253A
90310-30013 Seal, Oil, No.2(For Power Steering Cylinder Tube)[06.1989 - 07.1991] VZV21 |
90310-30013 |
from US $3.04 |
||
|
44275
|
44275
44275-32011 Stopper, Cylinder End[06.1989 - 02.1990] VZV21 |
44275-32011 |
US $22.86 |
||
| replacements | |||||
|
44275
|
44275
44275-32020 Stopper, Cylinder End[06.1989 - 02.1990] VZV21 |
44275-32020 |
US $26.64 |
||
|
44275
|
44275
90560-26009 Spacer, No.1(For Power Steering Cylinder Tube)[06.1989 - 02.1990] VZV21 |
90560-26009 |
US $3.20 |
||
|
44275
|
44275
44275-32020 Stopper, Cylinder End[02.1990 - 07.1991] VZV21 |
44275-32020 |
US $26.64 |
||
|
44275A
|
44275A
90521-53002 Ring, Hole Snap(For Cylinder End Stopper)[06.1989 - 07.1991] VZV21 |
90521-53002 |
US $3.68 |
||
|
44277
|
44277
44277-24010 Seat, Rack Guide[06.1989 - 07.1991] VZV21 |
44277-24010 |
US $8.59 |
||
|
44283
|
44283
44283-12010 Cap, Power Steering Rack Housing[06.1989 - 07.1991] VZV21 |
44283-12010 |
US $10.83 |
||
|
44418A
|
44418A
44418-32040 Tube, Steering Right Turn PressureSTEERING RIGHT TURN PRESSURE [06.1989 - 07.1991] VZV21 |
44418-32040 |
US $19.80 |
||
|
44418B
|
44418B
90410-04003 Seat, Union(For Power Steering Control Valve)[06.1989 - 07.1991] VZV21 HOUSING SIDE |
90410-04003 |
US $2.72 |
||
|
44418B
|
44418B
96390-71200 Seat, Union(For Steering Turn Pressure Tube)[06.1989 - 07.1991] VZV21 CONTROL VALVE SIDE |
96390-71200 |
US $1.60 |
||
|
44419A
|
44419A
44419-32040 Tube, Steering Left Turn PressureSTEERING LEFT TURN PRESSURE [06.1989 - 07.1991] VZV21 |
44419-32040 |
US $17.33 |
||
|
45196
|
45196
45196-50010 Label, Steering Shaft Installation CautionSTEERING SHAFT INSTALLATION CAUTION [06.1989 - 11.1989] VZV21 |
45196-50010 |
US $3.49 |
||
|
45196
|
45196
45196-50020 Label, Steering Shaft Installation Caution[11.1989 - 07.1991] VZV21 |
45196-50020 |
US $3.93 |
||
|
45222
|
45222
45222-32020
Cover, Dust(For Power Steering Gear)
[06.1989 - 07.1991] VZV21 |
45222-32020 |
— | ||
|
45503
|
45503
45503-39025 End Sub-Assy, Steering Rack[06.1989 - 07.1991] VZV21 |
45503-39025 |
from US $96.10 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[06.1989 - 07.1991] VZV21 OD=37 |
90214-14002 |
from US $1.33 |
||
|
45523
|
45523
45523-24010 Guide, Rack(For Power Steering)[06.1989 - 07.1991] VZV21 |
45523-24010 |
US $8.59 |
||
| replacements | |||||
|
45523
|
45523
44277-20040
Seat, Rack Guide
[06.1989 - 07.1991] VZV21 |
44277-20040 |
— | ||
|
45523
|
45523
45523-20040 Guide, Rack(For Steering Gear)[06.1989 - 07.1991] VZV21 |
45523-20040 |
US $17.82 |
||
|
45523
|
45523
45524-50010 Cap, Rack Housing[06.1989 - 07.1991] VZV21 |
45524-50010 |
US $8.74 |
||
|
45523
|
45523
90501-23007 Spring(For Power Steering Rack Guide)[06.1989 - 07.1991] VZV21 |
90501-23007 |
from US $1.49 |
||
|
45523
|
45523
90501-29036 Spring(For Steering Gear Rack Guide)[06.1989 - 07.1991] VZV21 |
90501-29036 |
US $3.64 |
||
|
45523A
|
45523A
90501-23023 Spring(For Steering Gear Rack Guide)[06.1989 - 07.1991] VZV21 |
90501-23023 |
US $3.20 |
||
| replacement | |||||
|
45523A
|
45523A
90501-29016 Spring(For Steering Gear Rack Guide)[06.1989 - 07.1991] VZV21 |
90501-29016 |
US $6.99 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[06.1989 - 07.1991] VZV21 |
45524-16010 |
US $8.91 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[06.1989 - 07.1991] VZV21 |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-20050 Boot, Steering Rack No.1(For Power Steering)[06.1989 - 07.1991] VZV21 |
45535-20050 |
US $32.22 |
||
|
45535A
|
45535A
90461-10709 Clamp(For Power Steering Rack Boot)[06.1989 - 07.1991] VZV21 BOOT NO.2 |
90461-10709 |
US $4.32 |
||
|
45535A
|
45535A
90949-01082 Clamp(For Power Steering Rack Boot)[06.1989 - 07.1991] VZV21 BOOT NO.1 |
90949-01082 |
US $4.96 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[06.1989 - 07.1991] VZV21 |
90467-18003 |
from US $1.92 |
||
|
45536
|
45536
45535-32030 Boot, Steering Rack No.2(For Power Steering)[06.1989 - 07.1991] VZV21 |
45535-32030 |
US $30.86 |
||
|
9094901607
|
9094901607
90949-01607 New Genuine Part |
90949-01607 |
US $4.95 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.76 |
||
