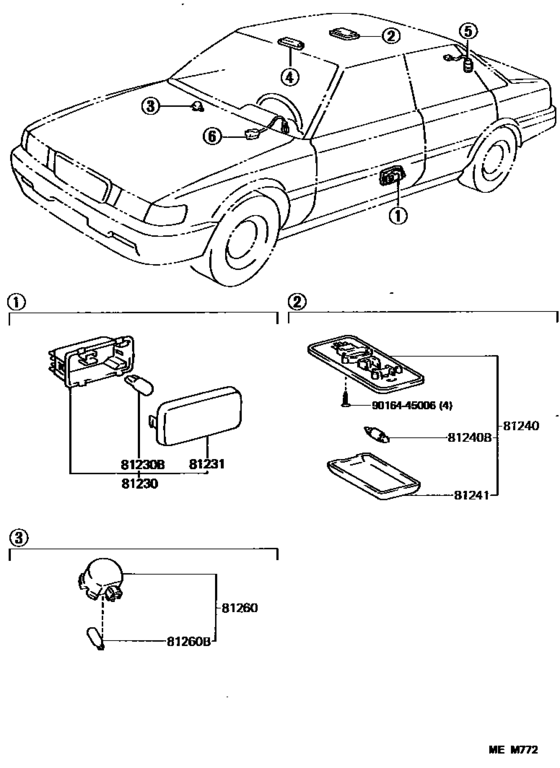

Interior Lamp ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81230
|
81230
81230-50010 Lamp Assy, Courtesy[06.1989 - 07.1991] VZV21 |
81230-50010 |
US $21.55 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[06.1989 - 07.1991] VZV21 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81231
|
81231
81231-50010 Lens, Courtesy Lamp[06.1989 - 07.1991] VZV21 |
81231-50010 |
from US $6.40 |
||
|
81240
|
81240
81240-24020-02 Lamp Assy, Room, No.1[06.1989 - 10.1989] VZV21 MAROON,TRIM3# |
81240-24020-02 |
US $45.72 |
||
| replacement | |||||
|
81240
|
81240
81240-24020-C0 Lamp Assy, Room, No.1[06.1989 - 10.1989] VZV21 MAROON,TRIM3# |
81240-24020-C0 |
US $45.72 |
||
|
81240
|
81240
81240-24020-04 Lamp Assy, Room, No.1[06.1989 - 10.1989] VZV21 LIGHT BLUE,TRIM8# |
81240-24020-04 |
US $45.72 |
||
| replacement | |||||
|
81240
|
81240
81240-32020-B6 Lamp Assy, Room, No.1[06.1989 - 10.1989] VZV21 LIGHT BLUE,TRIM8# |
81240-32020-B6 |
from US $38.90 |
||
|
81240
|
81240
81240-24020-18 Lamp Assy, Room, No.1[06.1989 - 10.1989] VZV21 IVORY,TRIM0# |
81240-24020-18 |
US $45.72 |
||
| replacement | |||||
|
81240
|
81240
81240-24020-C0 Lamp Assy, Room, No.1[06.1989 - 10.1989] VZV21 IVORY,TRIM0# |
81240-24020-C0 |
US $45.72 |
||
|
81240
|
81240
81240-24020-23 Lamp Assy, Room, No.1[06.1989 - 10.1989] VZV21 LIGHT GRAY,TRIM1# |
81240-24020-23 |
US $45.72 |
||
| replacement | |||||
|
81240
|
81240
81240-24020-C0 Lamp Assy, Room, No.1[06.1989 - 10.1989] VZV21 LIGHT GRAY,TRIM1# |
81240-24020-C0 |
US $45.72 |
||
|
81240
|
81240
81240-32020-02 Lamp Assy, Room, No.1[10.1989 - 07.1991] VZV21 MAROON,TRIM3# |
81240-32020-02 |
US $57 |
||
| replacement | |||||
|
81240
|
81240
81240-32020-B6 Lamp Assy, Room, No.1[10.1989 - 07.1991] VZV21 MAROON,TRIM3# |
81240-32020-B6 |
from US $38.90 |
||
|
81240
|
81240
81240-32020-03 Lamp Assy, Room, No.1[10.1989 - 07.1991] VZV21 LIGHT GRAY,TRIM1# |
81240-32020-03 |
US $57 |
||
| replacement | |||||
|
81240
|
81240
81240-32020-B6 Lamp Assy, Room, No.1[10.1989 - 07.1991] VZV21 LIGHT GRAY,TRIM1# |
81240-32020-B6 |
from US $38.90 |
||
|
81240
|
81240
81240-32020-04 Lamp Assy, Room, No.1[10.1989 - 07.1991] VZV21 LIGHT BLUE,TRIM8# |
81240-32020-04 |
US $57 |
||
| replacement | |||||
|
81240
|
81240
81240-32020-B6 Lamp Assy, Room, No.1[10.1989 - 07.1991] VZV21 LIGHT BLUE,TRIM8# |
81240-32020-B6 |
from US $38.90 |
||
|
81240
|
81240
81240-32020-08 Lamp Assy, Room, No.1[10.1989 - 07.1991] VZV21 IVORY,TRIM0# |
81240-32020-08 |
US $57 |
||
| replacement | |||||
|
81240
|
81240
81240-32020-B6 Lamp Assy, Room, No.1[10.1989 - 07.1991] VZV21 IVORY,TRIM0# |
81240-32020-B6 |
from US $38.90 |
||
|
81240B
|
81240B
99132-12100 Bulb, Room Lamp, No.1[06.1989 - 07.1991] VZV21 12V 10W |
99132-12100 |
from US $2.40 |
||
| replacement | |||||
|
81240B
|
81240B
99132121001
99132121001
[06.1989 - 07.1991] VZV21 12V 10W |
99132121001 |
— | ||
|
81241
|
81241
81241-24020 Lens, Room Lamp, No.1[06.1989 - 07.1991] VZV21 |
81241-24020 |
US $11.42 |
||
|
81260
|
81260
81260-32071 Lamp Assy, Glove Box[06.1989 - 07.1991] VZV21 |
81260-32071 |
US $16.42 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[06.1989 - 07.1991] VZV21 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
9016445006
|
9016445006
90164-45006 New Genuine Part |
90164-45006 |
US $1.60 |
||
