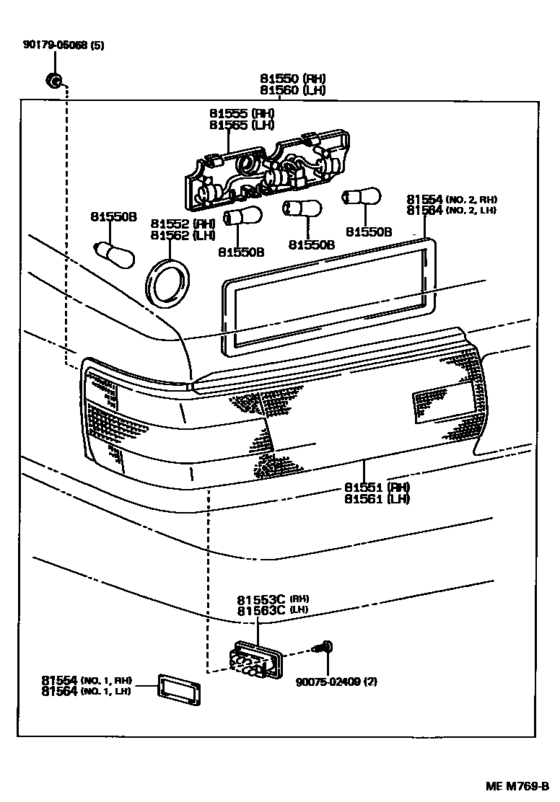

Rear Combination Lamp ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-32210 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [06.1989 - 07.1991] VZV21 |
81550-32210 |
US $430.98 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[06.1989 - 07.1991] VZV21 12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[06.1989 - 07.1991] VZV21 12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-32210 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [06.1989 - 07.1991] VZV21 |
81551-32210 |
US $329.06 |
||
|
81552
|
81552
81552-30450
Gasket, Rear Combination Lamp Lens, Rh
[06.1989 - 07.1991] VZV21 |
81552-30450 |
— | ||
|
81553C
|
81553C
81553-32210 Body, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [06.1989 - 07.1991] VZV21 |
81553-32210 |
US $104.83 |
||
|
81554
|
81554
81554-32210 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [06.1989 - 07.1991] VZV21 NO.1 |
81554-32210 |
US $14.56 |
||
|
81554
|
81554
81558-32210 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [06.1989 - 07.1991] VZV21 NO.2 |
81558-32210 |
US $15 |
||
|
81555
|
81555
81555-32210 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [06.1989 - 07.1991] VZV21 |
81555-32210 |
US $42.22 |
||
|
81560
|
81560
81560-32210 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [06.1989 - 07.1991] VZV21 |
81560-32210 |
US $430.98 |
||
|
81561
|
81561
81561-32210 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [06.1989 - 07.1991] VZV21 |
81561-32210 |
US $329.06 |
||
|
81562
|
81562
81552-30450
Gasket, Rear Combination Lamp Lens, Rh
[06.1989 - 07.1991] VZV21 |
81552-30450 |
— | ||
|
81563C
|
81563C
81563-32210 Body, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [06.1989 - 07.1991] VZV21 |
81563-32210 |
US $104.83 |
||
|
81564
|
81564
81554-32210 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [06.1989 - 07.1991] VZV21 NO.1 |
81554-32210 |
US $14.56 |
||
|
81564
|
81564
81558-32210 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [06.1989 - 07.1991] VZV21 NO.2 |
81558-32210 |
US $15 |
||
|
81565
|
81565
81565-32210 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [06.1989 - 07.1991] VZV21 |
81565-32210 |
US $42.22 |
||
|
9007502409
|
9007502409
90075-02409
New Genuine Part
|
90075-02409 |
— | ||
|
9017905068
|
9017905068
90179-05068 New Genuine Part |
90179-05068 |
US $1.60 |
||
| replacement | |||||
|
9017905068
|
9017905068
90179-05103 New Genuine Part |
90179-05103 |
US $0.87 |
||
