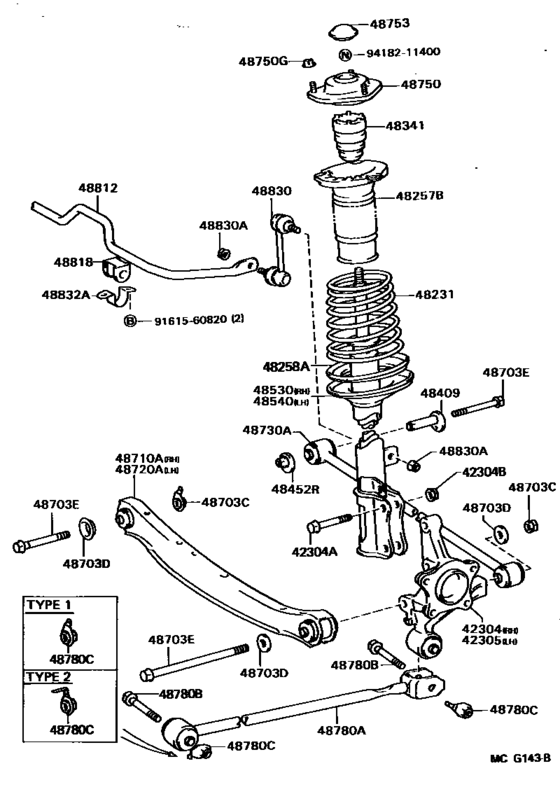

Rear Spring & Shock Absorber ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-32030 Carrier Sub-Assy, Rear Axle, Rh[06.1989 - 07.1991] VZV21 |
42304-32030 |
US $219.86 |
||
|
42304A
|
42304A
90105-15001 Bolt (For Rear Axle Carrier)[06.1989 - 07.1991] VZV21 |
90105-15001 |
US $6.56 |
||
|
42304B
|
42304B
90179-15001 Nut (For Rear Axle Carrier)[06.1989 - 07.1991] VZV21 |
90179-15001 |
from US $3.14 |
||
|
42305
|
42305
42305-32030 Carrier Sub-Assy, Rear Axle, Lh[06.1989 - 07.1991] VZV21 |
42305-32030 |
US $219.86 |
||
|
48231
|
48231
48231-32480 Spring, Coil, RearCOIL, REAR [06.1989 - 07.1991] VZV21 |
48231-32480 |
US $155.79 |
||
|
48257B
|
48257B
48257-32030
Insulator, Rear Coil Spring
[06.1989 - 07.1991] VZV21 |
48257-32030 |
— | ||
|
48258A
|
48258A
48258-32010 Insulator, Rear Coil Spring, Lower[06.1989 - 07.1991] VZV21 |
48258-32010 |
from US $11.84 |
||
|
48341
|
48341
48341-32030 Bumper, Rear Spring[06.1989 - 07.1991] VZV21 |
48341-32030 |
US $18.20 |
||
|
48409
|
48409
48409-32020 Cam Sub-Assy, Rear Suspension Toe Adjust[06.1989 - 07.1991] VZV21 |
48409-32020 |
from US $13.60 |
||
|
48452R
|
48452R
48452-32020 Plate, Rear Suspension Toe Adjust, No.2[06.1989 - 07.1991] VZV21 |
48452-32020 |
from US $18 |
||
|
48530
|
48530
48530-32210 Absorber Assy, Shock, Rear Rh[06.1989 - 07.1991] VZV21 |
48530-32210 |
US $329.06 |
||
| replacement | |||||
|
48530
|
48530
48530-32061
Absorber Assy, Shock, Rear Rh
[06.1989 - 07.1991] VZV21 |
48530-32061 |
— | ||
|
48540
|
48540
48540-32210 Absorber Assy, Shock, Rear Lh[06.1989 - 07.1991] VZV21 |
48540-32210 |
US $329.06 |
||
| replacement | |||||
|
48540
|
48540
48540-32061
Absorber Assy, Shock, Rear Lh
[06.1989 - 07.1991] VZV21 |
48540-32061 |
— | ||
|
48703C
|
48703C
90179-12063 Nut(For Rear Suspension Arm)[06.1989 - 07.1991] VZV21 BODY SIDE |
90179-12063 |
from US $1.95 |
||
|
48703C
|
48703C
90179-14019 Nut[06.1989 - 07.1991] VZV21 CARRIER SIDE |
90179-14019 |
from US $1.40 |
||
|
48703D
|
48703D
90201-14017 Washer(For Rear Suspension Arm)[06.1989 - 07.1991] VZV21 |
90201-14017 |
from US $3.22 |
||
|
48703E
|
48703E
90105-12132 Bolt(For Rear Suspension Arm)[06.1989 - 07.1991] VZV21 *12-1.25PX80-20 |
90105-12132 |
from US $4.68 |
||
|
48703E
|
48703E
90105-14036
Bolt(For Rear Suspension Arm)
[06.1989 - 07.1991] VZV21 *14-1.5PX248-30 |
90105-14036 |
— | ||
|
48703E
|
48703E
90109-12034
Washer(For Rear Suspension Arm)
[06.1989 - 07.1991] VZV21 *12-1.25PX81.5-24 |
90109-12034 |
— | ||
|
48710A
|
48710A
48710-20060
Arm Assy, Rear Suspension, No.1 Rh
[06.1989 - 07.1991] VZV21 |
48710-20060 |
— | ||
| replacement | |||||
|
48710A
|
48710A
48710-20220
Arm Assy, Rear Suspension, No.1 Rh
[06.1989 - 07.1991] VZV21 |
48710-20220 |
— | ||
|
48720A
|
48720A
48720-20050
Arm Assy, Rear Suspension, No.1 Lh
[06.1989 - 07.1991] VZV21 |
48720-20050 |
— | ||
| replacement | |||||
|
48720A
|
48720A
48720-20090
Arm Assy, Rear Suspension, No.1 Lh
[06.1989 - 07.1991] VZV21 |
48720-20090 |
— | ||
|
48730A
|
48730A
48730-32020 Arm Assy, Rear Suspension, No.2[06.1989 - 07.1991] VZV21 |
48730-32020 |
US $88.82 |
||
|
48750
|
48750
48750-32040 Support Assy, Rear Suspension[06.1989 - 07.1991] VZV21 |
48750-32040 |
US $75.71 |
||
|
48750G
|
48750G
90179-08122 Nut(For Rear Suspension Support)[06.1989 - 07.1991] VZV21 |
90179-08122 |
US $7.04 |
||
|
48753
|
48753
48753-16010
Cover, Rear Suspension Support
[06.1989 - 07.1991] VZV21 |
48753-16010 |
— | ||
|
48780A
|
48780A
48780-32030 Rod Assy, Strut, RearSTRUT, REAR [06.1989 - 07.1991] VZV21 |
48780-32030 |
US $91.73 |
||
|
48780B
|
48780B
90119-12131 Bolt(For Strut Rod)[06.1989 - 07.1991] VZV21 |
90119-12131 |
from US $3.57 |
||
| replacement | |||||
|
48780B
|
48780B
90080-11133 Bolt(For Strut Rod)[06.1989 - 07.1991] VZV21 |
90080-11133 |
US $10.95 |
||
|
48780C
|
48780C
90179-12062 Nut(For Rear Suspension Arm)[06.1989 - 07.1991] VZV21 CARRIER SIDE |
90179-12062 |
from US $2.54 |
||
|
48780C
|
48780C
90179-12063 Nut(For Rear Suspension Arm)[06.1989 - 07.1991] VZV21 BODY SIDE(TYPE 1) |
90179-12063 |
from US $1.95 |
||
|
48780C
|
48780C
90179-12065
Nut(For Strut Rod)
[06.1989 - 07.1991] VZV21 BODY SIDE(TYPE 2) |
90179-12065 |
— | ||
|
48812
|
48812
48812-32190 Bar, Stabilizer, Rear[06.1989 - 07.1991] VZV21 |
48812-32190 |
US $117.94 |
||
|
48818
|
48818
48818-20100 Bush, Stabilizer, Rear[06.1989 - 07.1991] VZV21 |
48818-20100 |
US $8.15 |
||
| replacement | |||||
|
48818
|
48818
48818-12160 Bush, Stabilizer, Rear[06.1989 - 07.1991] VZV21 |
48818-12160 |
from US $7.51 |
||
|
48830
|
48830
48830-32010
Link Assy, Rear Stabilizer
[06.1989 - 07.1991] VZV21 |
48830-32010 |
— | ||
| replacement | |||||
|
48830
|
48830
48830-20010 Link Assy, Rear Stabilizer[06.1989 - 07.1991] VZV21 |
48830-20010 |
from US $64.33 |
||
|
48830A
|
48830A
90179-10054 Nut, No.1 (For Center Support Bearing)[06.1989 - 07.1991] VZV21 |
90179-10054 |
from US $0.37 |
||
|
48832A
|
48832A
48832-32020 Bracket, Rear Stabilizer Bar, No.1[06.1989 - 07.1991] VZV21 |
48832-32020 |
US $13.54 |
||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9418211400
|
9418211400
94182-11400 Nut(For Idler Arm Support) |
94182-11400 |
US $4.96 |
||
