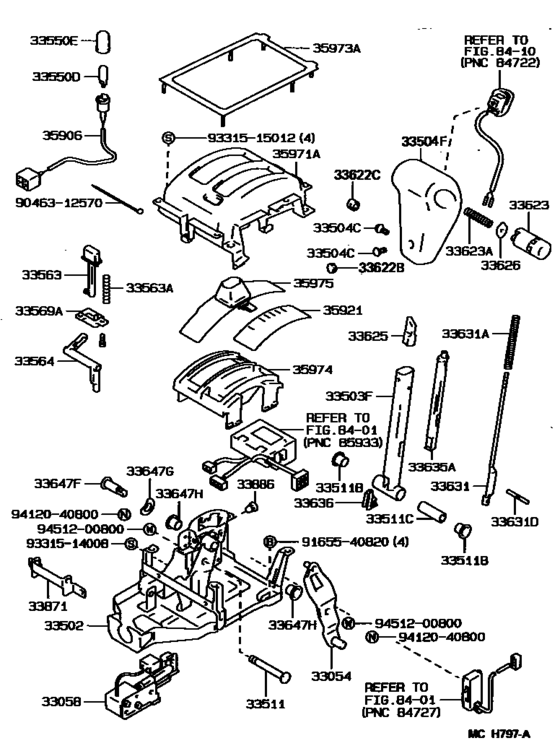

Shift Lever & Retainer ([06.1989 - ] (8906- )4FC) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33054
|
33054
33054-32090 Lever Sub-Assy, Shift, No.2(For Floor Shift)SHIFT, NO.2(FOR FLOOR SHIFT) [06.1989 - 07.1991] VZV21..4FC |
33054-32090 |
US $19.66 |
||
|
33058
|
33058
33058-32020
Bracket Sub-Assy, Shift Lock Solenoid
[06.1989 - 07.1991] VZV21..4FC |
33058-32020 |
— | ||
|
33502
|
33502
33502-32100 Plate Sub-Assy, Shift LeverSHIFT LEVER [06.1989 - 07.1991] VZV21..4FC |
33502-32100 |
US $77.17 |
||
|
33503F
|
33503F
33055-32060 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [06.1989 - 07.1991] VZV21..4FC |
33055-32060 |
US $81.54 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[06.1989 - 07.1991] VZV21..4FC |
90159-40109 |
US $1.28 |
||
|
33504F
|
33504F
33542-32090-01
Knob Sub-Assy, Shift Lever
[06.1989 - 07.1991] VZV21..4FC BLACK,TRIM1# |
33542-32090-01 |
— | ||
|
33504F
|
33504F
33542-32090-B0 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1990 - 07.1991] VZV21..4FC MEDIAM GRAY,TRIM1# |
33542-32090-B0 |
US $81.54 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32090-01
Knob Sub-Assy, Shift Lever
[08.1990 - 07.1991] VZV21..4FC MEDIAM GRAY,TRIM1# |
33542-32090-01 |
— | ||
|
33504F
|
33504F
33542-32090-D0 Knob Sub-Assy, Shift LeverSHIFT LEVER [06.1989 - 07.1991] VZV21..4FC..USA MARRON,TRIM3# |
33542-32090-D0 |
US $81.54 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32090-01
Knob Sub-Assy, Shift Lever
[06.1989 - 07.1991] VZV21..4FC..USA MARRON,TRIM3# |
33542-32090-01 |
— | ||
|
33504F
|
33504F
33542-32090-J0 Knob Sub-Assy, Shift LeverSHIFT LEVER [06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
33542-32090-J0 |
US $81.54 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32090-01
Knob Sub-Assy, Shift Lever
[06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
33542-32090-01 |
— | ||
|
33504F
|
33504F
33542-32100-01 Knob Sub-Assy, Shift Lever[06.1989 - 07.1991] VZV21..4FC LEATHER PACKAGE,BLACK,TRIM1# |
33542-32100-01 |
US $177.63 |
||
|
33504F
|
33504F
33542-32100-02 Knob Sub-Assy, Shift Lever[06.1989 - 07.1991] VZV21..4FC LEATHER PACKAGE,MAROON,TRIM3# |
33542-32100-02 |
US $177.63 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32100-01 Knob Sub-Assy, Shift Lever[06.1989 - 07.1991] VZV21..4FC LEATHER PACKAGE,MAROON,TRIM3# |
33542-32100-01 |
US $177.63 |
||
|
33504F
|
33504F
33542-32100-04 Knob Sub-Assy, Shift Lever[06.1989 - 07.1991] VZV21..4FC LEATHER PACKAGE,DARK BLUE,TRIM8# |
33542-32100-04 |
US $177.63 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32100-01 Knob Sub-Assy, Shift Lever[06.1989 - 07.1991] VZV21..4FC LEATHER PACKAGE,DARK BLUE,TRIM8# |
33542-32100-01 |
US $177.63 |
||
|
33504F
|
33504F
33542-32100-05 Knob Sub-Assy, Shift Lever[06.1989 - 07.1991] VZV21..4FC LEATHER PACKAGE,GREIGE,TRIM0# |
33542-32100-05 |
US $177.63 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32100-01 Knob Sub-Assy, Shift Lever[06.1989 - 07.1991] VZV21..4FC LEATHER PACKAGE,GREIGE,TRIM0# |
33542-32100-01 |
US $177.63 |
||
|
33511
|
33511
33511-32020 Shaft, Control (For Floor Shift)[06.1989 - 07.1991] VZV21..4FC |
33511-32020 |
US $5.10 |
||
|
33511B
|
33511B
90386-11012 Bush(For Shift Lever)[06.1989 - 07.1991] VZV21..4FC |
90386-11012 |
US $2.62 |
||
|
33511C
|
33511C
90387-08091 Collar (For Control Shaft)[06.1989 - 07.1991] VZV21..4FC |
90387-08091 |
US $2.04 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[06.1989 - 07.1991] VZV21..4FC 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
33550E
|
33550E
90339-04023 Cap, Position Indicator Lamp[06.1989 - 07.1991] VZV21..4FC |
90339-04023 |
US $3.84 |
||
|
33563
|
33563
33563-32020 Button, Shift Lock ReleaseSHIFT LOCK RELEASE [06.1989 - 07.1991] VZV21..4FC |
33563-32020 |
US $13.25 |
||
|
33563A
|
33563A
90501-06058 Spring, Compression (For Shift Lock Release Button)[06.1989 - 07.1991] VZV21..4FC |
90501-06058 |
US $1.89 |
||
|
33564
|
33564
33564-32030 Link, Shift Lock Release, No.1SHIFT LOCK RELEASE, NO.1 [06.1989 - 07.1991] VZV21..4FC |
33564-32030 |
US $6.41 |
||
|
33569A
|
33569A
33569-32020 Guide, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [06.1989 - 07.1991] VZV21..4FC |
33569-32020 |
US $7.13 |
||
|
33622B
|
33622B
33622-32050-01
Plug, Shift Lever Knob
[06.1989 - 07.1991] VZV21..4FC BLACK,BLACK,TRIM1# |
33622-32050-01 |
— | ||
|
33622B
|
33622B
33622-32050-02 Plug, Shift Lever Knob[06.1989 - 07.1991] VZV21..4FC MAROON,TRIM3# |
33622-32050-02 |
US $3.93 |
||
| replacement | |||||
|
33622B
|
33622B
33622-32050-01
Plug, Shift Lever Knob
[06.1989 - 07.1991] VZV21..4FC MAROON,TRIM3# |
33622-32050-01 |
— | ||
|
33622B
|
33622B
33622-32050-04 Plug, Shift Lever Knob[06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
33622-32050-04 |
US $3.93 |
||
| replacement | |||||
|
33622B
|
33622B
33622-32050-01
Plug, Shift Lever Knob
[06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
33622-32050-01 |
— | ||
|
33622B
|
33622B
33622-32050-05 Plug, Shift Lever Knob[06.1989 - 07.1991] VZV21..4FC GREIGE,TRIM0# |
33622-32050-05 |
US $3.93 |
||
| replacement | |||||
|
33622B
|
33622B
33622-32050-01
Plug, Shift Lever Knob
[06.1989 - 07.1991] VZV21..4FC GREIGE,TRIM0# |
33622-32050-01 |
— | ||
|
33622C
|
33622C
33622-32060-01
Plug, Shift Lever Knob, No.2
[06.1989 - 07.1991] VZV21..4FC BLACK,BLACK,TRIM1# |
33622-32060-01 |
— | ||
|
33622C
|
33622C
33622-32060-02 Plug, Shift Lever Knob, No.2[06.1989 - 07.1991] VZV21..4FC MAROON,TRIM3# |
33622-32060-02 |
US $3.93 |
||
| replacement | |||||
|
33622C
|
33622C
33622-32060-01
Plug, Shift Lever Knob, No.2
[06.1989 - 07.1991] VZV21..4FC MAROON,TRIM3# |
33622-32060-01 |
— | ||
|
33622C
|
33622C
33622-32060-04 Plug, Shift Lever Knob, No.2[06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
33622-32060-04 |
US $3.93 |
||
| replacement | |||||
|
33622C
|
33622C
33622-32060-01
Plug, Shift Lever Knob, No.2
[06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
33622-32060-01 |
— | ||
|
33622C
|
33622C
33622-32060-05 Plug, Shift Lever Knob, No.2[06.1989 - 07.1991] VZV21..4FC GREIGE,TRIM0# |
33622-32060-05 |
US $3.93 |
||
| replacement | |||||
|
33622C
|
33622C
33622-32060-01
Plug, Shift Lever Knob, No.2
[06.1989 - 07.1991] VZV21..4FC GREIGE,TRIM0# |
33622-32060-01 |
— | ||
|
33623
|
33623
33623-32060-01
Button, Shift Lever Knob
[06.1989 - 07.1991] VZV21..4FC BLACK,TRIM1# |
33623-32060-01 |
— | ||
|
33623
|
33623
33623-32060-04 Button, Shift Lever KnobSHIFT LEVER KNOB [06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
33623-32060-04 |
US $31.01 |
||
| replacement | |||||
|
33623
|
33623
33623-32060-01
Button, Shift Lever Knob
[06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
33623-32060-01 |
— | ||
|
33623
|
33623
33623-32060-15 Button, Shift Lever Knob[08.1989 - 07.1991] VZV21..4FC GREIGE,TRIM0# |
33623-32060-15 |
US $31.01 |
||
| replacement | |||||
|
33623
|
33623
33623-32060-01
Button, Shift Lever Knob
[08.1989 - 07.1991] VZV21..4FC GREIGE,TRIM0# |
33623-32060-01 |
— | ||
|
33623
|
33623
33623-32060-B0 Button, Shift Lever KnobSHIFT LEVER KNOB [01.1990 - 07.1991] VZV21..4FC MEDIAM GRAY,TRIM1# |
33623-32060-B0 |
US $31.01 |
||
| replacement | |||||
|
33623
|
33623
33623-32060-01
Button, Shift Lever Knob
[01.1990 - 07.1991] VZV21..4FC MEDIAM GRAY,TRIM1# |
33623-32060-01 |
— | ||
|
33623
|
33623
33623-32060-D0 Button, Shift Lever KnobSHIFT LEVER KNOB [06.1989 - 07.1991] VZV21..4FC MARRON,TRIM3# |
33623-32060-D0 |
US $31.01 |
||
| replacement | |||||
|
33623
|
33623
33623-32060-01
Button, Shift Lever Knob
[06.1989 - 07.1991] VZV21..4FC MARRON,TRIM3# |
33623-32060-01 |
— | ||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[06.1989 - 07.1991] VZV21..4FC |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-32010 Sleeve, Shift Lever Knob[06.1989 - 07.1991] VZV21..4FC |
33625-32010 |
US $10.05 |
||
|
33626
|
33626
33626-32010 Stopper, Shift Lever Button[06.1989 - 07.1991] VZV21..4FC |
33626-32010 |
US $2.91 |
||
|
33631
|
33631
33631-32030 Rod, Detent[06.1989 - 07.1991] VZV21..4FC |
33631-32030 |
US $15.29 |
||
|
33631A
|
33631A
90501-07005 Spring, Compression (For Detent Rod)[06.1989 - 07.1991] VZV21..4FC |
90501-07005 |
US $6.87 |
||
|
33631D
|
33631D
90256-04003 Pin, Slotted Spring (For Detent Rod)[06.1989 - 07.1991] VZV21..4FC |
90256-04003 |
US $2.97 |
||
|
33635A
|
33635A
33635-32030 Guide, Wire, No.1 (For Shift Lever)[06.1989 - 07.1991] VZV21..4FC |
33635-32030 |
US $12.52 |
||
|
33636
|
33636
33636-35010 Protector, Wire[06.1989 - 07.1991] VZV21..4FC |
33636-35010 |
US $2.56 |
||
|
33647F
|
33647F
33647-32010 Shaft, Control Link (For Floor Shift)[06.1989 - 07.1991] VZV21..4FC |
33647-32010 |
US $10.48 |
||
|
33647G
|
33647G
90206-10003 Washer, Wave (For Control Link Shaft)[06.1989 - 07.1991] VZV21..4FC |
90206-10003 |
US $2.91 |
||
|
33647H
|
33647H
90386-10012 Bush (For Control Shaft)[06.1989 - 07.1991] VZV21..4FC |
90386-10012 |
US $5.59 |
||
|
33871
|
33871
33871-32010 Bracket, Shift Lock Release Link (For Floor Shift)[06.1989 - 07.1991] VZV21..4FC |
33871-32010 |
US $4.37 |
||
|
33886
|
33886
33886-16010 Stopper, Shift Lever[06.1989 - 07.1991] VZV21..4FC |
33886-16010 |
US $1.35 |
||
|
35906
|
35906
35906-35051 Wire Sub-Assy, Indicator Lamp[06.1989 - 07.1991] VZV21..4FC |
35906-35051 |
US $15.87 |
||
| replacement | |||||
|
35906
|
35906
35906-17020 Wire Sub-Assy, Indicator Lamp[06.1989 - 07.1991] VZV21..4FC |
35906-17020 |
US $13.69 |
||
|
35921
|
35921
35921-32100 Plate, Control Position IndicatorCONTROL POSITION INDICATOR [06.1989 - 07.1991] VZV21..4FC |
35921-32100 |
US $27.96 |
||
|
35971A
|
35971A
35971-32140 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [06.1989 - 07.1991] VZV21..4FC |
35971-32140 |
US $37.56 |
||
|
35973A
|
35973A
35973-32010-B0
Attachment, Position Indicator Housing Cover
[06.1989 - 07.1991] VZV21..4FC MEDIUM GRAY,TRIM1# |
35973-32010-B0 |
— | ||
|
35973A
|
35973A
35973-32010-D0 Attachment, Position Indicator Housing Cover[06.1989 - 07.1991] VZV21..4FC MAROON,TRIM3# |
35973-32010-D0 |
US $6.41 |
||
| replacement | |||||
|
35973A
|
35973A
35973-32010-B0
Attachment, Position Indicator Housing Cover
[06.1989 - 07.1991] VZV21..4FC MAROON,TRIM3# |
35973-32010-B0 |
— | ||
|
35973A
|
35973A
35973-32010-J0 Attachment, Position Indicator Housing Cover[06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
35973-32010-J0 |
US $7.13 |
||
| replacement | |||||
|
35973A
|
35973A
35973-32010-B0
Attachment, Position Indicator Housing Cover
[06.1989 - 07.1991] VZV21..4FC DARK BLUE,TRIM8# |
35973-32010-B0 |
— | ||
|
35974
|
35974
35974-32060 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [06.1989 - 07.1991] VZV21..4FC |
35974-32060 |
US $20.82 |
||
|
35975
|
35975
35975-32120 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [06.1989 - 07.1991] VZV21..4FC |
35975-32120 |
US $37.71 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.16 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
