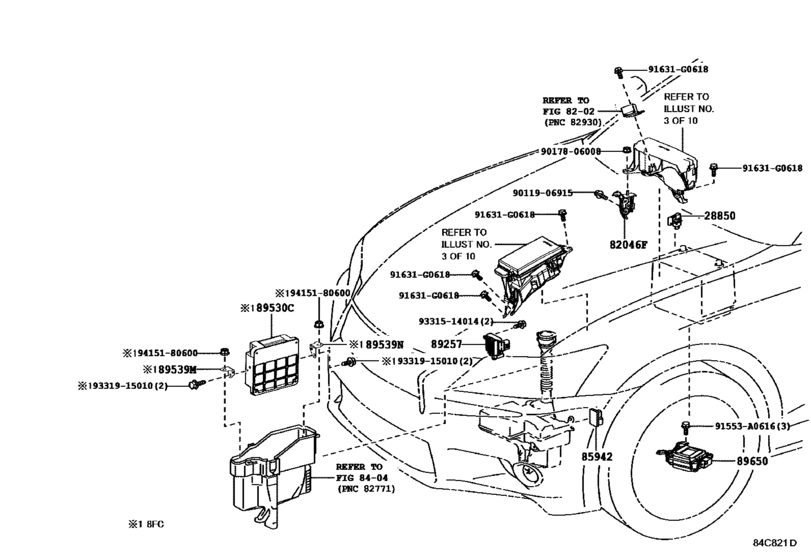

Switch & Relay & Computer ([12.2011 - 10.2015] ｴﾝｼﾞﾝﾙｰﾑ (1112-1510)GRL1#) Diagram Toyota LEXUS GS
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- GRL10
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- GS350
- From
- 09.2013
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28850
|
28850
28850-31020 Sensor Assy, Battery Current[12.2011 - 10.2015] 2GRFSE,4GRFSE..GRL1# |
28850-31020 |
US $91.76 |
||
|
82046F
|
82046F
82046-24080 Wire Sub-Assy, Body Ground, No.1[10.2014 - 10.2015] GRL1# |
82046-24080 |
US $28.83 |
||
|
82046F
|
82046F
82046-30110 Wire Sub-Assy, Body Ground, No.1[12.2011 - 09.2014] GRL11,15;GRL10..8FC |
82046-30110 |
US $26.50 |
||
|
85942
|
85942
85942-30040 Relay, Cleaner Control[09.2013 - 10.2015] AWL10,GRL15,GWL10; GRL10,11 ヘッドランプクリーナ−有り |
85942-30040 |
from US $52.62 |
||
|
89257
|
89257
89257-30100 Computer, Cooling Fan[12.2011 - 10.2015] GRL15;GRL10..8FC |
89257-30100 |
US $183.46 |
||
|
89530C
|
89530C
89535-30210 Computer Assy, Transmission Control[09.2013 - 10.2015] GRL10 |
89535-30210 |
US $796.43 |
||
|
89539M
|
89539M
89539-30110 Bracket, Transmission Control Computer, No.1[09.2013 - 10.2015] GRL10 |
89539-30110 |
US $2.62 |
||
|
89539N
|
89539N
89539-30120 Bracket, Transmission Control Computer, No.2[09.2013 - 10.2015] GRL10 |
89539-30120 |
US $2.62 |
||
|
89650
|
89650
89650-30871 Computer Assy, Power Steering[09.2013 - 10.2015] GRL1# |
89650-30871 |
US $637.73 |
||
|
89650
|
89650
89650-30881 Computer Assy, Power Steering[09.2013 - 10.2015] GRL10 Ｆ ＳＰＯＲＴ＆ＬＤＨ−有り |
89650-30881 |
US $637.73 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $0.96 |
||
|
91631G0618
|
91631G0618
91631-G0618 New Genuine Part |
91631-G0618 |
US $0.44 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9017806008
|
9017806008
90178-06008 NUT FLANGE |
90178-06008 |
from US $0.72 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
