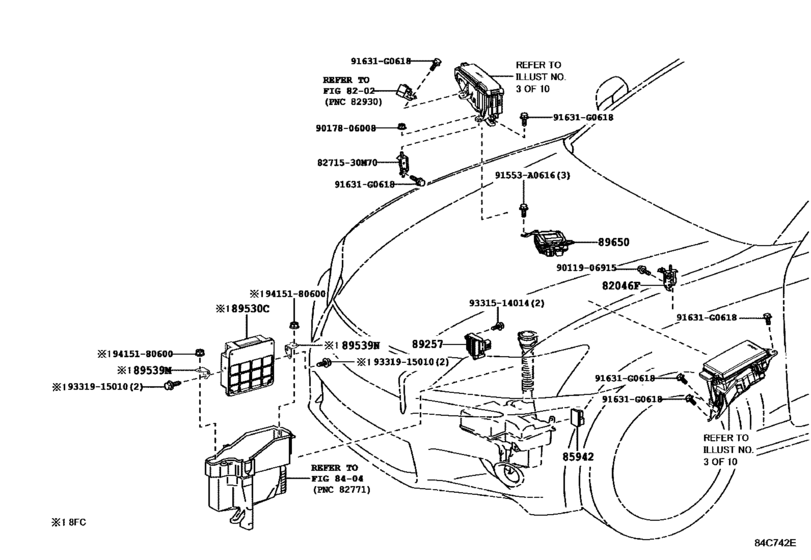

Switch & Relay & Computer ([01.2012 - 10.2015] ENGINE ROOM (1201-1510)GRL1#..LHD) Diagram Toyota LEXUS GS
- Year
- 2013 - 2015
- Sales region
- General
- Frame
- GRL10
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- GS350
- From
- 09.2013
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82046F
|
82046F
82046-24080 Wire Sub-Assy, Body Ground, No.1[10.2014 - 10.2015] GRL10,15;GRL11..RHD |
82046-24080 |
US $28.83 |
||
|
82046F
|
82046F
82046-30110 Wire Sub-Assy, Body Ground, No.1[01.2012 - 09.2014] GRL15;GRL11..RHD;GRL10..8FC |
82046-30110 |
US $26.50 |
||
|
85942
|
85942
85942-30040 Relay, Cleaner Control[09.2013 - 10.2015] AWL10,GRL1#,GWL10..ARL,GEN; GRL10,11,GWL10..GCC HEADLAMP CLEANER-WITH |
85942-30040 |
from US $52.62 |
||
|
89257
|
89257
89257-30100 Computer, Cooling Fan[01.2012 - 10.2015] GRL10,15..ARL,GEN |
89257-30100 |
US $183.46 |
||
|
89257
|
89257
89257-30110 Computer, Cooling Fan[09.2012 - 10.2015] GRL11..RHD..GEN INDONESIA SPEC; GRL10..LHD..GEN VIETNAM SPEC |
89257-30110 |
US $195.84 |
||
|
89530C
|
89530C
89535-30220
Computer Assy, Transmission Control
[09.2013 - 10.2015] GRL10..ARL; GRL10..LHD..GEN CHINA SPEC; GRL10..RHD..GEN HONG KONG SPEC; GRL10..LHD..GEN TAIWAN SPEC; GRL10..RHD..GEN SINGAPORE SPEC; GRL10..RHD..GEN THAILAND SPEC; GRL10..LHD..GEN ARGENTINA SPEC; GRL10..RHD..GEN MACAO SPEC |
89535-30220 |
— | ||
|
89530C
|
89530C
89535-30230
Computer Assy, Transmission Control
[09.2013 - 10.2015] GRL10..GCC,GEN |
89535-30230 |
— | ||
|
89539M
|
89539M
89539-30110 Bracket, Transmission Control Computer, No.1[09.2013 - 10.2015] GRL10 |
89539-30110 |
US $2.62 |
||
|
89539N
|
89539N
89539-30120 Bracket, Transmission Control Computer, No.2[09.2013 - 10.2015] GRL10 |
89539-30120 |
US $2.62 |
||
|
89650
|
89650
89650-30891
Computer Assy, Power Steering
[09.2013 - 10.2015] GRL1#..LHD |
89650-30891 |
— | ||
|
89650
|
89650
89650-30A01
Computer Assy, Power Steering
[09.2013 - 10.2015] GRL10..LHD F SPORT&LDH-WITH |
89650-30A01 |
— | ||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $0.96 |
||
|
91631G0618
|
91631G0618
91631-G0618 New Genuine Part |
91631-G0618 |
US $0.44 |
||
|
8271530M70
|
8271530M70
82715-30M70
Bracket,wiring Harness Clamp
|
82715-30M70 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9017806008
|
9017806008
90178-06008 NUT FLANGE |
90178-06008 |
from US $0.72 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
