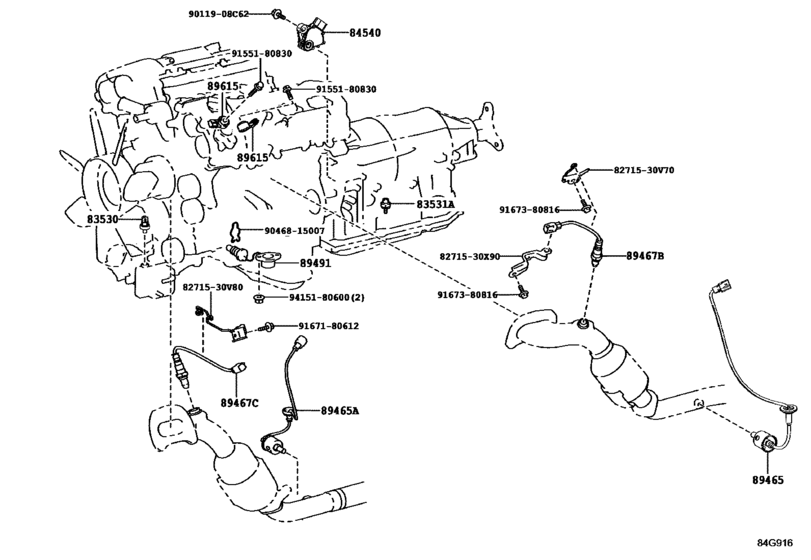

Switch & Relay & Computer ([10.2015 - ] ENGINE & TRANSMISSION (1510- )GRL12) Diagram Toyota LEXUS GS
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRL12
- ENGINE
- 2GRFKS
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- GS350
- From
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[10.2015 -] AWL10,GRL12,GWL10 |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [10.2015 -] AWL10,GRL12,GWL10 |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[10.2015 -] AWL10,GRL12,GWL10 |
83530-0E010 |
from US $51.25 |
||
|
83531A
|
83531A
83531-50010 Switch, Oil Pressure[10.2015 -] GRL12 |
83531-50010 |
US $10.92 |
||
|
84540
|
84540
84540-71010 Switch Assy, Neutral Start[10.2015 -] ARL10,GRL12 |
84540-71010 |
from US $112.48 |
||
|
89465
|
89465
89465-30B40 Sensor, Oxygen[10.2015 -] GRL12 |
89465-30B40 |
US $85.90 |
||
|
89465A
|
89465A
89465-30B50 Sensor, Oxygen No.2[10.2015 -] GRL12 |
89465-30B50 |
US $85.90 |
||
|
89467B
|
89467B
89467-30080 Sensor, Air Fuel Ratio[10.2015 -] GRL12 |
89467-30080 |
US $132.50 |
||
|
89467C
|
89467C
89467-30090 Sensor, Air Fuel Ratio, No.2[10.2015 -] GRL12 |
89467-30090 |
US $132.50 |
||
|
89491
|
89491
89491-30100 Sensor, Engine Oil Level[10.2015 -] GRL12 |
89491-30100 |
US $44.84 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[10.2015 -] GRL12,GWL10 |
89615-20090 |
from US $36.02 |
||
|
8271530V70
|
8271530V70
82715-30V70 Bracket,wiring Harness Clamp |
82715-30V70 |
US $2.91 |
||
|
8271530V80
|
8271530V80
82715-30V80 Bracket,wiring Harness Clamp |
82715-30V80 |
US $4.95 |
||
|
8271530X90
|
8271530X90
82715-30X90 Bracket,wiring Harness Clamp |
82715-30X90 |
US $4.80 |
||
|
9011908C62
|
9011908C62
90119-08C62 New Genuine Part |
90119-08C62 |
US $1.28 |
||
|
9046815007
|
9046815007
90468-15007 New Genuine Part |
90468-15007 |
US $1.28 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.88 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.72 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
