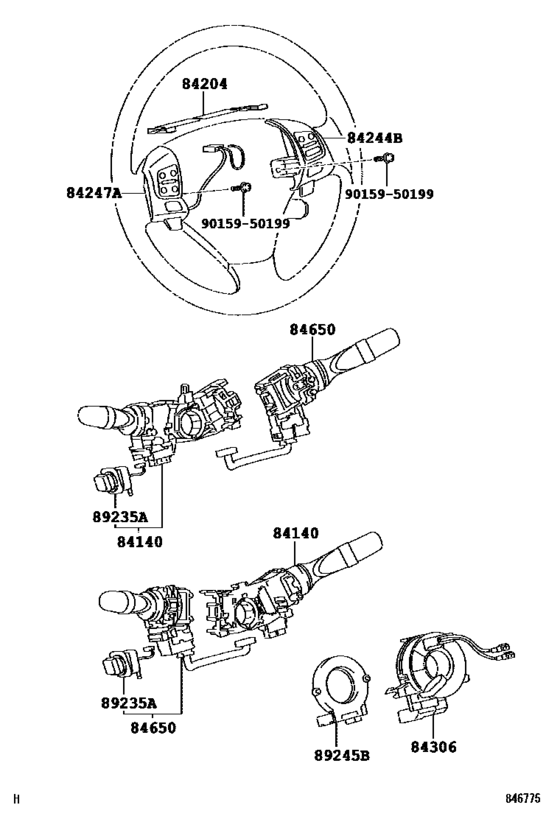

Switch & Relay & Computer ([01.2005 - 09.2007] IGNITION & COMBINATION SWITCH (0501-0709)) Diagram Toyota LEXUS GS
- Year
- 2005 - 2011
- Sales region
- General
- Frame
- GRS190
- ENGINE
- 3GRFE
- DESTINATION
- GCC
- Model
- GS300
- From
- 01.2005
- To
- 12.2011
- Vehicle Model
- GS300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-30310 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [01.2005 - 09.2007] GRS190,UZS190..EUR; GRS190..GCC CHINA SPEC |
84140-30310 |
US $198.02 |
||
| replacement | |||||
|
84140
|
84140
84140-30311 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [01.2005 - 09.2007] GRS190,UZS190..EUR; GRS190..GCC CHINA SPEC |
84140-30311 |
from US $125.22 |
||
|
84140
|
84140
84140-30311 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2008 -] GRS19#,URS190,UZS190..EUR; GRS190..GCC CHINA SPEC; URS190,UZS190..GCC PHILIPPINE SPEC |
84140-30311 |
from US $125.22 |
||
|
84140
|
84140
84140-48140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [01.2005 - 09.2007] GRS190,UZS190..GCC |
84140-48140 |
US $198.02 |
||
| replacement | |||||
|
84140
|
84140
84140-48210 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [01.2005 - 09.2007] GRS190,UZS190..GCC |
84140-48210 |
from US $125.21 |
||
|
84140
|
84140
84140-48210 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2008 -] GRS190,URS190,UZS190..GCC |
84140-48210 |
from US $125.21 |
||
|
84204
|
84204
84204-33010 Cable Sub-Assy, Steering Pad Switch[01.2005 - 09.2007] GRS190,UZS190 |
84204-33010 |
US $40.77 |
||
|
84244B
|
84244B
84244-30101-C0
Switch, Steering Pad, Rh
[01.2005 - 02.2005] GRS190,UZS190 BLACK,TRIM1#,2#; UZS190..LHD..EUR CHINA SPEC&WITH(*EMV & NAVIGATION SYSTEM),BLACK,TRIM1#,2#; GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&WITH(*EMV & NAVIGATION SYSTEM),BLACK,TRIM1#,2# |
84244-30101-C0 |
— | ||
| replacement | |||||
|
84244B
|
84244B
84244-30102-C0
Switch, Steering Pad, Rh
[01.2005 - 02.2005] GRS190,UZS190 BLACK,TRIM1#,2#; UZS190..LHD..EUR CHINA SPEC&WITH(*EMV & NAVIGATION SYSTEM),BLACK,TRIM1#,2#; GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&WITH(*EMV & NAVIGATION SYSTEM),BLACK,TRIM1#,2# |
84244-30102-C0 |
— | ||
|
84244B
|
84244B
84244-30101-E0
Switch, Steering Pad, Rh
[01.2005 - 02.2005] GRS190,UZS190 ORCHID BROWN,TRIM0#; UZS190..LHD..EUR CHINA SPEC&WITH(*EMV & NAVIGATION SYSTEM),ORCHID BROWN,TRIM0#; GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&WITH(*EMV & NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
84244-30101-E0 |
— | ||
| replacement | |||||
|
84244B
|
84244B
84244-30102-E0
Switch, Steering Pad, Rh
[01.2005 - 02.2005] GRS190,UZS190 ORCHID BROWN,TRIM0#; UZS190..LHD..EUR CHINA SPEC&WITH(*EMV & NAVIGATION SYSTEM),ORCHID BROWN,TRIM0#; GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&WITH(*EMV & NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
84244-30102-E0 |
— | ||
|
84244B
|
84244B
84244-30102-C0
Switch, Steering Pad, Rh
[02.2005 - 07.2006] GRS190,UZS190 BLACK,TRIM1#,2#; UZS190..LHD..EUR CHINA SPEC&WITH(*EMV & NAVIGATION SYSTEM),BLACK,TRIM1#,2#; GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&WITH(*EMV & NAVIGATION SYSTEM),BLACK,TRIM1#,2# |
84244-30102-C0 |
— | ||
|
84244B
|
84244B
84244-30102-E0
Switch, Steering Pad, Rh
[02.2005 - 07.2006] GRS190,UZS190 ORCHID BROWN,TRIM0#; UZS190..LHD..EUR CHINA SPEC&WITH(*EMV & NAVIGATION SYSTEM),ORCHID BROWN,TRIM0#; GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&WITH(*EMV & NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
84244-30102-E0 |
— | ||
|
84244B
|
84244B
84244-30111-C0 Switch, Steering Pad, Rh[07.2006 - 09.2007] GRS190,UZS190 BLACK,TRIM1#,2# |
84244-30111-C0 |
US $110.66 |
||
|
84244B
|
84244B
84244-30111-E0 Switch, Steering Pad, Rh[07.2006 - 09.2007] GRS190,UZS190 ORCHID BROWN,TRIM0# |
84244-30111-E0 |
US $110.66 |
||
|
84247A
|
84247A
84247-30031-C0 Switch, Steering Pad, Lh[01.2005 - 09.2007] GRS190 BLACK,TRIM1#,2# |
84247-30031-C0 |
US $120.85 |
||
|
84247A
|
84247A
84247-30031-E0 Switch, Steering Pad, Lh[01.2005 - 09.2007] GRS190 ORCHID BROWN,TRIM0# |
84247-30031-E0 |
from US $120.85 |
||
|
84306
|
84306
84306-48030
Cable Sub-Assy, Spiral
[01.2005 - 09.2007] GRS190,UZS190 |
84306-48030 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[01.2005 - 09.2007] GRS190,UZS190 |
84306-48031 |
from US $154.19 |
||
|
84650
|
84650
84652-30541 Switch Assy, Windshield WiperWINDSHIELD WIPER [01.2005 - 09.2007] GRS190,UZS190..EUR,GCC |
84652-30541 |
US $131.04 |
||
| replacement | |||||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [01.2005 - 09.2007] GRS190,UZS190..EUR,GCC |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2008 -] UZS190..GCC;GRS19#,URS190..LHD |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30551 Switch Assy, Windshield WiperWINDSHIELD WIPER [01.2005 - 09.2007] GRS190,UZS190..EUR,GCC INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
84652-30551 |
US $136.86 |
||
| replacement | |||||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[01.2005 - 09.2007] GRS190,UZS190..EUR,GCC INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
84652-30552 |
— | ||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[08.2008 -] UZS190..GCC;GRS19#,URS190..LHD INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
84652-30552 |
— | ||
|
84650
|
84650
84652-30620
Switch Assy, Windshield Wiper
[09.2007 - 09.2008] UZS190..EUR; GRS190..GCC CHINA SPEC |
84652-30620 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2007 - 09.2008] UZS190..EUR; GRS190..GCC CHINA SPEC |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30630
Switch Assy, Windshield Wiper
[09.2007 - 09.2008] GRS190..GCC CHINA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR); UZS190..EUR INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
84652-30630 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[09.2007 - 09.2008] GRS190..GCC CHINA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR); UZS190..EUR INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
84652-30552 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[01.2005 - 09.2007] GRS190,UZS190; GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC; GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR); GRS190,UZS190..RHD..EUR AUSTRALIA SPEC; GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&INTERMITTENT WIPER-A |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-30080 Sensor, Steering[01.2005 - 09.2007] GRS190 |
89245-30080 |
from US $217.85 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
