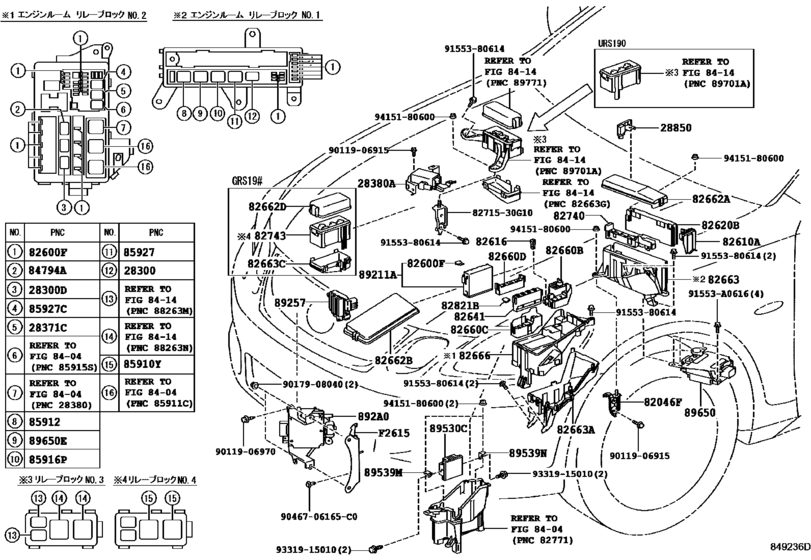

Switch & Relay & Computer ([09.2007 - ] ｴﾝｼﾞﾝﾙｰﾑ (0709- )) Diagram Toyota LEXUS GS
- Year
- 2005 - 2011
- Sales region
- Japan
- Frame
- GRS196
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- GS350
- From
- 08.2005
- To
- 12.2011
- Vehicle Model
- GS350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[08.2005 - 09.2007] 2GRFSE,3UZFE..GRS19#,UZS190 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2005 - 09.2007] 2GRFSE,3UZFE..GRS19#,UZS190 |
28300-21020 |
from US $44.86 |
||
|
28300D
|
28300D
90987-02027 Relay[08.2005 - 09.2007] 2GRFSE,3UZFE..GRS19#,UZS190 |
90987-02027 |
from US $47.11 |
||
|
28371C
|
28371C
90987-02027 Relay[08.2005 - 09.2007] 2GRFSE,3UZFE..GRS19#,UZS190 |
90987-02027 |
from US $47.11 |
||
|
28380A
|
28380A
23080-31040 Resister, Fuel Pump[08.2005 - 09.2007] 2GRFSE..GRS19# |
23080-31040 |
US $58.01 |
||
|
28850
|
28850
28850-31020 Sensor Assy, Battery Current[09.2007 - 12.2011] 2GRFSE,1URFSE..GRS19#,URS190 |
28850-31020 |
US $101.68 |
||
|
28850
|
28850
28850-50010 Sensor Assy, Battery Current[08.2005 - 09.2007] 2GRFSE,3UZFE..GRS19#,UZS190 |
28850-50010 |
US $147.60 |
||
|
82046F
|
82046F
82046-30100 Wire Sub-Assy, Body Ground, No.1[08.2005 - 09.2007] GRS19#,UZS190 |
82046-30100 |
US $14.41 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2005 - 09.2007] GRS19#,UZS190 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2005 - 09.2007] GRS19#,UZS190 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2005 - 09.2007] GRS19#,UZS190 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2005 - 09.2007] GRS19#,UZS190 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2005 - 09.2007] GRS19#,UZS190 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2005 - 09.2007] GRS19#,UZS190 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.78 |
||
|
82610A
|
82610A
82610-30130 Block Assy, Fuse[08.2005 - 09.2007] GRS19#,UZS190 |
82610-30130 |
US $18.35 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[08.2005 - 09.2007] GRS19#,UZS190 |
82616-58010 |
from US $2.28 |
||
|
82620B
|
82620B
82620-30170 Block Assy, Fusible Link[08.2005 - 09.2007] GRS19#,UZS190 |
82620-30170 |
from US $81.30 |
||
|
82641
|
82641
82641-30250 Relay, Integration No.1[08.2005 - 09.2007] GRS19#,UZS190 |
82641-30250 |
US $142.68 |
||
|
82660B
|
82660B
82660-30A00 Block Assy, Relay[08.2005 - 09.2007] GRS19#,UZS190 |
82660-30A00 |
US $31.45 |
||
|
82660C
|
82660C
82660-30A10 Block Assy, Relay[08.2005 - 09.2007] GRS19#,UZS190 |
82660-30A10 |
US $21.69 |
||
|
82660C
|
82660C
82660-30A60 Block Assy, Relay[09.2007 - 12.2011] GRS19#,URS190 |
82660-30A60 |
US $23.59 |
||
|
82660D
|
82660D
82660-30A20 Block Assy, Relay[08.2005 - 09.2007] GRS19#,UZS190 |
82660-30A20 |
from US $13.83 |
||
|
82662A
|
82662A
82662-30610 Cover, Relay Block, Upper, No.1[08.2005 - 07.2006] GRS19#,UZS190 |
82662-30610 |
US $21.84 |
||
|
82662A
|
82662A
82662-30611 Cover, Relay Block, Upper, No.1[07.2006 - 09.2007] GRS19#,UZS190 |
82662-30611 |
US $21.84 |
||
|
82662A
|
82662A
82662-30612 Cover, Relay Block, Upper, No.1[09.2007 -] GRS19# |
82662-30612 |
US $18.05 |
||
|
82662B
|
82662B
82662-30620 Cover, Relay Block, Upper, No.2[08.2005 - 09.2007] GRS19# |
82662-30620 |
from US $41.93 |
||
|
82662B
|
82662B
82662-30A30 Cover, Relay Block, Upper, No.2[09.2007 -] GRS19# |
82662-30A30 |
from US $34.94 |
||
|
82662D
|
82662D
82662-30650 Cover, Relay Block, Upper, No.4[08.2005 - 09.2007] GRS19# |
82662-30650 |
US $11.21 |
||
|
82663
|
82663
82663-30200 Cover, Relay Block, Lower[08.2005 - 09.2007] GRS19#,UZS190 |
82663-30200 |
US $50.38 |
||
|
82663A
|
82663A
82663-30210 Cover, Relay Block, Lower, No.2[08.2005 - 09.2007] GRS19#,UZS190 |
82663-30210 |
from US $31.74 |
||
|
82663C
|
82663C
82663-30240 Cover, Relay Block Lower, No.4[08.2005 - 09.2007] GRS19# |
82663-30240 |
from US $5.97 |
||
|
82666
|
82666
82666-30730 Holder, Connector[08.2005 - 09.2007] GRS19#,UZS190 |
82666-30730 |
US $50.67 |
||
|
82740
|
82740
82740-30340 Block Assy, Engine Room Relay[08.2005 - 09.2007] GRS19#,UZS190 |
82740-30340 |
US $20.38 |
||
|
82743
|
82743
82743-30050 Block, Engine Room Relay, No.3[08.2005 - 09.2007] GRS19# |
82743-30050 |
from US $23.44 |
||
|
82821B
|
82821B
82821-47090 Cover, Connector[08.2005 - 09.2007] GRS19#,UZS190 |
82821-47090 |
US $0.15 |
||
|
84794A
|
84794A
90987-02027 Relay[08.2005 - 09.2007] GRS19#,UZS190 寒冷地仕様 |
90987-02027 |
from US $47.11 |
||
|
85910Y
|
85910Y
90987-02025 Relay[08.2005 - 09.2007] GRS19# |
90987-02025 |
from US $49.22 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[08.2005 - 09.2007] GRS19#,UZS190 |
90987-04010 |
from US $47.21 |
||
|
85916P
|
85916P
90987-02025 Relay[08.2005 - 09.2007] GRS19#,UZS190 |
90987-02025 |
from US $49.22 |
||
|
85927
|
85927
90987-02025 Relay[08.2005 - 09.2007] GRS19#,UZS190 |
90987-02025 |
from US $49.22 |
||
|
85927C
|
85927C
90987-02027 Relay[08.2005 - 09.2007] GRS19# |
90987-02027 |
from US $47.11 |
||
|
89211A
|
89211A
89211-30020 Computer, Multiplex Network Body[08.2005 - 09.2007] GRS19#,UZS190 |
89211-30020 |
US $273.73 |
||
|
89257
|
89257
89257-30070 Computer, Cooling Fan[08.2005 - 09.2007] GRS19#,UZS190 |
89257-30070 |
from US $226.75 |
||
|
89650
|
89650
89650-30624 Computer Assy, Power Steering[08.2005 - 09.2007] GRS19# |
89650-30624 |
US $553.28 |
||
|
89650
|
89650
89650-30710 Computer Assy, Power Steering[09.2007 - 04.2008] GRS19# |
89650-30710 |
US $663.94 |
||
| replacement | |||||
|
89650
|
89650
89650-30712 Computer Assy, Power SteeringPOWER STEERING [09.2007 - 04.2008] GRS19# |
89650-30712 |
US $553.28 |
||
|
89650
|
89650
89650-30711 Computer Assy, Power Steering[05.2008 - 08.2009] GRS19# |
89650-30711 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-30712 Computer Assy, Power SteeringPOWER STEERING [05.2008 - 08.2009] GRS19# |
89650-30712 |
US $553.28 |
||
|
89650
|
89650
89650-30712 Computer Assy, Power SteeringPOWER STEERING [09.2009 - 12.2011] GRS19# |
89650-30712 |
US $553.28 |
||
|
89650E
|
89650E
90987-02025 Relay[08.2005 - 09.2007] GRS19#,UZS190 |
90987-02025 |
from US $49.22 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
8271530G10
|
8271530G10
82715-30G10 Bracket,wiring Harness Clamp |
82715-30G10 |
US $6.99 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011906970
|
9011906970
90119-06970 New Genuine Part |
90119-06970 |
US $1.46 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9046706165C0
|
9046706165C0
90467-06165-C0 Clip, Instrument PanelINSTRUMENT PANEL |
90467-06165-C0 |
from US $0.78 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
