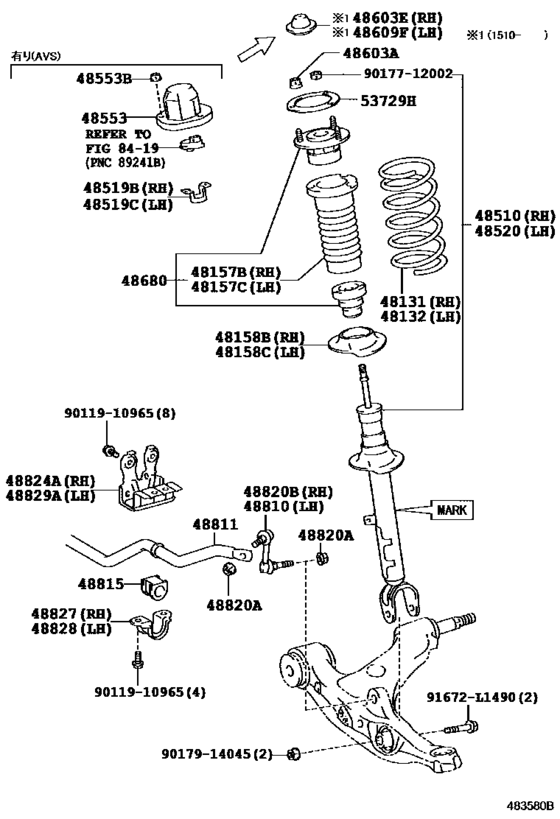

Front Spring & Shock Absorber ([12.2011 - ] (1112- )ARL10,AWL10,GRL10,11,12,GWL10) Diagram Toyota LEXUS GS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- GWL10
- ENGINE
- 2GRFXE
- TRANSMISSION
- CVT
- Model
- GS450 Hybrid
- From
- 03.2012
- Vehicle Model
- GS450 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-30D30 Spring, Front Coil, Rh[03.2012 - 09.2014] GWL10 |
48131-30D30 |
US $88.74 |
||
|
48131
|
48131
48131-30D31 Spring, Front Coil, Rh[09.2014 - 10.2015] GWL10 |
48131-30D31 |
US $90.27 |
||
|
48131
|
48131
48131-30F00 Spring, Front Coil, Rh[10.2015 -] GWL10 |
48131-30F00 |
US $78.62 |
||
|
48132
|
48132
48131-30D30 Spring, Front Coil, Rh[03.2012 - 09.2014] GWL10 |
48131-30D30 |
US $88.74 |
||
|
48132
|
48132
48131-30D31 Spring, Front Coil, Rh[09.2014 - 10.2015] GWL10 |
48131-30D31 |
US $90.27 |
||
|
48132
|
48132
48131-30F00 Spring, Front Coil, Rh[10.2015 -] GWL10 |
48131-30F00 |
US $78.62 |
||
|
48157B
|
48157B
48157-30050 Insulator, Front Coil Spring, Upper Rh[12.2011 - 09.2014] GRL10..8FC;AWL10,GRL11,GWL10 |
48157-30050 |
US $28.42 |
||
|
48157B
|
48157B
48157-30090 Insulator, Front Coil Spring, Upper Rh[09.2014 - 10.2015] AWL10,GRL10,11,GWL10 |
48157-30090 |
from US $17.94 |
||
|
48157C
|
48157C
48157-30050 Insulator, Front Coil Spring, Upper Rh[12.2011 - 09.2014] GRL10..8FC;AWL10,GRL11,GWL10 |
48157-30050 |
US $28.42 |
||
|
48157C
|
48157C
48157-30090 Insulator, Front Coil Spring, Upper Rh[09.2014 - 10.2015] AWL10,GRL10,11,GWL10 |
48157-30090 |
from US $17.94 |
||
|
48158B
|
48158B
48158-30020 Insulator, Front Coil Spring, Lower[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
48158-30020 |
from US $4.80 |
||
|
48158C
|
48158C
48158-30020 Insulator, Front Coil Spring, Lower[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
48158-30020 |
from US $4.80 |
||
|
48510
|
48510
48510-80565
Absorber Assy, Shock, Front Rh
[03.2012 - 01.2014] GWL10 マーク ４８５１０−３０Ｂ００ |
48510-80565 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-80679 Absorber Assy, Shock, Front Rh[03.2012 - 01.2014] GWL10 マーク ４８５１０−３０Ｂ００ |
48510-80679 |
from US $413.09 |
||
|
48510
|
48510
48510-80679 Absorber Assy, Shock, Front Rh[01.2014 - 09.2014] GWL10 マーク ４８５１０−３０Ｂ０１; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０１,Ｆ ＳＰＯＲＴ; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０１,ｖｅｒｓｉｏｎ Ｌ |
48510-80679 |
from US $413.09 |
||
|
48510
|
48510
48510-80707
Absorber Assy, Shock, Front Rh
[09.2014 - 10.2014] GWL10 マーク ４８５１０−３０Ｂ０２; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０２,Ｆ ＳＰＯＲＴ; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０２,ｖｅｒｓｉｏｎ Ｌ; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０２,Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ |
48510-80707 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-80765 Absorber Assy, Shock, Front Rh[09.2014 - 10.2014] GWL10 マーク ４８５１０−３０Ｂ０２; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０２,Ｆ ＳＰＯＲＴ; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０２,ｖｅｒｓｉｏｎ Ｌ; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０２,Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ |
48510-80765 |
from US $429.52 |
||
|
48510
|
48510
48510-80765 Absorber Assy, Shock, Front Rh[10.2014 - 10.2015] GWL10 マーク ４８５１０−３０Ｂ０３; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０３,Ｆ ＳＰＯＲＴ; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０３,ｖｅｒｓｉｏｎ Ｌ; AWL10,GRL10,11 マーク ４８５１０−３０Ｂ０３,Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ |
48510-80765 |
from US $429.52 |
||
|
48510
|
48510
48510-80789 Absorber Assy, Shock, Front Rh[10.2015 -] GWL10 マーク ４８５１０−３０Ｄ８０; ARL10,AWL10,GRL11,12 マーク ４８５１０−３０Ｄ８０,Ｆ ＳＰＯＲＴ; ARL10,AWL10,GRL11,12 マーク ４８５１０−３０Ｄ８０,ｖｅｒｓｉｏｎ Ｌ |
48510-80789 |
from US $411.80 |
||
|
48519B
|
48519B
48519-30030 Bracket, Actuator Support, Front Rh[03.2012 - 10.2015] GWL10 |
48519-30030 |
US $4.96 |
||
|
48519C
|
48519C
48519-30030 Bracket, Actuator Support, Front Rh[03.2012 - 10.2015] GWL10 |
48519-30030 |
US $4.96 |
||
|
48520
|
48520
48520-80285
Absorber Assy, Shock, Front Lh
[03.2012 - 01.2014] GWL10 マーク ４８５２０−３０４８０ |
48520-80285 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-80375 Absorber Assy, Shock, Front Lh[03.2012 - 01.2014] GWL10 マーク ４８５２０−３０４８０ |
48520-80375 |
from US $423.25 |
||
|
48520
|
48520
48520-80375 Absorber Assy, Shock, Front Lh[01.2014 - 09.2014] GWL10 マーク ４８５２０−３０４８１; AWL10,GRL10,11 マーク ４８５２０−３０４８１,Ｆ ＳＰＯＲＴ; AWL10,GRL10,11 マーク ４８５２０−３０４８１,ｖｅｒｓｉｏｎ Ｌ |
48520-80375 |
from US $423.25 |
||
|
48520
|
48520
48520-80401
Absorber Assy, Shock, Front Lh
[09.2014 - 10.2014] GWL10 マーク ４８５２０−３０４８２; AWL10,GRL10,11 マーク ４８５２０−３０４８２,Ｆ ＳＰＯＲＴ; AWL10,GRL10,11 マーク ４８５２０−３０４８２,ｖｅｒｓｉｏｎ Ｌ; AWL10,GRL10,11 マーク ４８５２０−３０４８２,Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ |
48520-80401 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-80442 Absorber Assy, Shock, Front Lh[09.2014 - 10.2014] GWL10 マーク ４８５２０−３０４８２; AWL10,GRL10,11 マーク ４８５２０−３０４８２,Ｆ ＳＰＯＲＴ; AWL10,GRL10,11 マーク ４８５２０−３０４８２,ｖｅｒｓｉｏｎ Ｌ; AWL10,GRL10,11 マーク ４８５２０−３０４８２,Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ |
48520-80442 |
from US $429.52 |
||
|
48520
|
48520
48520-80442 Absorber Assy, Shock, Front Lh[10.2014 - 10.2015] GWL10 マーク ４８５２０−３０４８３; AWL10,GRL10,11 マーク ４８５２０−３０４８３,Ｆ ＳＰＯＲＴ; AWL10,GRL10,11 マーク ４８５２０−３０４８３,ｖｅｒｓｉｏｎ Ｌ; AWL10,GRL10,11 マーク ４８５２０−３０４８３,Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ |
48520-80442 |
from US $429.52 |
||
|
48520
|
48520
48520-80465 Absorber Assy, Shock, Front Lh[10.2015 -] GWL10 マーク ４８５２０−３０７８０; ARL10,AWL10,GRL11,12 マーク ４８５２０−３０７８０,Ｆ ＳＰＯＲＴ; ARL10,AWL10,GRL11,12 マーク ４８５２０−３０７８０,ｖｅｒｓｉｏｎ Ｌ |
48520-80465 |
from US $412.25 |
||
|
48553
|
48553
48553-30100 Cap, Shock Absorber, Upper[03.2012 - 10.2015] GWL10 |
48553-30100 |
US $17.02 |
||
|
48553B
|
48553B
90179-10174 Nut(For Front Pneumatic Cylinder)[03.2012 - 10.2015] GWL10 |
90179-10174 |
US $1.44 |
||
|
48603A
|
48603A
90178-10014 Nut(For Front Suspension Support)[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
90178-10014 |
from US $1.19 |
||
|
48680
|
48680
48680-24100 Support Assy, Front Suspension[09.2014 - 10.2015] GWL10; AWL10,GRL10,11 Ｆ ＳＰＯＲＴ; AWL10,GRL10,11 ｖｅｒｓｉｏｎ Ｌ; AWL10,GRL10,11 Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ |
48680-24100 |
from US $76.96 |
||
|
48680
|
48680
48680-30480 Support Assy, Front Suspension[03.2012 - 10.2012] GWL10 |
48680-30480 |
US $84.45 |
||
| replacement | |||||
|
48680
|
48680
48680-30481 Support Assy, Front Suspension[03.2012 - 10.2012] GWL10 |
48680-30481 |
from US $112.48 |
||
|
48680
|
48680
48680-30481 Support Assy, Front Suspension[11.2012 - 09.2014] GWL10; GRL10..8FC;AWL10,GRL11 Ｆ ＳＰＯＲＴ; GRL10..8FC;AWL10,GRL11 ｖｅｒｓｉｏｎ Ｌ |
48680-30481 |
from US $112.48 |
||
|
48810
|
48810
48810-30090 Link Assy, Front Stabilizer, Lh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
48810-30090 |
from US $55.02 |
||
|
48811
|
48811
48811-30800 Bar, Stabilizer, Front[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
48811-30800 |
US $103.38 |
||
|
48811
|
48811
48811-30840 Bar, Stabilizer, Front[10.2015 -] ARL10,AWL10,GRL12,GWL10 |
48811-30840 |
US $93.18 |
||
|
48815
|
48815
48815-24100 Bush, Front Stabilizer Bar, No.1[10.2015 -] ARL10,AWL10,GRL12,GWL10 |
48815-24100 |
from US $15.20 |
||
|
48815
|
48815
48815-30650 Bush, Front Stabilizer Bar, No.1[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
48815-30650 |
from US $15.20 |
||
|
48820A
|
48820A
94151-21241 Nut(For Front Stabilizer Link)[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
94151-21241 |
from US $1.01 |
||
|
48820B
|
48820B
48820-30110 Link Assy, Front Stabilizer, Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
48820-30110 |
from US $55.02 |
||
|
48824A
|
48824A
48809-30130 Bracket, Front Stabilizer[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
48809-30130 |
US $16.57 |
||
|
48827
|
48827
48824-30150 Bracket, Front Stabilizer, No.2 Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
48824-30150 |
US $15.03 |
||
|
48828
|
48828
48824-30150 Bracket, Front Stabilizer, No.2 Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
48824-30150 |
US $15.03 |
||
|
48829A
|
48829A
48809-30130 Bracket, Front Stabilizer[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
48809-30130 |
US $16.57 |
||
|
53729H
|
53729H
53729-53020 Reinforcement, Front Spring Support, No.3[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
53729-53020 |
from US $8 |
||
|
91672L1490
|
91672L1490
91672-L1490 New Genuine Part |
91672-L1490 |
US $7.20 |
||
|
9011910965
|
9011910965
90119-10965 BOLT WWASHER |
90119-10965 |
US $1.60 |
||
|
9017712002
|
9017712002
90177-12002 Nut |
90177-12002 |
US $1.44 |
||
|
9017914045
|
9017914045
90179-14045 Nut(For Front Shock Absorber Bracket Lower) |
90179-14045 |
from US $1.50 |
||
