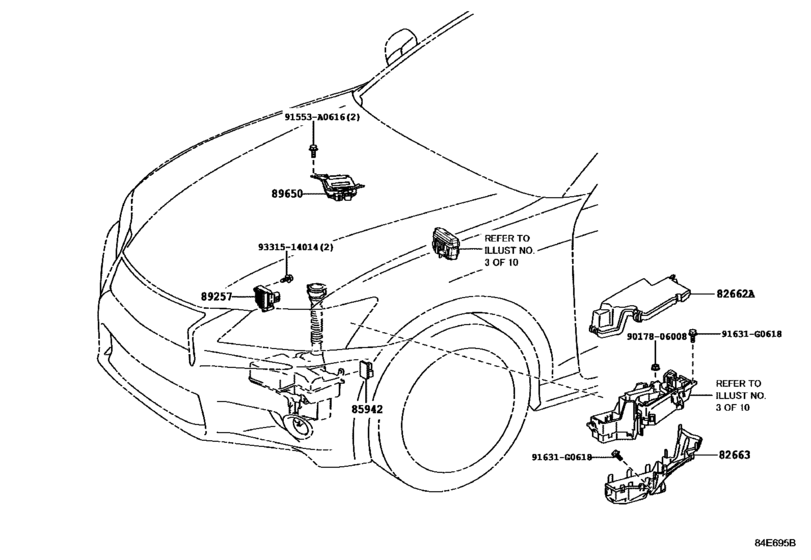

Switch & Relay & Computer ([03.2012 - ] ENGINE ROOM (1203- )AWL10,GWL10..LHD) Diagram Toyota LEXUS GS
- Year
- 2012 - 2018
- Sales region
- General
- Frame
- GWL10
- ENGINE
- 2GRFXE
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- GS450 Hybrid
- From
- 04.2012
- Vehicle Model
- GS450 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82662A
|
82662A
82662-30890 Cover, Relay Block, Upper, No.1[03.2012 - 09.2013] GWL10 |
82662-30890 |
US $50.67 |
||
|
82662A
|
82662A
82662-30C10 Cover, Relay Block, Upper, No.1[10.2015 -] AWL10,GWL10 |
82662-30C10 |
US $52.36 |
||
|
82662A
|
82662A
82662-30C80 Cover, Relay Block, Upper, No.1[09.2013 - 10.2015] AWL10,GWL10 |
82662-30C80 |
US $50.67 |
||
|
82663
|
82663
82663-30330 Cover, Relay Block, Lower[03.2012 - 10.2015] AWL10,GWL10 |
82663-30330 |
US $48.19 |
||
|
85942
|
85942
85942-30040 Relay, Cleaner Control[09.2013 - 10.2015] AWL10,GRL1#,GWL10..ARL,GEN; GRL10,11,GWL10..GCC HEADLAMP CLEANER-WITH |
85942-30040 |
from US $52.62 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[01.2012 - 09.2013] GRL1#,GWL10..ARL,GEN; GRL10,11,GWL10..GCC HEADLAMP CLEANER-WITH |
85942-58010 |
from US $115.77 |
||
|
85942
|
85942
90987-02027 Relay[10.2015 -] ARL10,AWL10,GRL12,GWL10..ARL,GEN; ARL10,GRL12,GWL10..GCC HEADLAMP CLEANER-WITH |
90987-02027 |
from US $44.54 |
||
|
89257
|
89257
89257-30110 Computer, Cooling Fan[01.2012 - 10.2015] AWL10;GRL10,11,GWL10..GCC; GRL10,11,GWL10..RHD..GEN SINGAPORE SPEC; GRL10,11,GWL10..RHD..GEN MALAYSIA SPEC; GRL10,GWL10..RHD..GEN INDONESIA SPEC; GRL10,11,GWL10..RHD..GEN THAILAND SPEC; GRL10..RHD..GEN SOUTH AFRICA SPEC&TOWING PACKAGE- |
89257-30110 |
US $195.84 |
||
|
89650
|
89650
89650-30A30 Computer Assy, Power Steering[03.2012 - 09.2013] GWL10..LHD |
89650-30A30 |
US $710.53 |
||
|
89650
|
89650
89650-30A31
Computer Assy, Power Steering
[09.2013 - 10.2015] GWL10..LHD |
89650-30A31 |
— | ||
|
89650
|
89650
89650-30A40
Computer Assy, Power Steering
[03.2012 - 09.2013] GWL10..LHD F SPORT&LDH-WITH |
89650-30A40 |
— | ||
|
89650
|
89650
89650-30A41
Computer Assy, Power Steering
[09.2013 - 10.2015] GWL10..LHD F SPORT&LDH-WITH |
89650-30A41 |
— | ||
|
89650
|
89650
89650-30C60
Computer Assy, Power Steering
[10.2015 -] AWL10,GWL10..LHD |
89650-30C60 |
— | ||
|
89650
|
89650
89650-30C80
Computer Assy, Power Steering
[10.2015 -] GWL10..LHD F SPORT&LDH-WITH |
89650-30C80 |
— | ||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $0.96 |
||
|
91631G0618
|
91631G0618
91631-G0618 New Genuine Part |
91631-G0618 |
US $0.44 |
||
|
9017806008
|
9017806008
90178-06008 NUT FLANGE |
90178-06008 |
US $0.96 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
