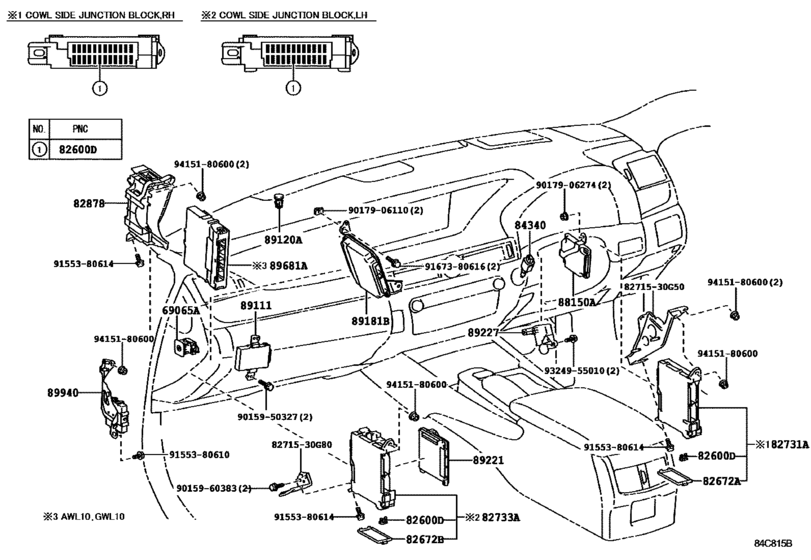

Switch & Relay & Computer ([03.2012 - ] COWL (1203- )RHD) Diagram Toyota LEXUS GS
- Year
- 2012 - 2018
- Sales region
- Europe
- Frame
- GWL10
- grade
- ECO
- ENGINE
- 2GRFXE
- TRANSMISSION
- CVT
- Model
- GS450 Hybrid
- From
- 03.2012
- Vehicle Model
- GS450 Hybrid
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69065A
|
69065A
69065-12460 Cylinder Sub-Assy, Air Bag Cut Off Switch[09.2012 - 10.2015] AWL10,GRL1#,GWL10 |
69065-12460 |
US $38.88 |
||
|
69065A
|
69065A
69065-52050 Cylinder Sub-Assy, Air Bag Cut Off Sw[01.2012 - 08.2012] GRL1#,GWL10 |
69065-52050 |
US $42.81 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[01.2012 - 10.2015] AWL10,GRL1#,GWL10 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[01.2012 - 10.2015] AWL10,GRL1#,GWL10 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[01.2012 - 10.2015] AWL10,GRL1#,GWL10 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[01.2012 - 10.2015] AWL10,GRL1#,GWL10 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[01.2012 - 10.2015] AWL10,GRL1#,GWL10 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[01.2012 - 10.2015] AWL10,GRL1#,GWL10 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[01.2012 - 10.2015] AWL10,GRL1#,GWL10 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672A
|
82672A
82672-30380 Cover, Junction Block[03.2012 - 10.2015] AWL10,GRL11,GWL10..RHD |
82672-30380 |
US $3.93 |
||
|
82672A
|
82672A
82672-30510 Cover, Junction Block[10.2015 -] AWL10,GWL10..RHD |
82672-30510 |
US $3.49 |
||
|
82672B
|
82672B
82672-30400 Cover, Junction Block[03.2012 - 10.2015] AWL10,GRL11,GWL10..RHD |
82672-30400 |
US $3.93 |
||
|
82672B
|
82672B
82672-30530 Cover, Junction Block[10.2015 -] AWL10,GWL10..RHD |
82672-30530 |
US $3.49 |
||
|
82731A
|
82731A
82730-30L40 Block, Cowl Side Junction, Rh[03.2012 - 10.2015] AWL10,GRL11,GWL10..RHD |
82730-30L40 |
US $182 |
||
|
82731A
|
82731A
82730-30M30 Block, Cowl Side Junction, Rh[10.2015 -] AWL10,GWL10..RHD |
82730-30M30 |
US $164.53 |
||
|
82733A
|
82733A
82730-30L60 Block, Cowl Side Junction, Lh[03.2012 - 10.2015] AWL10,GRL11,GWL10..RHD |
82730-30L60 |
US $182 |
||
|
82733A
|
82733A
82730-30M10 Block, Cowl Side Junction, Lh[10.2015 -] AWL10,GWL10..RHD |
82730-30M10 |
US $164.53 |
||
|
82878
|
82878
82878-30020 Box, Computer Integration, Lh[03.2012 - 10.2015] AWL10,GRL11,GWL10..RHD |
82878-30020 |
US $53.44 |
||
|
84340
|
84340
84340-30130 Switch Assy, Stop Lamp[01.2012 - 10.2015] AWL10,GRL1#,GWL10 |
84340-30130 |
from US $42.10 |
||
|
88150A
|
88150A
88150-30110
Computer Assy, Driving Support
[03.2012 - 04.2013] GWL10..STD VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR); GWL10 PRE-COLLISION SYSTEM-WITH |
88150-30110 |
— | ||
| replacement | |||||
|
88150A
|
88150A
88150-30111
Computer Assy, Driving Support
[03.2012 - 04.2013] GWL10..STD VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR); GWL10 PRE-COLLISION SYSTEM-WITH |
88150-30111 |
— | ||
|
88150A
|
88150A
88150-30111
Computer Assy, Driving Support
[05.2013 - 09.2013] GWL10..STD VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR); GWL10 PRE-COLLISION SYSTEM-WITH |
88150-30111 |
— | ||
|
88150A
|
88150A
88150-30170
Computer Assy, Driving Support
[09.2013 - 10.2014] GWL10..STD VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR); AWL10,GWL10 PRE-COLLISION SYSTEM-WITH; AWL10..STD PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR) |
88150-30170 |
— | ||
|
88150A
|
88150A
88150-30270
Computer Assy, Driving Support
[10.2014 - 10.2015] GWL10..STD VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR); AWL10,GWL10 PRE-COLLISION SYSTEM-WITH; AWL10..STD PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR) |
88150-30270 |
— | ||
|
88150A
|
88150A
88150-30320
Computer Assy, Driving Support
[10.2015 - 09.2016] AWL10,GWL10..RHD PRE-COLLISION SYSTEM-WITH |
88150-30320 |
— | ||
|
88150A
|
88150A
88150-30321
Computer Assy, Driving Support
[09.2016 - 09.2017] AWL10,GWL10..RHD PRE-COLLISION SYSTEM-WITH |
88150-30321 |
— | ||
|
89111
|
89111
89100-30100 Computer, Network Gateway[01.2012 - 08.2013] GRL15,GWL10 |
89100-30100 |
US $380.02 |
||
| replacement | |||||
|
89111
|
89111
89100-30181 Computer, Network Gateway[01.2012 - 08.2013] GRL15,GWL10 |
89100-30181 |
US $380.02 |
||
|
89111
|
89111
89100-30180 Computer, Network Gateway[09.2013 - 03.2014] AWL10,GRL15,GWL10; GRL11..LHD GERMANY SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH; GRL11..LHD GERMANY SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH; GRL11..LHD GERMANY SPEC&VERSION L&HEADLAMP-DISCHARGE & WITH(AFS & *AHB |
89100-30180 |
US $380.02 |
||
| replacement | |||||
|
89111
|
89111
89100-30181 Computer, Network Gateway[09.2013 - 03.2014] AWL10,GRL15,GWL10; GRL11..LHD GERMANY SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH; GRL11..LHD GERMANY SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH; GRL11..LHD GERMANY SPEC&VERSION L&HEADLAMP-DISCHARGE & WITH(AFS & *AHB |
89100-30181 |
US $380.02 |
||
|
89111
|
89111
89100-30181 Computer, Network Gateway[04.2014 - 10.2015] AWL10,GRL15,GWL10; GRL11..LHD GERMANY SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH; GRL11..LHD GERMANY SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH; GRL11..LHD GERMANY SPEC&VERSION L&HEADLAMP-DISCHARGE & WITH(AFS & *AHB |
89100-30181 |
US $380.02 |
||
|
89111
|
89111
89100-30230 Computer, Network Gateway[10.2015 - 01.2016] ARL10,AWL10,GRL16,GWL10 |
89100-30230 |
US $192.19 |
||
|
89111
|
89111
89100-30231 Computer, Network Gateway[02.2016 -] ARL10,AWL10,GRL16,GWL10 |
89100-30231 |
US $174.72 |
||
|
89120A
|
89120A
89121-50020 Sensor, Automatic Light Control[01.2012 - 10.2015] AWL10,GRL1#,GWL10 |
89121-50020 |
from US $108.04 |
||
|
89221
|
89221
89220-30440
Computer, Multiplex Network Body
[03.2012 - 09.2013] GRL11,GWL10..RHD UNITED KINGDOM SPEC |
89220-30440 |
— | ||
|
89221
|
89221
89220-30460
Computer, Multiplex Network Body
[03.2012 - 09.2013] GRL11,GWL10..RHD MALTA SPEC |
89220-30460 |
— | ||
|
89221
|
89221
89220-30480
Computer, Multiplex Network Body
[03.2012 - 09.2013] GRL11,GWL10..RHD |
89220-30480 |
— | ||
|
89221
|
89221
89220-30D80
Computer, Multiplex Network Body
[09.2013 - 09.2014] AWL10,GRL11,GWL10..RHD UNITED KINGDOM SPEC |
89220-30D80 |
— | ||
|
89221
|
89221
89220-30E00
Computer, Multiplex Network Body
[09.2013 - 09.2014] AWL10,GRL11,GWL10..RHD MALTA SPEC |
89220-30E00 |
— | ||
|
89221
|
89221
89220-30E20
Computer, Multiplex Network Body
[09.2013 - 09.2014] AWL10,GRL11,GWL10..RHD |
89220-30E20 |
— | ||
|
89221
|
89221
89220-30P00
Computer, Multiplex Network Body
[09.2014 - 10.2015] AWL10,GRL11,GWL10..RHD UNITED KINGDOM SPEC |
89220-30P00 |
— | ||
|
89221
|
89221
89220-30P20
Computer, Multiplex Network Body
[09.2014 - 10.2015] AWL10,GRL11,GWL10..RHD MALTA SPEC |
89220-30P20 |
— | ||
|
89221
|
89221
89220-30P40
Computer, Multiplex Network Body
[09.2014 - 10.2015] AWL10,GRL11,GWL10..RHD |
89220-30P40 |
— | ||
|
89221
|
89221
89220-3A160
Computer, Multiplex Network Body
[10.2015 -] AWL10,GWL10..RHD UNITED KINGDOM SPEC |
89220-3A160 |
— | ||
|
89221
|
89221
89220-3A170
Computer, Multiplex Network Body
[10.2015 -] AWL10,GWL10..RHD |
89220-3A170 |
— | ||
|
89221
|
89221
89220-3A180
Computer, Multiplex Network Body
[10.2015 - 09.2016] AWL10,GWL10..RHD IRELAND SPEC; AWL10,GWL10..RHD CYPRUS SPEC |
89220-3A180 |
— | ||
|
89221
|
89221
89220-3A590
Computer, Multiplex Network Body
[09.2016 -] AWL10,GWL10..RHD IRELAND SPEC |
89220-3A590 |
— | ||
|
89221
|
89221
89220-3A600
Computer, Multiplex Network Body
[09.2016 -] AWL10,GWL10..RHD CYPRUS SPEC |
89220-3A600 |
— | ||
|
89227
|
89227
89227-30060 Computer, Multiplex Tilt & Telescopic[01.2012 - 02.2013] GRL1#,GWL10 |
89227-30060 |
US $324.69 |
||
|
89227
|
89227
89227-53010 Computer, Multiplex Tilt & Telescopic[03.2013 - 10.2015] AWL10,GRL1#,GWL10 |
89227-53010 |
US $235.87 |
||
|
89681A
|
89681A
89681-30140
Computer, Power Management Control
[03.2012 - 09.2013] GWL10..ECO |
89681-30140 |
— | ||
|
89681A
|
89681A
89681-30250
Computer, Power Management Control
[09.2013 - 09.2014] GWL10..ECO |
89681-30250 |
— | ||
|
89681A
|
89681A
89681-30360
Computer, Power Management Control
[09.2014 - 10.2015] GWL10..ECO |
89681-30360 |
— | ||
|
89681A
|
89681A
89681-30440
Computer, Power Management Control
[10.2015 - 09.2016] GWL10..ECO |
89681-30440 |
— | ||
|
89681A
|
89681A
89681-30670
Computer, Power Management Control
[09.2016 -] GWL10..ECO |
89681-30670 |
— | ||
|
89940
|
89940
89940-30240
Computer Assy, Headlamp Swivel
[01.2012 - 10.2015] AWL10,GRL1#,GWL10 |
89940-30240 |
— | ||
|
8271530G50
|
8271530G50
82715-30G50 Bracket,wiring Harness Clamp |
82715-30G50 |
US $13.10 |
||
|
8271530G80
|
8271530G80
82715-30G80 Bracket,wiring Harness Clamp |
82715-30G80 |
US $7.57 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9324955010
|
9324955010
93249-55010 New Genuine Part |
93249-55010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
