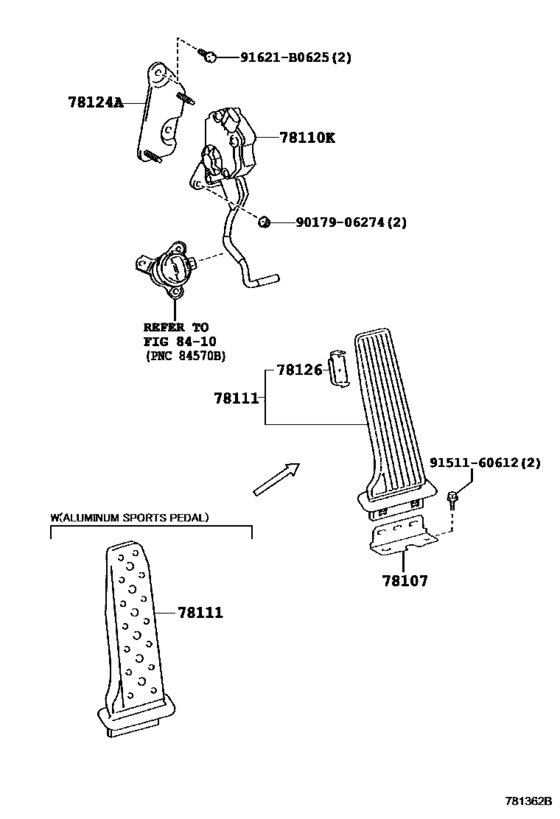

Accelerator Link ([01.2012 - 09.2013] (1201-1309)RHD) Diagram Toyota LEXUS GS
- Year
- 2012 - 2018
- Sales region
- General
- Frame
- GWL10
- ENGINE
- 2GRFXE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- GS450 Hybrid
- From
- 03.2012
- Vehicle Model
- GS450 Hybrid
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78107
|
78107
78108-30130 Bracket Sub-Assy, Accelerator Torque Rod[01.2012 - 09.2013] GRL10,11,GWL10 |
78108-30130 |
US $8.30 |
||
|
78110K
|
78110K
78110-30140 Sensor Assy, Accelerator Pedal[01.2012 - 06.2013] GRL10,11,GWL10..RHD |
78110-30140 |
US $101.92 |
||
| replacement | |||||
|
78110K
|
78110K
78110-30210 Sensor Assy, Accelerator Pedal[01.2012 - 06.2013] GRL10,11,GWL10..RHD |
78110-30210 |
US $91.73 |
||
|
78110K
|
78110K
78110-30141 Sensor Assy, Accelerator Pedal[07.2013 - 09.2015] AWL10,GRL10,11,GWL10..RHD |
78110-30141 |
US $101.92 |
||
| replacement | |||||
|
78110K
|
78110K
78110-30210 Sensor Assy, Accelerator Pedal[07.2013 - 09.2015] AWL10,GRL10,11,GWL10..RHD |
78110-30210 |
US $91.73 |
||
|
78110K
|
78110K
78110-30210 Sensor Assy, Accelerator Pedal[02.2016 -] ARL10,AWL10,GRL12,GWL10..RHD |
78110-30210 |
US $91.73 |
||
|
78111
|
78111
78101-30061 Pedal Assy, Accelerator[10.2015 -] ARL10,AWL10,GRL12,GWL10 F SPORT |
78101-30061 |
US $35.64 |
||
|
78111
|
78111
78101-30080 Pedal, Accelerator[01.2012 - 09.2013] GRL10,11,GWL10 F SPORT |
78101-30080 |
US $56.64 |
||
|
78111
|
78111
78101-53040 Pedal Assy, Accelerator[09.2013 - 06.2015] AWL10,GRL10,11,GWL10 F SPORT |
78101-53040 |
US $40.62 |
||
| replacement | |||||
|
78111
|
78111
78101-53041 Pedal Assy, Accelerator[09.2013 - 06.2015] AWL10,GRL10,11,GWL10 F SPORT |
78101-53041 |
US $39.27 |
||
|
78111
|
78111
78101-53041 Pedal Assy, Accelerator[07.2015 - 10.2015] AWL10,GRL10,11,GWL10 F SPORT; GRL10,11,GWL10..GCC THE CRAFTED LINE |
78101-53041 |
US $39.27 |
||
|
78111
|
78111
78101-53050 Pedal Assy, Accelerator[09.2013 - 06.2015] AWL10,GRL10,11,GWL10 |
78101-53050 |
US $16.02 |
||
| replacement | |||||
|
78111
|
78111
78101-53051 Pedal Assy, Accelerator[09.2013 - 06.2015] AWL10,GRL10,11,GWL10 |
78101-53051 |
US $14.56 |
||
|
78111
|
78111
78101-53051 Pedal Assy, Accelerator[07.2015 - 10.2015] AWL10,GRL10,11,GWL10 |
78101-53051 |
US $14.56 |
||
|
78111
|
78111
78111-30200 Pedal, Accelerator[01.2012 - 09.2013] GRL10,11,GWL10 |
78111-30200 |
US $12.08 |
||
|
78124A
|
78124A
78124-30130 Bracket, Accelerator Pedal Rod[01.2012 - 08.2012] GRL10,11,GWL10..RHD |
78124-30130 |
US $57.08 |
||
| replacement | |||||
|
78124A
|
78124A
78124-30131 Bracket, Accelerator Pedal Rod[01.2012 - 08.2012] GRL10,11,GWL10..RHD |
78124-30131 |
US $43.10 |
||
|
78124A
|
78124A
78124-30131 Bracket, Accelerator Pedal Rod[09.2012 - 10.2015] GRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD |
78124-30131 |
US $43.10 |
||
|
78126
|
78126
78126-30060 Bracket, Accelerator Pedal Rod[01.2012 - 09.2013] GRL10,11,GWL10 |
78126-30060 |
US $8.88 |
||
|
91621B0625
|
91621B0625
91621-B0625 New Genuine Part |
91621-B0625 |
US $0.69 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.38 |
||
