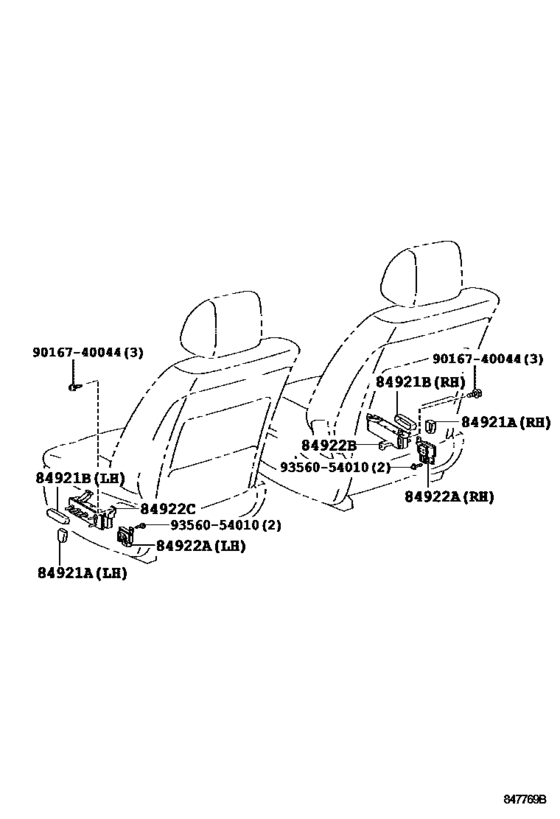

Switch & Relay & Computer ([02.2006 - ] ｼ-ﾄ (0602- )) Diagram Toyota LEXUS GS
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- GWS191
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- GS450 Hybrid
- From
- 02.2006
- To
- 12.2011
- Vehicle Model
- GS450 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84921A
|
84921A
84921-53030-A0 Knob, Power Seat Switch (For Reclining)[09.2007 - 09.2009] GWS191 IVORY,TRIM0#,右側 |
84921-53030-A0 |
US $5.53 |
||
| replacement | |||||
|
84921A
|
84921A
84921-53030-A3 Knob, Power Seat Switch (For Reclining)POWER SEAT SWITCH (FOR RECLINING) [09.2007 - 09.2009] GWS191 IVORY,TRIM0#,右側 |
84921-53030-A3 |
US $4.78 |
||
|
84921A
|
84921A
84921-53030-A3 Knob, Power Seat Switch (For Reclining)POWER SEAT SWITCH (FOR RECLINING) [09.2009 - 12.2011] GWS191 IVORY,TRIM0#,右側; GWS191 シート表皮−本革,IVORY,TRIM02,03,右側; GWS191 シート表皮−本革（セミアニリン）,IVORY,TRIM02,03,右側 |
84921-53030-A3 |
US $4.78 |
||
|
84921A
|
84921A
84921-53030-B3 Knob, Power Seat Switch (For Reclining)[09.2007 - 12.2011] GWS191 LT.GRAY,TRIM1#,右側 |
84921-53030-B3 |
US $5.53 |
||
|
84921A
|
84921A
84921-53030-C0 Knob, Power Seat Switch (For Reclining)[09.2007 - 12.2011] GWS191 BLACK,TRIM2#,右側; GWS191 シート表皮−本革,BLACK,TRIM04,2#,右側; GWS191 シート表皮−本革（セミアニリン）,BLACK,TRIM04,2#,右側 |
84921-53030-C0 |
US $5.44 |
||
|
84921A
|
84921A
84921-53040-A0 Knob, Power Seat Switch (For Reclining)[09.2007 - 09.2009] GWS191 IVORY,TRIM0#,左側 |
84921-53040-A0 |
US $5.53 |
||
| replacement | |||||
|
84921A
|
84921A
84921-53040-A3 Knob, Power Seat Switch (For Reclining)POWER SEAT SWITCH (FOR RECLINING) [09.2007 - 09.2009] GWS191 IVORY,TRIM0#,左側 |
84921-53040-A3 |
US $4.22 |
||
|
84921A
|
84921A
84921-53040-A3 Knob, Power Seat Switch (For Reclining)POWER SEAT SWITCH (FOR RECLINING) [09.2009 - 12.2011] GWS191 IVORY,TRIM0#,左側; GWS191 シート表皮−本革,IVORY,TRIM02,03,左側; GWS191 シート表皮−本革（セミアニリン）,IVORY,TRIM02,03,左側 |
84921-53040-A3 |
US $4.22 |
||
|
84921A
|
84921A
84921-53040-B3 Knob, Power Seat Switch (For Reclining)[09.2007 - 12.2011] GWS191 LT.GRAY,TRIM1#,左側 |
84921-53040-B3 |
US $5.53 |
||
|
84921A
|
84921A
84921-53040-C0 Knob, Power Seat Switch (For Reclining)[09.2007 - 12.2011] GWS191 BLACK,TRIM2#,左側; GWS191 シート表皮−本革,BLACK,TRIM04,2#,左側; GWS191 シート表皮−本革（セミアニリン）,BLACK,TRIM04,2#,左側 |
84921-53040-C0 |
US $5.44 |
||
|
84921A
|
84921A
84921-60110-A1 Knob, Power Seat Switch (For Reclining)[02.2006 - 09.2007] GWS191 シート表皮−本革,IVORY,TRIM0#,右側 |
84921-60110-A1 |
US $8.74 |
||
|
84921A
|
84921A
84921-60110-B4 Knob, Power Seat Switch (For Reclining)[02.2006 - 09.2007] GWS191 シート表皮−本革,GRAY,TRIM1#,右側 |
84921-60110-B4 |
US $12.06 |
||
|
84921A
|
84921A
84921-60110-C0 Knob, Power Seat Switch (For Reclining)[02.2006 - 09.2007] GWS191 BLACK,TRIM2#,右側 |
84921-60110-C0 |
US $10.13 |
||
|
84921A
|
84921A
84921-60120-A1 Knob, Power Seat Switch (For Reclining)[02.2006 - 09.2007] GWS191 シート表皮−本革,IVORY,TRIM0#,左側 |
84921-60120-A1 |
US $8.74 |
||
|
84921A
|
84921A
84921-60120-B6
Knob, Power Seat Switch (For Reclining)
[02.2006 - 09.2007] GWS191 シート表皮−本革,GRAY,TRIM1#,左側 |
84921-60120-B6 |
— | ||
| replacement | |||||
|
84921A
|
84921A
84921-60120-B0 Knob, Power Seat Switch (For Reclining)[02.2006 - 09.2007] GWS191 シート表皮−本革,GRAY,TRIM1#,左側 |
84921-60120-B0 |
US $12.06 |
||
|
84921A
|
84921A
84921-60120-C0 Knob, Power Seat Switch (For Reclining)[02.2006 - 09.2007] GWS191 BLACK,TRIM2#,左側 |
84921-60120-C0 |
from US $7.57 |
||
|
84921B
|
84921B
84921-53010-A0 Knob, Power Seat Switch (For Slide & Vertical)[09.2007 - 09.2009] GWS191 IVORY,TRIM0#,右側 |
84921-53010-A0 |
US $23.44 |
||
| replacement | |||||
|
84921B
|
84921B
84921-53010-A3 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [09.2007 - 09.2009] GWS191 IVORY,TRIM0#,右側 |
84921-53010-A3 |
US $18.24 |
||
|
84921B
|
84921B
84921-53010-A3 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [09.2009 - 12.2011] GWS191 IVORY,TRIM0#,右側; GWS191 シート表皮−本革,IVORY,TRIM02,03,右側; GWS191 シート表皮−本革（セミアニリン）,IVORY,TRIM02,03,右側 |
84921-53010-A3 |
US $18.24 |
||
|
84921B
|
84921B
84921-53010-B3 Knob, Power Seat Switch (For Slide & Vertical)[09.2007 - 12.2011] GWS191 LT.GRAY,TRIM1#,右側 |
84921-53010-B3 |
US $23.44 |
||
|
84921B
|
84921B
84921-53010-C0 Knob, Power Seat Switch (For Slide & Vertical)[09.2007 - 12.2011] GWS191 BLACK,TRIM2#,右側; GWS191 シート表皮−本革,BLACK,TRIM04,2#,右側; GWS191 シート表皮−本革（セミアニリン）,BLACK,TRIM04,2#,右側 |
84921-53010-C0 |
US $20.27 |
||
|
84921B
|
84921B
84921-53020-A0 Knob, Power Seat Switch (For Slide & Vertical)[09.2007 - 09.2009] GWS191 IVORY,TRIM0#,左側 |
84921-53020-A0 |
US $23.44 |
||
| replacement | |||||
|
84921B
|
84921B
84921-53020-A3 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [09.2007 - 09.2009] GWS191 IVORY,TRIM0#,左側 |
84921-53020-A3 |
US $18.24 |
||
|
84921B
|
84921B
84921-53020-A3 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [09.2009 - 12.2011] GWS191 IVORY,TRIM0#,左側; GWS191 シート表皮−本革,IVORY,TRIM02,03,左側; GWS191 シート表皮−本革（セミアニリン）,IVORY,TRIM02,03,左側 |
84921-53020-A3 |
US $18.24 |
||
|
84921B
|
84921B
84921-53020-B3 Knob, Power Seat Switch (For Slide & Vertical)[09.2007 - 12.2011] GWS191 LT.GRAY,TRIM1#,左側 |
84921-53020-B3 |
US $23.44 |
||
|
84921B
|
84921B
84921-53020-C0 Knob, Power Seat Switch (For Slide & Vertical)[09.2007 - 12.2011] GWS191 BLACK,TRIM2#,左側; GWS191 シート表皮−本革,BLACK,TRIM04,2#,左側; GWS191 シート表皮−本革（セミアニリン）,BLACK,TRIM04,2#,左側 |
84921-53020-C0 |
US $20.27 |
||
|
84921B
|
84921B
84921-60080-A1 Knob, Power Seat Switch (For Slide & Vertical)[02.2006 - 09.2007] GWS191 シート表皮−本革,IVORY,TRIM0#,左側 |
84921-60080-A1 |
US $9.17 |
||
|
84921B
|
84921B
84921-60080-B6
Knob, Power Seat Switch (For Slide & Vertical)
[02.2006 - 09.2007] GWS191 シート表皮−本革,GRAY,TRIM1#,左側 |
84921-60080-B6 |
— | ||
| replacement | |||||
|
84921B
|
84921B
84921-58020-B6 Knob, Power Seat Switch (For Slide & Vertical)[02.2006 - 09.2007] GWS191 シート表皮−本革,GRAY,TRIM1#,左側 |
84921-58020-B6 |
US $10.63 |
||
|
84921B
|
84921B
84921-60080-C0 Knob, Power Seat Switch (For Slide & Vertical)[02.2006 - 09.2007] GWS191 BLACK,TRIM2#,左側 |
84921-60080-C0 |
US $10.66 |
||
|
84921B
|
84921B
84921-60100-A1 Knob, Power Seat Switch (For Slide & Vertical)[02.2006 - 09.2007] GWS191 シート表皮−本革,IVORY,TRIM0#,右側 |
84921-60100-A1 |
US $9.17 |
||
|
84921B
|
84921B
84921-60100-B4 Knob, Power Seat Switch (For Slide & Vertical)[02.2006 - 09.2007] GWS191 シート表皮−本革,GRAY,TRIM1#,右側 |
84921-60100-B4 |
US $9.17 |
||
|
84921B
|
84921B
84921-60100-C0 Knob, Power Seat Switch (For Slide & Vertical)[02.2006 - 09.2007] GWS191 BLACK,TRIM2#,右側 |
84921-60100-C0 |
US $6.84 |
||
|
84922A
|
84922A
84920-30240-A0 Switch Assy, Power Seat Front, Rh[02.2006 - 09.2007] GWS191 IVORY,TRIM0#,右側 |
84920-30240-A0 |
US $44.99 |
||
|
84922A
|
84922A
84920-30240-A4 Switch, Front Power Seat(For Lumbar)FRONT POWER SEAT(FOR LUMBAR) [09.2009 - 12.2011] GWS191 IVORY,TRIM02,03,右側 |
84920-30240-A4 |
US $44.99 |
||
| replacement | |||||
|
84922A
|
84922A
84920-30240-A0 Switch Assy, Power Seat Front, Rh[09.2009 - 12.2011] GWS191 IVORY,TRIM02,03,右側 |
84920-30240-A0 |
US $44.99 |
||
|
84922A
|
84922A
84920-30240-B1 Switch, Front Power Seat(For Lumbar)[02.2006 - 09.2007] GWS191 GRAY,TRIM1#,右側 |
84920-30240-B1 |
US $44.99 |
||
|
84922A
|
84922A
84920-30240-B3 Switch, Front Power Seat(For Lumbar)[09.2007 - 12.2011] GWS191 LT.GRAY,TRIM1#,右側 |
84920-30240-B3 |
US $44.99 |
||
|
84922A
|
84922A
84920-30240-C0 Switch Assy, Power Seat Front, Rh[02.2006 - 09.2007] GWS191 BLACK,TRIM2#,右側 |
84920-30240-C0 |
US $37.42 |
||
|
84922A
|
84922A
84920-30250-A0 Switch Assy, Power Seat Front, Lh[02.2006 - 04.2007] GWS191 IVORY,TRIM0#,左側 |
84920-30250-A0 |
US $44.99 |
||
|
84922A
|
84922A
84920-30250-B0 Switch, Front Power Seat(For Lumbar)[02.2006 - 04.2007] GWS191 GRAY,TRIM1#,左側 |
84920-30250-B0 |
US $54.02 |
||
| replacement | |||||
|
84922A
|
84922A
84920-30250-C0 Switch Assy, Power Seat Front, Lh[02.2006 - 04.2007] GWS191 GRAY,TRIM1#,左側 |
84920-30250-C0 |
US $37.42 |
||
|
84922A
|
84922A
84920-30250-C0 Switch Assy, Power Seat Front, Lh[02.2006 - 04.2007] GWS191 BLACK,TRIM2#,左側 |
84920-30250-C0 |
US $37.42 |
||
|
84922A
|
84922A
84920-33050-A0
Switch, Front Power Seat(For Lumbar)
[04.2007 - 09.2007] GWS191 IVORY,TRIM0#,左側 |
84920-33050-A0 |
— | ||
| replacement | |||||
|
84922A
|
84922A
84920-33050-A1 Switch, Front Power Seat(For Lumbar)FRONT POWER SEAT(FOR LUMBAR) [04.2007 - 09.2007] GWS191 IVORY,TRIM0#,左側 |
84920-33050-A1 |
US $59.11 |
||
|
84922A
|
84922A
84920-33050-A1 Switch, Front Power Seat(For Lumbar)FRONT POWER SEAT(FOR LUMBAR) [09.2009 - 12.2011] GWS191 IVORY,TRIM02,03,左側 |
84920-33050-A1 |
US $59.11 |
||
|
84922A
|
84922A
84920-33050-B0 Switch, Front Power Seat(For Lumbar)[09.2007 - 12.2011] GWS191 LT.GRAY,TRIM1#,左側 |
84920-33050-B0 |
US $59.11 |
||
|
84922A
|
84922A
84920-33050-B1 Switch, Front Power Seat(For Lumbar)[04.2007 - 09.2007] GWS191 GRAY,TRIM1#,左側 |
84920-33050-B1 |
US $71.05 |
||
| replacement | |||||
|
84922A
|
84922A
84920-33050-B0 Switch, Front Power Seat(For Lumbar)[04.2007 - 09.2007] GWS191 GRAY,TRIM1#,左側 |
84920-33050-B0 |
US $59.11 |
||
|
84922A
|
84922A
84920-33050-C0 Switch, Front Power Seat(For Lumbar)[04.2007 - 09.2007] GWS191 BLACK,TRIM2#,左側 |
84920-33050-C0 |
US $59.11 |
||
|
84922B
|
84922B
84070-30030 Computer & Switch Assy, Position Control[02.2006 - 09.2007] GWS191 シート表皮−本革 |
84070-30030 |
US $483.39 |
||
|
84922B
|
84922B
84070-53031 Switch, Front Power Seat[02.2008 - 09.2008] GWS191 シート表皮−本革; GWS191 シート表皮−本革（セミアニリン） |
84070-53031 |
US $483.39 |
||
|
84922B
|
84922B
84070-53070 Switch, Front Power Seat[09.2008 - 12.2011] GWS191 シート表皮−本革; GWS191 シート表皮−本革（セミアニリン） |
84070-53070 |
US $334.88 |
||
|
84922B
|
84922B
84922-58010 Switch, Front Power Seat[02.2006 - 09.2007] GWS191 |
84922-58010 |
US $107.74 |
||
|
84922C
|
84922C
84070-30040 Switch, Front Power Seat, Lh[02.2006 - 09.2007] GWS191 シート表皮−本革 |
84070-30040 |
US $483.39 |
||
| replacement | |||||
|
84922C
|
84922C
84070-53041 Switch, Front Power Seat[02.2006 - 09.2007] GWS191 シート表皮−本革 |
84070-53041 |
US $483.39 |
||
|
84922C
|
84922C
84070-53041 Switch, Front Power Seat[02.2008 - 09.2008] GWS191 シート表皮−本革; GWS191 シート表皮−本革（セミアニリン） |
84070-53041 |
US $483.39 |
||
|
84922C
|
84922C
84070-53080 Switch, Front Power Seat[09.2008 - 12.2011] GWS191 シート表皮−本革; GWS191 シート表皮−本革（セミアニリン） |
84070-53080 |
US $334.88 |
||
|
84922C
|
84922C
84922-60120 Switch, Front Power Seat, Lh[02.2006 - 09.2007] GWS191 |
84922-60120 |
from US $91.73 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.12 |
||
