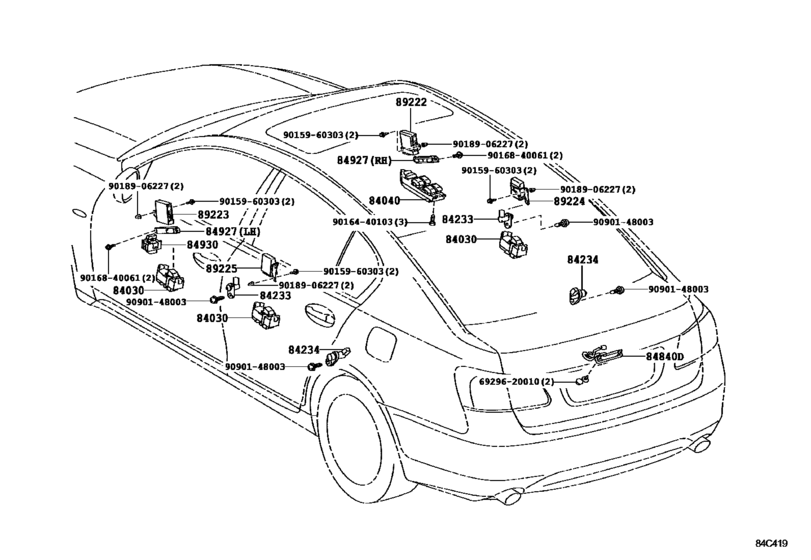

Switch & Relay & Computer ([02.2006 - ] ﾄﾞｱ & ﾙｰﾌ (0602- )) Diagram Toyota LEXUS GS
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- GWS191
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- GS450 Hybrid
- From
- 02.2006
- To
- 12.2011
- Vehicle Model
- GS450 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84030
|
84030
84030-30090 Switch Assy,multiplex Network[02.2006 - 09.2007] GWS191 |
84030-30090 |
US $269.36 |
||
|
84030
|
84030
84810-30170 Switch Assy,multiplex Network[09.2007 - 12.2011] GWS191 |
84810-30170 |
US $59.70 |
||
|
84040
|
84040
84040-30140 Master Switch Assy,multiplex Network[02.2006 - 09.2007] GWS191 |
84040-30140 |
US $458.64 |
||
|
84040
|
84040
84040-30150 Master Switch Assy,multiplex NetworkMULTIPLEX NETWORK [09.2009 - 12.2011] GWS191 |
84040-30150 |
US $278.10 |
||
|
84040
|
84040
84040-30210 Master Switch Assy,multiplex Network[09.2007 - 09.2009] GWS191 |
84040-30210 |
US $278.10 |
||
| replacement | |||||
|
84040
|
84040
84040-30150 Master Switch Assy,multiplex NetworkMULTIPLEX NETWORK [09.2007 - 09.2009] GWS191 |
84040-30150 |
US $278.10 |
||
|
84233
|
84233
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[10.2007 -] GWS191 |
84231-50190 |
from US $10.56 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[02.2006 - 09.2007] GWS191 |
84231-53010 |
from US $10.56 |
||
|
84234
|
84234
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[10.2007 -] GWS191 |
84231-50190 |
from US $10.56 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[02.2006 - 09.2007] GWS191 |
84231-53010 |
from US $10.56 |
||
|
84840D
|
84840D
84840-21010 Switch Assy, Luggage Compartment Door Opening[02.2006 - 09.2007] GWS191 |
84840-21010 |
from US $56.09 |
||
|
84927
|
84927
84927-30060 Switch, Seat Memory[02.2006 - 09.2007] GWS191 シート表皮−本革,右側 |
84927-30060 |
US $87.36 |
||
|
84927
|
84927
84927-30070 Switch, Seat Memory[02.2006 - 09.2007] GWS191 シート表皮−本革,左側 |
84927-30070 |
US $87.36 |
||
|
84927
|
84927
84927-30090 Switch, Seat Memory[09.2007 - 12.2011] GWS191 シート表皮−本革,右側; GWS191 シート表皮−本革（セミアニリン）,右側 |
84927-30090 |
US $72.80 |
||
|
84927
|
84927
84927-30100 Switch, Seat Memory[09.2007 - 12.2011] GWS191 シート表皮−本革,左側; GWS191 シート表皮−本革（セミアニリン）,左側 |
84927-30100 |
US $72.80 |
||
|
84930
|
84930
84930-30070 Switch Assy, Door Control[09.2007 - 12.2011] GWS191 |
84930-30070 |
US $37.13 |
||
|
84930
|
84930
84930-30090 Switch Assy, Door Control[02.2006 - 09.2007] GWS191 |
84930-30090 |
US $53.87 |
||
|
89222
|
89222
89222-30110 Computer, Multiplex Network Door, Front Rh[02.2006 - 09.2007] GWS191 |
89222-30110 |
US $457.18 |
||
|
89222
|
89222
89222-30170 Computer, Multiplex Network Door, Front Rh[09.2007 -] GWS191 |
89222-30170 |
US $380.02 |
||
| replacement | |||||
|
89222
|
89222
89222-30180 Computer, Multiplex Network Door, Front RhMULTIPLEX NETWORK DOOR, FRONT RH [09.2007 -] GWS191 |
89222-30180 |
US $378.56 |
||
|
89223
|
89223
89222-30110 Computer, Multiplex Network Door, Front Rh[02.2006 - 09.2007] GWS191 |
89222-30110 |
US $457.18 |
||
|
89223
|
89223
89222-30170 Computer, Multiplex Network Door, Front Rh[09.2007 -] GWS191 |
89222-30170 |
US $380.02 |
||
| replacement | |||||
|
89223
|
89223
89222-30180 Computer, Multiplex Network Door, Front RhMULTIPLEX NETWORK DOOR, FRONT RH [09.2007 -] GWS191 |
89222-30180 |
US $378.56 |
||
|
89224
|
89224
89224-30070 Computer, Multiplex Network Door, Rear Rh[02.2006 - 09.2007] GWS191 |
89224-30070 |
US $301.39 |
||
| replacement | |||||
|
89224
|
89224
89224-30080
Computer, Multiplex Network Door, Rear Rh
[02.2006 - 09.2007] GWS191 |
89224-30080 |
— | ||
|
89224
|
89224
89224-30100 Computer, Multiplex Network Door, Rear Rh[09.2007 -] GWS191 |
89224-30100 |
US $248.98 |
||
|
89225
|
89225
89225-30010 Computer, Multiplex Network Door, Rear Lh[02.2006 - 09.2007] GWS191 |
89225-30010 |
US $301.39 |
||
| replacement | |||||
|
89225
|
89225
89225-30020
Computer, Multiplex Network Door, Rear Lh
[02.2006 - 09.2007] GWS191 |
89225-30020 |
— | ||
|
89225
|
89225
89225-30040 Computer, Multiplex Network Door, Rear Lh[09.2007 -] GWS191 |
89225-30040 |
US $248.98 |
||
| replacement | |||||
|
89225
|
89225
89225-30050
Computer, Multiplex Network Door, Rear Lh
[09.2007 -] GWS191 |
89225-30050 |
— | ||
|
6929620010
|
6929620010
69296-20010 Screw, Door Inside Handle |
69296-20010 |
US $4.37 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
US $1.12 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
