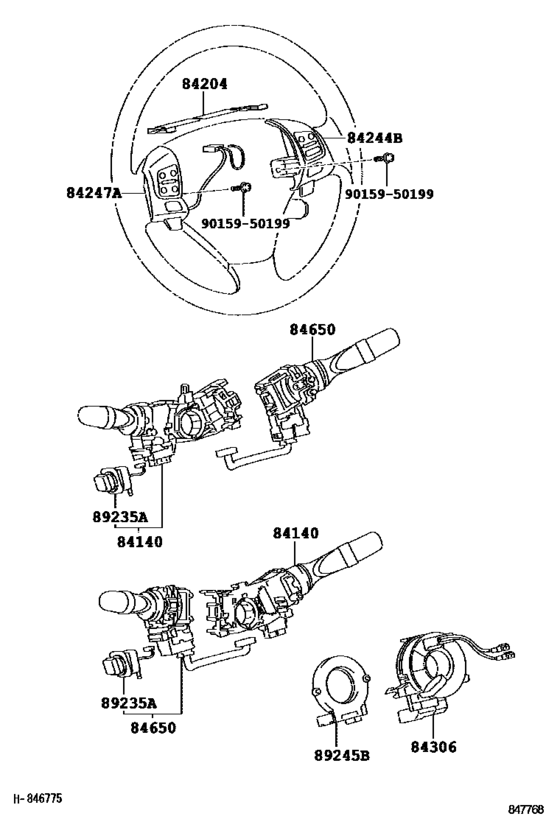

Switch & Relay & Computer ([02.2006 - 09.2007] IGNITION & COMBINATION SWITCH (0602-0709)) Diagram Toyota LEXUS GS
- Year
- 2006 - 2011
- Sales region
- General
- Frame
- GWS191
- ENGINE
- 2GRFSE
- Model
- GS450 Hybrid
- From
- 02.2006
- To
- 12.2011
- Vehicle Model
- GS450 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-30310 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [02.2006 - 09.2007] GWS191 |
84140-30310 |
US $198.02 |
||
| replacement | |||||
|
84140
|
84140
84140-30311 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [02.2006 - 09.2007] GWS191 |
84140-30311 |
from US $125.22 |
||
|
84140
|
84140
84140-30311 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2008 -] GWS191 |
84140-30311 |
from US $125.22 |
||
|
84204
|
84204
84204-33010 Cable Sub-Assy, Steering Pad Switch[02.2006 - 09.2007] GWS191 |
84204-33010 |
US $40.77 |
||
|
84244B
|
84244B
84244-30111-C0 Switch, Steering Pad, Rh[02.2006 - 09.2007] GWS191 BLACK,TRIM1#,2# |
84244-30111-C0 |
US $110.66 |
||
|
84244B
|
84244B
84244-30111-E0 Switch, Steering Pad, Rh[02.2006 - 09.2007] GWS191 ORCHID BROWN,TRIM0# |
84244-30111-E0 |
US $110.66 |
||
|
84244B
|
84244B
84244-30121-C0 Switch, Steering Pad, Rh[02.2006 - 09.2007] GWS191 PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),BLACK,TRIM1#,2# |
84244-30121-C0 |
US $120.85 |
||
|
84244B
|
84244B
84244-30121-E0 Switch, Steering Pad, Rh[02.2006 - 09.2007] GWS191 PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),ORCHID BROWN,TRIM0# |
84244-30121-E0 |
US $120.85 |
||
|
84247A
|
84247A
84247-30051-C0 Switch, Steering Pad, Lh[02.2006 - 09.2007] GWS191 BLACK,TRIM1#,2# |
84247-30051-C0 |
US $120.85 |
||
|
84247A
|
84247A
84247-30051-E0 Switch, Steering Pad, Lh[02.2006 - 09.2007] GWS191 ORCHID BROWN,TRIM0# |
84247-30051-E0 |
US $120.85 |
||
|
84306
|
84306
84306-48030 Cable Sub-Assy, Spiral[02.2006 - 09.2007] GWS191 |
84306-48030 |
US $166.55 |
||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[02.2006 - 09.2007] GWS191 |
84306-48031 |
from US $154.19 |
||
|
84650
|
84650
84652-30541 Switch Assy, Windshield WiperWINDSHIELD WIPER [02.2006 - 09.2007] GWS191 |
84652-30541 |
US $131.04 |
||
| replacement | |||||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [02.2006 - 09.2007] GWS191 |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2008 -] GWS191 |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30551 Switch Assy, Windshield WiperWINDSHIELD WIPER [02.2006 - 09.2007] GWS191 INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
84652-30551 |
US $136.86 |
||
| replacement | |||||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[02.2006 - 09.2007] GWS191 INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
84652-30552 |
— | ||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[08.2008 - 09.2008] GWS191 |
84652-30552 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[02.2006 - 09.2007] GWS191; GWS191..RHD NEW ZEALAND SPEC; GWS191..RHD NEW ZEALAND SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR); GWS191..RHD AUSTRALIA SPEC; GWS191..RHD AUSTRALIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-30070 Sensor, Steering[02.2006 - 09.2007] GWS191 |
89245-30070 |
US $247.68 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
