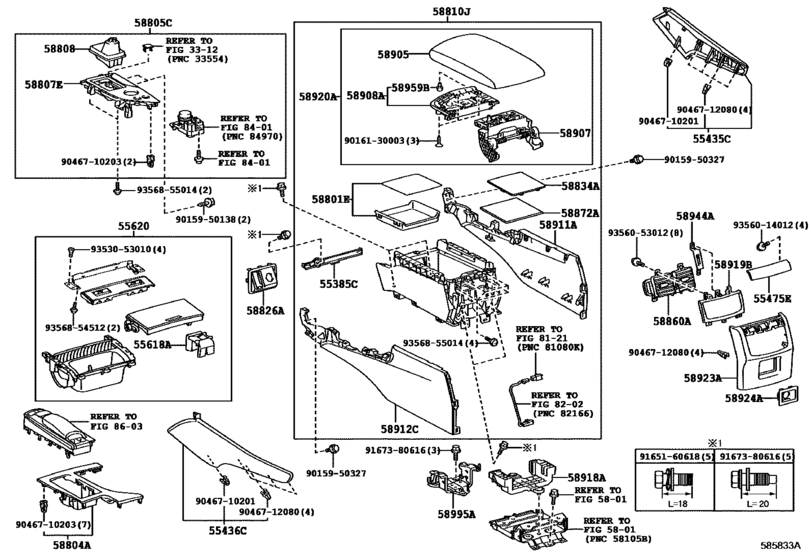

Console Box & Bracket ([10.2015 - ] (1510- )) Diagram Toyota LEXUS GS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- URL10
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- GS F
- From
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55385C
|
55385C
55385-30100 Bracket, Console Box Mounting, No.5[10.2015 -] URL10 |
55385-30100 |
US $7.86 |
||
|
55435C
|
55435C
55435-30340-C5 Panel, Instrument Panel Finish, End Rh[10.2015 -] URL10 BLACK/WHITE,TRIM0# |
55435-30340-C5 |
US $87.36 |
||
|
55435C
|
55435C
55435-30340-C6 Panel, Instrument Panel Finish, End Rh[10.2015 -] URL10 BLACK/BLACK,TRIM2# |
55435-30340-C6 |
US $87.36 |
||
|
55435C
|
55435C
55435-30340-C7 Panel, Instrument Panel Finish, End Rh[10.2015 -] URL10 BLACK/RED,TRIM3# |
55435-30340-C7 |
US $87.36 |
||
|
55435C
|
55435C
55435-30340-C8 Panel, Instrument Panel Finish, End Rh[10.2015 -] URL10 BLACK/ORANGE,TRIM4# |
55435-30340-C8 |
US $87.36 |
||
|
55436C
|
55436C
55436-30230-C5 Panel, Instrument Panel Finish, End Lh[10.2015 -] URL10 BLACK/WHITE,TRIM0# |
55436-30230-C5 |
US $87.36 |
||
|
55436C
|
55436C
55436-30230-C6 Panel, Instrument Panel Finish, End Lh[10.2015 -] URL10 BLACK/BLACK,TRIM2# |
55436-30230-C6 |
US $87.36 |
||
|
55436C
|
55436C
55436-30230-C7 Panel, Instrument Panel Finish, End Lh[10.2015 -] URL10 BLACK/RED,TRIM3# |
55436-30230-C7 |
US $87.36 |
||
|
55436C
|
55436C
55436-30230-C8 Panel, Instrument Panel Finish, End Lh[10.2015 -] URL10 BLACK/ORANGE,TRIM4# |
55436-30230-C8 |
US $87.36 |
||
|
55475E
|
55475E
55475-30190-B0 Garnish, Instrument Cluster Finish Panel, Center[10.2015 -] URL10 MD.SILVER,TRIM0#,2#,3#,4# |
55475-30190-B0 |
US $160.16 |
||
|
55475E
|
55475E
55475-30200-C0 Garnish, Instrument Cluster Finish Panel, Center[10.2015 -] URL10 パッケージ オプション １−カーボンインテリア（３Ｋアヤオリ）,BLACK,TRIM0#,2#,3#, 4# |
55475-30200-C0 |
US $176.18 |
||
|
55475E
|
55475E
55475-30210-C0 Garnish, Instrument Cluster Finish Panel, Center[10.2015 -] URL10 パッケージ オプション １−カーボンインテリア（コンポジット）,BLACK,TRIM0#,2#,3#, 4# |
55475-30210-C0 |
US $192.19 |
||
|
55618A
|
55618A
55618-33010 Holder, Console Box Cup[10.2015 -] URL10 |
55618-33010 |
from US $20.52 |
||
| replacement | |||||
|
55618A
|
55618A
55618-06020 Holder, Console Box CupCONSOLE BOX CUP [10.2015 -] URL10 |
55618-06020 |
US $74.09 |
||
|
55620
|
55620
55620-30370-B0 Holder Assy, Instrument Panel Cup[10.2015 -] URL10 MD.SILVER,TRIM0#,2#,3#,4# |
55620-30370-B0 |
US $576.58 |
||
|
55620
|
55620
55620-30390-C0 Holder Assy, Instrument Panel Cup[10.2015 -] URL10 パッケージ オプション １−カーボンインテリア（３Ｋアヤオリ）,BLACK,TRIM0#,2#,3#, 4# |
55620-30390-C0 |
US $633.36 |
||
|
55620
|
55620
55620-30410-C0 Holder Assy, Instrument Panel Cup[10.2015 -] URL10 パッケージ オプション １−カーボンインテリア（コンポジット）,BLACK,TRIM0#,2#,3#, 4# |
55620-30410-C0 |
US $691.60 |
||
|
58801E
|
58801E
58801-30290 Box Sub-Assy, Console, Upper[10.2015 -] URL10 |
58801-30290 |
US $37.65 |
||
|
58804A
|
58804A
58804-30820-B0 Panel Sub-Assy, Console, Upper[10.2015 -] URL10 MD.SILVER,TRIM0#,2#,3#,4# |
58804-30820-B0 |
US $438.26 |
||
|
58804A
|
58804A
58804-30830-C0 Panel Sub-Assy, Console, Upper[10.2015 -] URL10 パッケージ オプション １−カーボンインテリア（３Ｋアヤオリ）,BLACK,TRIM0#,2#,3#, 4# |
58804-30830-C0 |
US $481.94 |
||
|
58804A
|
58804A
58804-30840-C0 Panel Sub-Assy, Console, Upper[10.2015 -] URL10 パッケージ オプション １−カーボンインテリア（コンポジット）,BLACK,TRIM0#,2#,3#, 4# |
58804-30840-C0 |
US $525.62 |
||
|
58805C
|
58805C
58805-30570-C0 Panel Sub-Assy, Console, Upper Rear[10.2015 - 09.2016] URL10 BLACK/BLUE,TRIM0#,2#,3# |
58805-30570-C0 |
US $263.54 |
||
|
58805C
|
58805C
58805-30570-C1 Panel Sub-Assy, Console, Upper Rear[10.2015 - 09.2016] URL10 BLACK/ORANGE,TRIM4# |
58805-30570-C1 |
US $263.54 |
||
|
58805C
|
58805C
58805-30830-C0
Panel Sub-Assy, Console, Upper Rear
[09.2016 -] URL10 BLACK/BLUE,TRIM0#,2#,3# |
58805-30830-C0 |
— | ||
|
58805C
|
58805C
58805-30830-C1
Panel Sub-Assy, Console, Upper Rear
[09.2016 -] URL10 BLACK/ORANGE,TRIM4# |
58805-30830-C1 |
— | ||
|
58807E
|
58807E
58807-30530 Frame Sub-Assy, Shifting Hole[10.2015 - 09.2016] URL10 |
58807-30530 |
US $141.23 |
||
|
58807E
|
58807E
58807-30560
Frame Sub-Assy, Shifting Hole
[09.2016 -] URL10 |
58807-30560 |
— | ||
|
58808
|
58808
58808-30220-C0 Cover Sub-Assy, Shifting Hole[10.2015 -] URL10 BLACK/BLUE,TRIM0#,2#,3# |
58808-30220-C0 |
US $23.44 |
||
|
58808
|
58808
58808-30220-C1 Cover Sub-Assy, Shifting Hole[10.2015 -] URL10 BLACK/ORANGE,TRIM4# |
58808-30220-C1 |
US $23.44 |
||
|
58810J
|
58810J
58810-30D20-C0 Box Assy, Console[10.2015 -] URL10 BLACK,TRIM0#,2#,3#,4# |
58810-30D20-C0 |
US $583.86 |
||
|
58826A
|
58826A
58826-30160 Pocket, Console Box, Lower[10.2015 -] URL10 |
58826-30160 |
US $9.17 |
||
|
58834A
|
58834A
58834-30090 Cover, Console, Lower[10.2015 -] URL10 |
58834-30090 |
US $17.18 |
||
|
58860A
|
58860A
58860-30070-C0 Register Assy, Console Box[10.2015 -] URL10 BLACK,TRIM0#,2#,3#,4# |
58860-30070-C0 |
US $58.82 |
||
|
58872A
|
58872A
58872-30080 Cushion, Console Box, No.2[10.2015 -] URL10 |
58872-30080 |
US $2.62 |
||
|
58905
|
58905
58905-30730-C0 Door Sub-Assy, Console Compartment[10.2015 -] URL10 BLACK,TRIM0#,2#,3#,4# |
58905-30730-C0 |
US $243.15 |
||
|
58907
|
58907
58907-30180 Hinge Sub-Assy, Console Compartment Door[10.2015 -] URL10 |
58907-30180 |
US $80.08 |
||
|
58908A
|
58908A
58908-30140 Lock Sub-Assy, Console Compartment Door[10.2015 -] URL10 |
58908-30140 |
US $32.32 |
||
|
58911A
|
58911A
58911-30240-C0 Panel, Box Side, No.1[10.2015 -] URL10 BLACK,TRIM0#,2#,3#,4# |
58911-30240-C0 |
US $71.93 |
||
|
58912C
|
58912C
58912-30280-C0 Panel, Box Side, No.1[10.2015 -] URL10 BLACK,TRIM0#,2#,3#,4# |
58912-30280-C0 |
US $71.93 |
||
|
58918A
|
58918A
58918-30070 Bracket, Box Support[10.2015 -] URL10 |
58918-30070 |
US $75.71 |
||
|
58919B
|
58919B
58919-30090 Plate, Console Box[10.2015 -] URL10 |
58919-30090 |
US $22.13 |
||
|
58920A
|
58920A
58920-30310-C0 Armrest Assy, Rear Console[10.2015 -] URL10 BLACK,TRIM0#,2#,3#,4# |
58920-30310-C0 |
US $320.32 |
||
|
58923A
|
58923A
58923-30190-C0 Panel, Console Rear End[10.2015 -] URL10 BLACK,TRIM0#,2#,3#,4# |
58923-30190-C0 |
US $32.76 |
||
|
58924A
|
58924A
58924-30110-C0 Panel, Console Rear End, No.2[10.2015 -] URL10 BLACK,TRIM0#,2#,3#,4# |
58924-30110-C0 |
US $3.20 |
||
|
58944A
|
58944A
58944-30110-C0 Cover, Console, Rear[10.2015 -] URL10 BLACK,TRIM0#,2#,3#,4# |
58944-30110-C0 |
US $5.39 |
||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[10.2015 -] URL10 |
58959-60060 |
from US $1.35 |
||
|
58995A
|
58995A
58995-30220 Bracket, Console Box Mounting, No.1[10.2015 -] URL10 |
58995-30220 |
US $17.76 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9016130003
|
9016130003
90161-30003 SCREW COUNTERSUNK |
90161-30003 |
US $0.52 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.96 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9353053010
|
9353053010
93530-53010 New Genuine Part |
93530-53010 |
US $0.79 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.12 |
||
|
9356053012
|
9356053012
93560-53012 New Genuine Part |
93560-53012 |
US $0.96 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
from US $0.84 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
