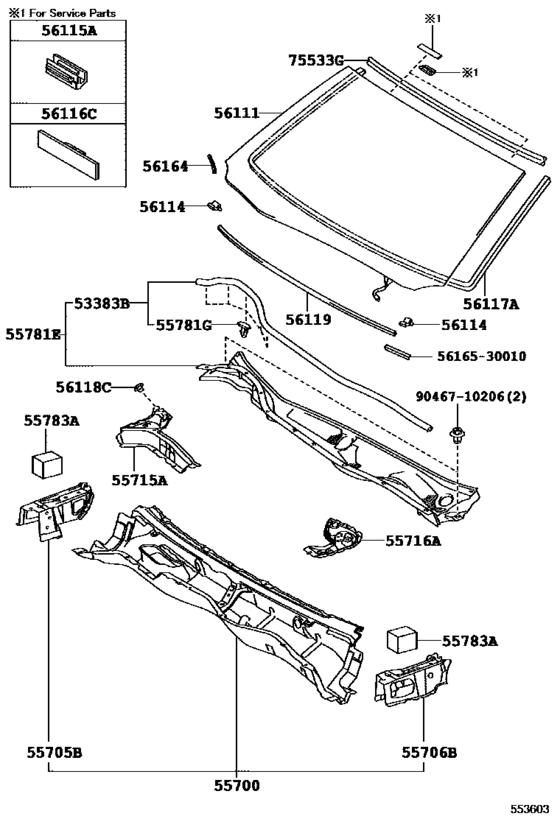

Cowl Panel & Windshield Glass ([10.2015 - ] (1510- )) Diagram Toyota LEXUS GS
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- URL10
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- GS F
- From
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-30250
Seal, Hood To Cowl Top
[10.2015 -] URL10 |
53383-30250 |
— | ||
|
55700
|
55700
55700-30A61
Panel Assy, Front
[10.2015 -] URL10 |
55700-30A61 |
— | ||
|
55705B
|
55705B
55705-30100 Panel Sub-Assy, Cowl Top Side, Rh[10.2015 -] URL10 |
55705-30100 |
US $43.10 |
||
|
55706B
|
55706B
55706-30100 Panel Sub-Assy, Cowl Top Side, Lh[10.2015 -] URL10 |
55706-30100 |
US $43.10 |
||
|
55715A
|
55715A
55715-30150
Brace, Cowl Top To Apron, Rh
[10.2015 -] URL10 |
55715-30150 |
— | ||
|
55716A
|
55716A
55716-30170
Brace, Cowl Top To Apron, Lh
[10.2015 -] URL10 |
55716-30170 |
— | ||
|
55781E
|
55781E
55708-30181
Louver Sub-Assy, Cowl Top Ventilator
[10.2015 -] URL10 |
55708-30181 |
— | ||
|
55781E
|
55781E
55708-30191
Louver Sub-Assy, Cowl Top Ventilator
[10.2015 -] URL10 COLD AREA SPEC |
55708-30191 |
— | ||
|
55781G
|
55781G
90467-08108 Clip(For Hood To Cowl Top Seal)[10.2015 -] URL10 |
90467-08108 |
from US $0.82 |
||
|
55783A
|
55783A
55783-30110 Spacer, Front Fender[10.2015 -] URL10 |
55783-30110 |
US $11.84 |
||
|
56111
|
56111
56101-3A930
Glass, Windshield
[10.2015 -] URL10; URL10 HEAD UP DISPLAY-WITH |
56101-3A930 |
— | ||
|
56111
|
56111
56101-3A932
Glass, Windshield
[09.2016 -] URL10 INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-3A932 |
— | ||
|
56111
|
56111
56101-3A933
Glass, Windshield
[10.2015 - 09.2016] URL10 INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-3A933 |
— | ||
|
56111
|
56111
56101-3A934
Glass, Windshield
[09.2016 -] URL10 WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-3A934 |
— | ||
|
56111
|
56111
56101-3A935
Glass, Windshield
[10.2015 - 09.2016] URL10 WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-3A935 |
— | ||
|
56111
|
56111
56101-3A936
Glass, Windshield
[09.2016 - 02.2017] URL10 PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-3A936 |
— | ||
|
56111
|
56111
56101-3A937
Glass, Windshield
[10.2015 - 09.2016] URL10 PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-3A937 |
— | ||
|
56111
|
56111
56101-3A938
Glass, Windshield
[09.2016 - 02.2017] URL10 PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RA IN SENSOR) |
56101-3A938 |
— | ||
|
56111
|
56111
56101-3A939
Glass, Windshield
[10.2015 - 09.2016] URL10 PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RA IN SENSOR) |
56101-3A939 |
— | ||
|
56111
|
56111
56101-3A953
Glass, Windshield
[02.2017 -] URL10 PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56101-3A953 |
— | ||
|
56111
|
56111
56101-3A954 Glass, Windshield[02.2017 -] URL10 PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLA Y-WITH |
56101-3A954 |
US $1,065.23 |
||
|
56111
|
56111
56101-3A955
Glass, Windshield
[02.2017 -] URL10 PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RA IN SENSOR) |
56101-3A955 |
— | ||
|
56111
|
56111
56101-3A956
Glass, Windshield
[02.2017 -] URL10 PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RA IN SENSOR)&HEAD UP DISPLAY-WITH |
56101-3A956 |
— | ||
|
56114
|
56114
56114-50020 Retainer, Windshield Glass[10.2015 -] URL10; URL10 HEAD UP DISPLAY-WITH |
56114-50020 |
US $5.12 |
||
|
56115A
|
56115A
56115-30120 Stopper, Windshield Glass, No.1[10.2015 -] URL10; URL10 HEAD UP DISPLAY-WITH |
56115-30120 |
from US $1.81 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[10.2015 -] URL10; URL10 HEAD UP DISPLAY-WITH |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[10.2015 -] URL10 *D,L=2919; URL10 *D,L=2919,PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIP ER-AUTO(RAIN SENSOR); URL10 *D,L=2919,PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR); URL10 *D,L=2919,WINDSHIELD D |
56117-64010 |
from US $22.50 |
||
|
56118C
|
56118C
56118-30120 Retainer, Windshield Glass, No.2[10.2015 -] URL10 |
56118-30120 |
US $2.48 |
||
|
56119
|
56119
56119-30020 Seal, Windshield Glass[10.2015 -] URL10; URL10 HEAD UP DISPLAY-WITH |
56119-30020 |
US $17.53 |
||
|
56164
|
56164
56164-30010 Cover, Front Window Inner Moulding, Rh[10.2015 -] URL10; URL10 HEAD UP DISPLAY-WITH |
56164-30010 |
US $1.21 |
||
|
75533G
|
75533G
75533-30410 Moulding, Windshield, Outside[10.2015 -] URL10; URL10 HEAD UP DISPLAY-WITH |
75533-30410 |
from US $16.87 |
||
|
5616530010
|
5616530010
56165-30010 Cover, Front Window Inner Moulding, Lh |
56165-30010 |
from US $5.60 |
||
|
9046710206
|
9046710206
90467-10206 Clip, Front Fender Liner, No.3 |
90467-10206 |
from US $1.29 |
