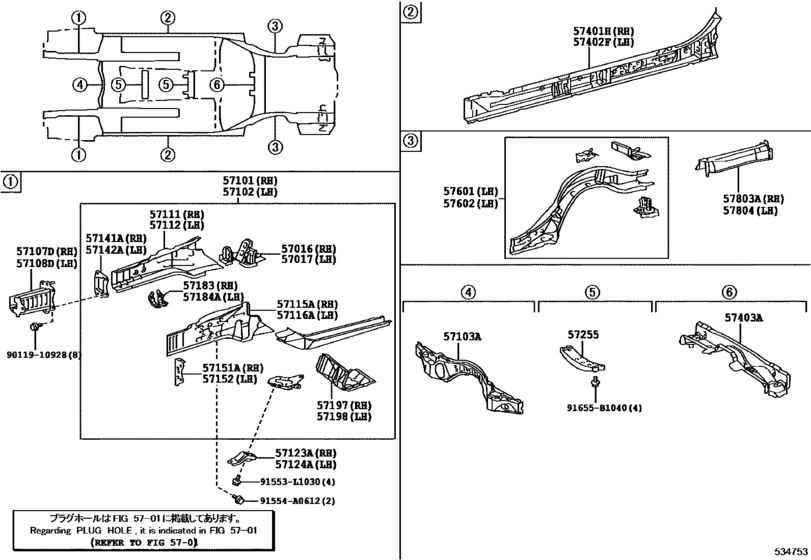

Floor Side Member ([10.2015 - ] (1510- )) Diagram Toyota LEXUS GS
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- URL10
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- GS F
- From
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57016
|
57016
57016-30040 Reinforcement Sub-Assy, Front Side Member, Rh[10.2015 -] URL10 |
57016-30040 |
US $72.65 |
||
|
57017
|
57017
57017-30040 Reinforcement Sub-Assy, Front Side Member, Lh[10.2015 -] URL10 |
57017-30040 |
US $72.65 |
||
|
57101
|
57101
57101-30190 Member Sub-Assy, Front Side, Rh[10.2015 -] URL10 |
57101-30190 |
US $589.68 |
||
|
57102
|
57102
57102-30170 Member Sub-Assy, Front Side, Lh[10.2015 -] URL10 |
57102-30170 |
US $589.68 |
||
|
57103A
|
57103A
57103-30031
Crossmenber Sub-Assy, Floor, No.3
[10.2015 -] URL10 |
57103-30031 |
— | ||
|
57107D
|
57107D
57107-24030 Reinforce Sub-Assy, Front Bumper Mounting, Rh[10.2015 -] URL10 |
57107-24030 |
from US $90.28 |
||
|
57108D
|
57108D
57108-24030 Reinforce Sub-Assy, Front Bumper Mounting, Lh[10.2015 - 11.2015] URL10 |
57108-24030 |
US $97.68 |
||
|
57108D
|
57108D
57108-30160 Reinforce Sub-Assy, Front Bumper Mounting, Lh[12.2015 -] URL10 |
57108-30160 |
US $131.72 |
||
|
57111
|
57111
57111-30082 Member, Front Side, Rh[10.2015 -] URL10 |
57111-30082 |
US $147.06 |
||
|
57112
|
57112
57112-30082 Member, Front Side, Lh[10.2015 -] URL10 |
57112-30082 |
US $156.72 |
||
|
57115A
|
57115A
57115-30060 Plate, Front Side Member, Outer Rh[10.2015 -] URL10 |
57115-30060 |
US $82.99 |
||
|
57116A
|
57116A
57116-30030 Plate, Front Side Member, Outer Lh[10.2015 -] URL10 |
57116-30030 |
US $82.99 |
||
|
57123A
|
57123A
57305-30050 Reinforcement, Strut Bar Bracket, Rh[10.2015 -] URL10 |
57305-30050 |
US $26.79 |
||
|
57124A
|
57124A
57306-30070 Reinforcement, Strut Bar Bracket, Lh[10.2015 -] URL10 |
57306-30070 |
US $26.79 |
||
|
57141A
|
57141A
57141-30040 Support, Front Bumper Arm, Rh[10.2015 -] URL10 |
57141-30040 |
US $23.41 |
||
|
57142A
|
57142A
57142-30040 Support, Front Bumper Arm, Lh[10.2015 -] URL10 |
57142-30040 |
US $23.41 |
||
|
57151A
|
57151A
57151-30040 Reinforcement, Front Side Member, No.1 Rh[10.2015 -] URL10 |
57151-30040 |
US $17.18 |
||
|
57152
|
57152
57152-30040 Reinforcement, Front Side Member, No.1 Lh[10.2015 -] URL10 |
57152-30040 |
US $15.14 |
||
|
57183
|
57183
57183-30030 Plate, Front Side Member, No.4 Rh[10.2015 -] URL10 |
57183-30030 |
US $17.76 |
||
|
57184A
|
57184A
57184-30020 Plate, Front Side Member, No.4 Lh[10.2015 -] URL10 |
57184-30020 |
US $17.76 |
||
|
57197
|
57197
57197-30050 Box, Torque, Front Rh[10.2015 -] URL10 |
57197-30050 |
US $62.03 |
||
|
57198
|
57198
57198-30050 Box, Torque, Front Lh[10.2015 -] URL10 |
57198-30050 |
US $62.03 |
||
|
57255
|
57255
57255-30080 Member, Engine Rear Mounting[10.2015 -] URL10 |
57255-30080 |
from US $113.57 |
||
|
57401H
|
57401H
57401-30120 Member Sub-Assy, Floor Side, Inner Rh[10.2015 -] URL10 |
57401-30120 |
US $375.65 |
||
|
57402F
|
57402F
57402-30110 Member Sub-Assy, Floor Side, Inner Lh[10.2015 -] URL10 |
57402-30110 |
US $375.65 |
||
|
57403A
|
57403A
57809-30020 Member Sub-Assy, Center Floor Cross, No.3[10.2015 -] URL10 |
57809-30020 |
US $145.60 |
||
|
57601
|
57601
57601-30920 Member Sub-Assy, Rear Floor Side, Rh[10.2015 -] URL10 |
57601-30920 |
US $257.71 |
||
|
57602
|
57602
57602-30932 Member Sub-Assy, Rear Floor Side, Lh[10.2015 -] URL10 |
57602-30932 |
US $257.71 |
||
|
57803A
|
57803A
57803-30030 Reinforcement Sub-Assy, Rear Floor Side Member, Rear Rh[10.2015 -] URL10 |
57803-30030 |
US $131.17 |
||
|
57804
|
57804
57804-30040 Reinforcement Sub-Assy, Rear Floor Side Member, Rear Lh[10.2015 -] URL10 |
57804-30040 |
US $99.65 |
||
|
91553L1030
|
91553L1030
91553-L1030 New Genuine Part |
91553-L1030 |
US $1.92 |
||
|
91554A0612
|
91554A0612
91554-A0612 New Genuine Part |
91554-A0612 |
US $0.96 |
||
|
91655B1040
|
91655B1040
91655-B1040 BOLT WWASHER |
91655-B1040 |
US $2.08 |
||
|
9011910928
|
9011910928
90119-10928 BOLT WWASHER |
90119-10928 |
US $1.92 |
