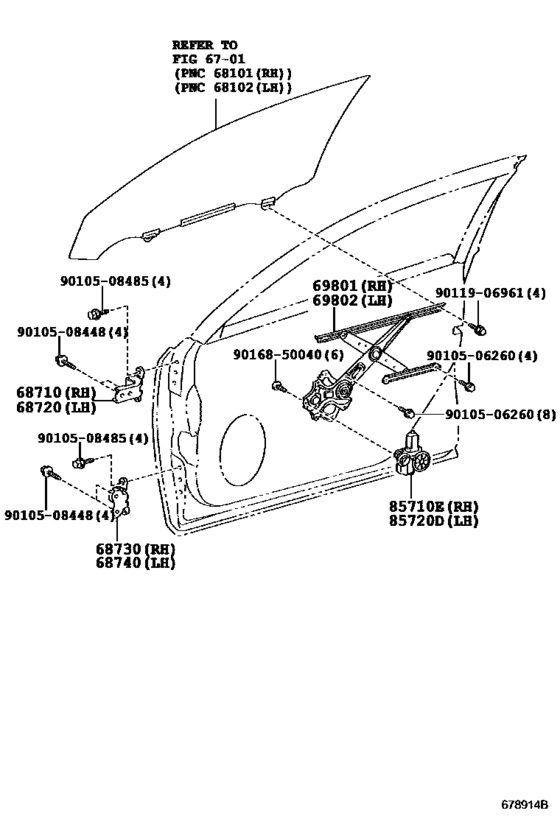

Front Door Window Regulator & Hinge ([10.2015 - ] (1510- )) Diagram Toyota LEXUS GS
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- URL10
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- GS F
- From
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[10.2015 -] URL10 |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[10.2015 -] URL10 |
68720-12151 |
from US $31.16 |
||
|
68730
|
68730
68730-12120 Hinge Assy, Front Door, Lower Rh[10.2015 -] URL10 |
68730-12120 |
from US $34.05 |
||
|
68740
|
68740
68740-12120 Hinge Assy, Front Door, Lower Lh[10.2015 -] URL10 |
68740-12120 |
from US $34.05 |
||
|
69801
|
69801
69801-21020 Regulator Sub-Assy, Front Door Window, Rh[10.2015 -] URL10 |
69801-21020 |
US $65.82 |
||
|
69802
|
69802
69802-21010 Regulator Sub-Assy, Front Door Window, Lh[10.2015 -] URL10 |
69802-21010 |
from US $65.82 |
||
|
85710E
|
85710E
85710-60351 Motor Assy, Power Window Regulator, Rh[10.2015 -] URL10 |
85710-60351 |
from US $281.01 |
||
|
85720D
|
85720D
85720-60331 Motor Assy, Power Window Regulator, Lh[10.2015 -] URL10 |
85720-60331 |
from US $281.01 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.82 |
||
|
9010508485
|
9010508485
90105-08485 BOLT FLANGE |
90105-08485 |
from US $0.78 |
||
|
9011906961
|
9011906961
90119-06961 BOLT WWASHER |
90119-06961 |
US $0.96 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
