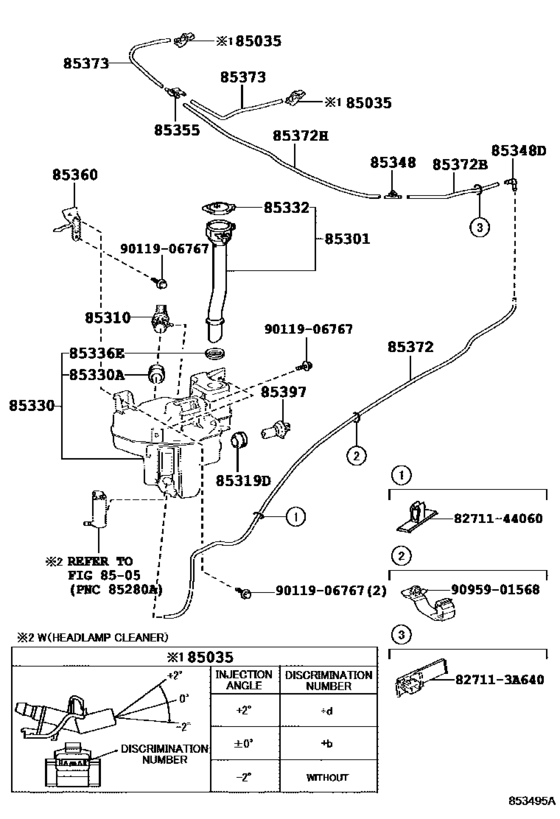

Windshield Washer ([10.2015 - ] (1510- )) Diagram Toyota LEXUS GS
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- URL10
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- GS F
- From
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-30220 Nozzle Sub-Assy, Washer[10.2015 -] URL10 ANGLE 0 |
85381-30220 |
from US $9.43 |
||
|
85035
|
85035
85381-30230 Nozzle Sub-Assy, Washer[10.2015 -] URL10 ANGLE -2 |
85381-30230 |
US $14.12 |
||
|
85035
|
85035
85381-30240 Nozzle Sub-Assy, Washer[10.2015 -] URL10 ANGLE +2 |
85381-30240 |
from US $7.69 |
||
|
85301
|
85301
85301-24070 Inlet Sub-Assy, Washer[10.2015 -] URL10 |
85301-24070 |
US $13.51 |
||
|
85310
|
85310
85330-47010 Motor And Pump Assy, Windshield Washer[10.2015 -] URL10 |
85330-47010 |
from US $49.97 |
||
|
85319D
|
85319D
85319-33230 Packing, Front Washer[10.2015 -] URL10 |
85319-33230 |
from US $2.53 |
||
|
85330
|
85330
85315-24160
Jar Assy, Windshield Washer
[10.2015 -] URL10 |
85315-24160 |
— | ||
|
85330
|
85330
85355-24040 Jar Assy, Windshield Washer[10.2015 -] URL10 KOREA SPEC; URL10 KOREA SPEC&COLD AREA SPEC; URL10 COLD AREA SPEC |
85355-24040 |
US $63.34 |
||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[10.2015 -] URL10 |
85336-60300 |
from US $1.92 |
||
|
85332
|
85332
85316-24170
Cap, Windshield Washer Jar
[10.2015 -] URL10 |
85316-24170 |
— | ||
|
85336E
|
85336E
85336-30160 Bush, Windshield Washer Jar[10.2015 -] URL10 |
85336-30160 |
US $3.32 |
||
|
85348
|
85348
85375-17050 Joint, Windshield Washer Hose, No.1[10.2015 -] URL10 |
85375-17050 |
US $1.93 |
||
|
85348D
|
85348D
85355-20200 Joint, Windshield Washer Hose, No.1[10.2015 -] URL10 |
85355-20200 |
from US $1.03 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[10.2015 -] URL10 |
85321-28020 |
from US $10.65 |
||
|
85360
|
85360
85361-24090 Bracket Assy, Windshield Washer[10.2015 -] URL10 |
85361-24090 |
US $9.46 |
||
|
85372
|
85372
90099-62141
Hose, Windshield Washer (From Joint To Joint), No.1
[10.2015 -] URL10 L=1410 |
90099-62141 |
— | ||
|
85372B
|
85372B
90099-62068 Hose, Windshield Washer (From Joint To Joint), No.1[10.2015 -] URL10 L=250 |
90099-62068 |
US $7.08 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2015 -] URL10 *H,L=630 |
90099-33080 |
from US $5.99 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2015 -] URL10 *H,L=360 |
90099-33080 |
from US $5.99 |
||
|
85397
|
85397
85397-30400 Switch Assy,level Warning[10.2015 -] URL10 |
85397-30400 |
from US $39.37 |
||
|
827113A640
|
827113A640
82711-3A640 Clamp No.1 (For Windseield Washer) |
82711-3A640 |
US $1.44 |
||
|
8271144060
|
8271144060
82711-44060 Clamp |
82711-44060 |
US $1.76 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9095901568
|
9095901568
90959-01568 Clamp |
90959-01568 |
US $1.76 |
