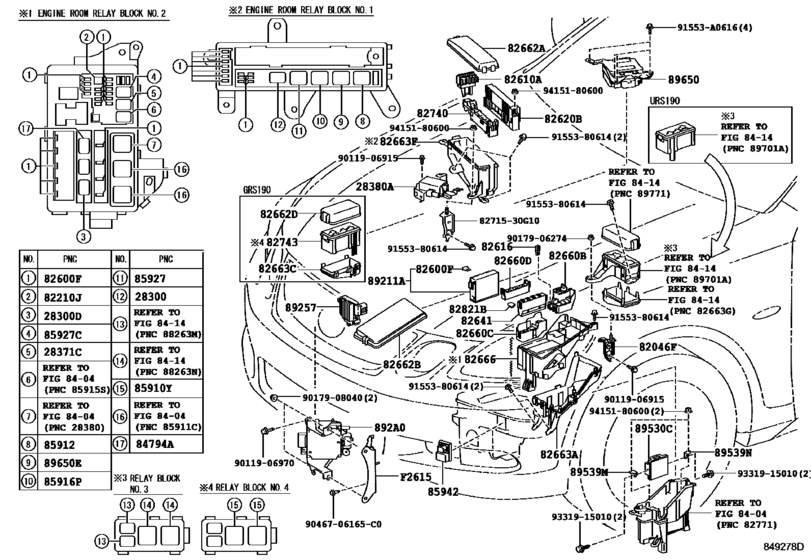

Switch & Relay & Computer ([09.2007 - ] ENGINE ROOM (0709- )) Diagram Toyota LEXUS GS
- Year
- 2007 - 2011
- Sales region
- U.S.A.
- Frame
- URS190
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- Model
- GS460
- From
- 09.2007
- To
- 12.2011
- Vehicle Model
- GS460
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
892A0
|
892A0
892A0-30020 Computer Assy, Front Active Stabilizer Control[09.2007 - 09.2008] URS190 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION) |
892A0-30020 |
US $1,543.36 |
||
|
892A0
|
892A0
892A0-30021 Computer Assy, Front Active Stabilizer Control[09.2008 -] URS190 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION) |
892A0-30021 |
US $1,278.37 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[09.2007 -] 2GRFSE,1URFSE..GRS19#,URS190 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[09.2007 -] 2GRFSE,1URFSE..GRS19#,URS190 |
28300-21020 |
from US $40.58 |
||
|
28300D
|
28300D
90987-02027 Relay[09.2007 -] 2GRFSE,1URFSE..GRS19#,URS190 |
90987-02027 |
from US $44.54 |
||
|
28371C
|
28371C
90987-02027 Relay[09.2007 -] 2GRFSE,1URFSE..GRS19#,URS190 |
90987-02027 |
from US $44.54 |
||
|
28380A
|
28380A
23080-31040 Resister, Fuel Pump[09.2007 -] 2GRFSE,1URFSE..GRS19#,URS190 |
23080-31040 |
US $58.01 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[09.2007 - 12.2011] GRS19#,URS190 30A,TERMINAL:FEMALE |
90982-08280 |
from US $4.52 |
||
|
82210J
|
82210J
90982-08282 Fusible Link[09.2007 - 12.2011] URS190 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.04 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[09.2007 - 12.2011] GRS19#,URS190 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[09.2007 - 12.2011] GRS19#,URS190 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82610A
|
82610A
82610-30140 Block Assy, FuseFUSE [09.2007 - 12.2011] GRS19#,URS190 |
82610-30140 |
US $16.89 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[09.2007 - 12.2011] GRS19#,URS190 |
82616-58010 |
from US $2.40 |
||
|
82620B
|
82620B
82620-30200 Block Assy, Fusible Link[09.2007 - 12.2011] URS190 |
82620-30200 |
US $115.84 |
||
|
82641
|
82641
82641-30250 Relay, Integration No.1[09.2007 - 12.2011] GRS19#,URS190 |
82641-30250 |
US $128.76 |
||
|
82660B
|
82660B
82660-30A00 Block Assy, Relay[09.2007 - 12.2011] GRS19#,URS190 |
82660-30A00 |
US $31.45 |
||
|
82660C
|
82660C
82660-30A60 Block Assy, Relay[09.2007 - 12.2011] GRS19#,URS190 |
82660-30A60 |
US $23.59 |
||
|
82660D
|
82660D
82660-30A20 Block Assy, Relay[09.2007 - 12.2011] GRS19#,URS190 |
82660-30A20 |
from US $13.83 |
||
|
82662A
|
82662A
82662-30860
Cover, Relay Block, Upper, No.1
[09.2007 -] URS190 |
82662-30860 |
— | ||
|
82662B
|
82662B
82662-30621 Cover, Relay Block, Upper, No.2[09.2007 -] URS190 |
82662-30621 |
from US $34.94 |
||
|
82663A
|
82663A
82663-30210 Cover, Relay Block, Lower, No.2[09.2007 - 12.2011] GRS19#,URS190 |
82663-30210 |
from US $31.74 |
||
|
82663F
|
82663F
82663-30230 Cover, Relay Block, Lower, No.8RELAY BLOCK, LOWER, NO.8 [09.2007 - 12.2011] GRS19#,URS190 |
82663-30230 |
US $48.78 |
||
|
82666
|
82666
82666-30840 Holder, Connector[09.2007 - 12.2011] URS190 |
82666-30840 |
US $50.67 |
||
|
82740
|
82740
82740-30340 Block Assy, Engine Room Relay[09.2007 - 12.2011] GRS19#,URS190 |
82740-30340 |
US $20.38 |
||
|
82821B
|
82821B
82821-47090 Cover, Connector[09.2007 - 12.2011] GRS19#,URS190 |
82821-47090 |
US $0.15 |
||
|
84794A
|
84794A
90987-02027 Relay[09.2007 -] GRS19#,URS190 WINDSHIELD DEICER-WITH |
90987-02027 |
from US $44.54 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[09.2007 -] GRS19#,URS190 |
90987-04010 |
from US $42.71 |
||
|
85916P
|
85916P
90987-02025 Relay[09.2007 -] GRS19#,URS190 |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02025 Relay[09.2007 -] GRS19#,URS190 |
90987-02025 |
from US $44.54 |
||
|
85942
|
85942
85942-30020 Relay, Headlamp Cleaner Control[09.2007 - 01.2011] GRS19#,URS190 WITH(HEAD LAMP CLEANER) |
85942-30020 |
US $145.60 |
||
| replacement | |||||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[09.2007 - 01.2011] GRS19#,URS190 WITH(HEAD LAMP CLEANER) |
85942-58010 |
from US $115.77 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[02.2011 - 12.2011] GRS19#,URS190 WITH(HEAD LAMP CLEANER) |
85942-58010 |
from US $115.77 |
||
|
89211A
|
89211A
89211-30030
Computer, Multiplex Network Body
[09.2007 -] GRS19#,URS190 |
89211-30030 |
— | ||
|
89257
|
89257
89257-30080 Computer, Cooling Fan[09.2007 - 12.2011] URS190 |
89257-30080 |
from US $226.08 |
||
|
89530C
|
89530C
89535-30010
Computer Assy, Transmission Control
[09.2007 - 09.2008] URS190 |
89535-30010 |
— | ||
|
89530C
|
89530C
89535-30050
Computer Assy, Transmission Control
[09.2007 - 09.2008] URS190 KOREA SPEC |
89535-30050 |
— | ||
|
89530C
|
89530C
89535-30070
Computer Assy, Transmission Control
[09.2008 - 09.2009] URS190 |
89535-30070 |
— | ||
|
89530C
|
89530C
89535-30100
Computer Assy, Transmission Control
[09.2008 - 09.2009] URS190 KOREA SPEC |
89535-30100 |
— | ||
|
89530C
|
89530C
89535-30130
Computer Assy, Transmission Control
[09.2009 -] URS190 |
89535-30130 |
— | ||
|
89530C
|
89530C
89535-30160
Computer Assy, Transmission Control
[09.2009 -] URS190 KOREA SPEC |
89535-30160 |
— | ||
|
89539M
|
89539M
89539-30110 Bracket, Transmission Control Computer, No.1[09.2007 -] URS190 |
89539-30110 |
US $2.62 |
||
|
89539N
|
89539N
89539-30120 Bracket, Transmission Control Computer, No.2[09.2007 -] URS190 |
89539-30120 |
US $2.62 |
||
|
89650
|
89650
89650-30750
Computer Assy, Power Steering
[09.2007 - 04.2008] URS190 |
89650-30750 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-30751
Computer Assy, Power Steering
[09.2007 - 04.2008] URS190 |
89650-30751 |
— | ||
|
89650
|
89650
89650-30751
Computer Assy, Power Steering
[05.2008 - 12.2011] URS190 |
89650-30751 |
— | ||
|
89650E
|
89650E
90987-02025 Relay[09.2007 -] GRS19#,URS190 |
90987-02025 |
from US $44.54 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $0.96 |
||
|
8271530G10
|
8271530G10
82715-30G10 Bracket,wiring Harness Clamp |
82715-30G10 |
US $6.99 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9011906970
|
9011906970
90119-06970 New Genuine Part |
90119-06970 |
US $1.46 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9046706165C0
|
9046706165C0
90467-06165-C0 Clip, Instrument PanelINSTRUMENT PANEL |
90467-06165-C0 |
from US $0.86 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
|
F2615
|
F2615
F2615-30020 Bracket, Front Active Stabilizer Computer[09.2007 -] URS190 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION) |
F2615-30020 |
US $12.81 |
||
