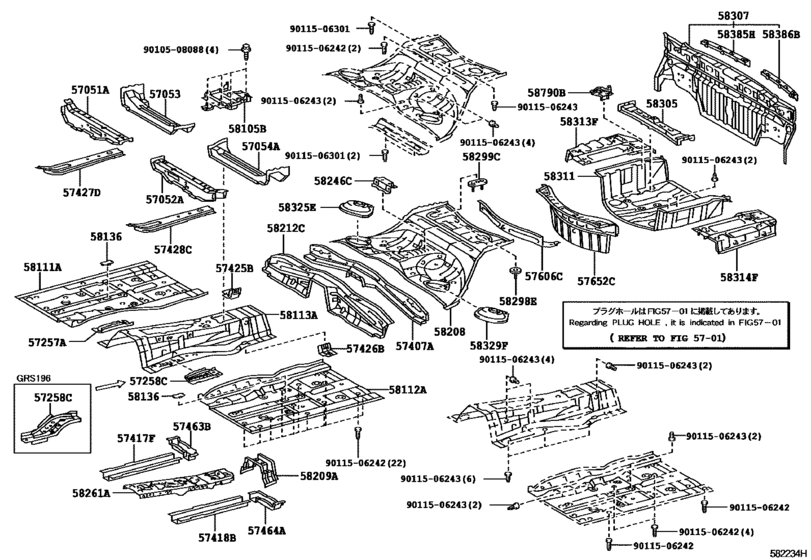

Floor Pan & Lower Back Panel ([01.2005 - ] (0501- )) Diagram Toyota LEXUS GS
- Year
- 2008 - 2011
- Sales region
- General
- Frame
- URS190
- ENGINE
- 1URFE
- DESTINATION
- GCC
- Model
- GS460
- From
- 09.2008
- To
- 12.2011
- Vehicle Model
- GS460
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051A
|
57051A
57051-30100 Member Sub-Assy, Front Floor Cross, Rh[09.2007 -] GRS19#,URS190,UZS190 |
57051-30100 |
US $57.51 |
||
|
57052A
|
57052A
57052-30100 Member Sub-Assy, Front Floor Cross, Lh[09.2007 -] GRS190,URS190,UZS190 |
57052-30100 |
US $57.51 |
||
|
57053
|
57053
57053-30071 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[09.2007 -] GRS19#,URS190,UZS190 |
57053-30071 |
US $57.51 |
||
|
57054A
|
57054A
57054-30071 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[09.2007 -] GRS19#,URS190,UZS190 |
57054-30071 |
US $57.51 |
||
|
57257A
|
57257A
57257-30041 Bracket, Engine Rear Mounting Member, Rh[09.2007 -] GRS190,URS190,UZS190 |
57257-30041 |
US $42.08 |
||
|
57258C
|
57258C
57258-30091 Bracket, Engine Rear Mounting Member, Lh[09.2007 -] GRS190,URS190,UZS190 |
57258-30091 |
US $38.15 |
||
|
57407A
|
57407A
57407-30151 Member Sub-Assy, Center Floor Cross[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
57407-30151 |
US $90.27 |
||
|
57417F
|
57417F
57417-30080 Reinforcement, Front Floor Under, Rh[09.2007 -] GRS19#,URS190,UZS190 |
57417-30080 |
US $46.88 |
||
|
57418B
|
57418B
57417-30080 Reinforcement, Front Floor Under, Rh[09.2007 -] GRS19#,URS190,UZS190 |
57417-30080 |
US $46.88 |
||
|
57425B
|
57425B
57425-30020 Reinforcement, Front Floor, No.2 Rh[09.2007 -] GRS19#,URS190,UZS190 |
57425-30020 |
US $11.21 |
||
|
57426B
|
57426B
57426-30020 Reinforcement, Front Floor, No.2 Lh[09.2007 -] GRS19#,URS190,UZS190 |
57426-30020 |
US $11.21 |
||
|
57427D
|
57427D
57427-30030 Reinforcement, Front Floor, Upper[09.2007 -] GRS19#,URS190,UZS190 |
57427-30030 |
US $46.88 |
||
|
57428C
|
57428C
57427-30030 Reinforcement, Front Floor, Upper[09.2007 -] GRS19#,URS190,UZS190 |
57427-30030 |
US $46.88 |
||
|
57463B
|
57463B
57508-30020 Reinforcement, Center Floor Crossmember, Rh[09.2007 -] GRS19#,URS190,UZS190 |
57508-30020 |
US $17.76 |
||
|
57464A
|
57464A
57509-30020 Reinforcement, Center Floor Crossmember, Lh[09.2007 -] GRS19#,URS190,UZS190 |
57509-30020 |
US $17.76 |
||
|
57606C
|
57606C
57606-30061 Member Sub-Assy, Rear Floor Cross, No.2[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
57606-30061 |
US $71.93 |
||
|
57652C
|
57652C
57652-30110 Member, Rear Floor Cross, No.1[09.2007 -] GRS19#,URS190,UZS190 |
57652-30110 |
US $65.20 |
||
|
58105B
|
58105B
58105-30050 Panel Sub-Assy, Front Floor Rear Upper Sub[09.2007 -] GRS19#,URS190,UZS190 |
58105-30050 |
US $46.88 |
||
|
58111A
|
58111A
58111-30450 Pan, Front Floor, Rh[09.2007 -] GRS19#,URS190,UZS190 |
58111-30450 |
US $218.40 |
||
| replacements | |||||
|
58111A
|
58111A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[09.2007 -] GRS19#,URS190,UZS190 |
57257-30042 |
US $40.48 |
||
|
58111A
|
58111A
58111-30460 Pan, Front Floor, Rh[09.2007 -] GRS19#,URS190,UZS190 |
58111-30460 |
US $198.02 |
||
|
58111A
|
58111A
87212-30431 Duct, Air, Rear No.1[09.2007 -] GRS19#,URS190,UZS190 |
87212-30431 |
US $57.51 |
||
|
58112A
|
58112A
58112-30161 Panel, Front Floor, Lh[09.2007 -] GRS190,URS190,UZS190 |
58112-30161 |
US $218.40 |
||
| replacement | |||||
|
58112A
|
58112A
58112-30162 Panel, Front Floor, Lh[09.2007 -] GRS190,URS190,UZS190 |
58112-30162 |
US $198.02 |
||
|
58113A
|
58113A
58113-30190 Panel, Front Floor, Center[09.2007 -] GRS190,URS190,UZS190 |
58113-30190 |
US $279.55 |
||
|
58136
|
58136
58136-51010 Cover, Front Floor Hole[09.2007 -] GRS19#,URS190,UZS190 |
58136-51010 |
US $2.04 |
||
|
58208
|
58208
58211-30350 Pan, Center Floor[09.2007 -] GRS19#,URS190,UZS190 |
58211-30350 |
US $198.02 |
||
|
58209A
|
58209A
58209-30050 Reinforcement Sub-Assy, Drive Shaft Center Support[09.2007 -] GRS19#,URS190,UZS190 |
58209-30050 |
US $36.98 |
||
|
58212C
|
58212C
58202-30091 Pan Sub-Assy, Center Floor, Front[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
58202-30091 |
US $116.48 |
||
|
58246C
|
58246C
58246-22020 Bracket, Rear Seat Hinge, Center No.2[09.2007 -] GRS19#,URS190,UZS190 |
58246-22020 |
US $11.07 |
||
|
58261A
|
58261A
58261-30231 Cover, Transmission[09.2007 -] GRS190,URS190,UZS190..LHD |
58261-30231 |
US $66.98 |
||
|
58298E
|
58298E
58298-30030 Bracket, Hot Air Intake, No.1[09.2007 -] GRS19#,URS190,UZS190 |
58298-30030 |
US $4.80 |
||
|
58299C
|
58299C
58299-30010 Bracket, Hot Air Intake, No.2[09.2007 -] GRS19#,URS190,UZS190 |
58299-30010 |
US $9.03 |
||
|
58305
|
58305
58305-30210 Bracket Sub-Assy, Spare Wheel Clamp[09.2007 -] GRS19#,URS190,UZS190 |
58305-30210 |
US $21.96 |
||
|
58307
|
58307
58307-30753 Panel Sub-Assy, Body Lower Back[09.2007 - 04.2009] GRS190,URS190,UZS190 |
58307-30753 |
US $295.57 |
||
| replacement | |||||
|
58307
|
58307
58307-30754 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [09.2007 - 04.2009] GRS190,URS190,UZS190 |
58307-30754 |
US $294.11 |
||
|
58307
|
58307
58307-30754 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [05.2009 -] GRS19#,URS190 |
58307-30754 |
US $294.11 |
||
|
58311
|
58311
58311-30360 Pan, Rear Floor[09.2007 -] GRS19#,URS190,UZS190 |
58311-30360 |
US $158.76 |
||
|
58313F
|
58313F
58313-30200 Extension, Rear Floor Pan To Quarter Panel, Rh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
58313-30200 |
US $39.75 |
||
|
58314F
|
58314F
58314-30200 Extension, Rear Floor Pan To Quarter Panel, Lh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
58314-30200 |
US $60.82 |
||
|
58325E
|
58325E
58325-30020 Cover, Rear Floor Service Hole[09.2007 -] GRS19#,URS190,UZS190 |
58325-30020 |
US $17.18 |
||
|
58329F
|
58329F
58329-30030 Cover, Rear Floor Service Hole, No.2[09.2007 -] GRS19#,URS190,UZS190 |
58329-30030 |
US $19.51 |
||
|
58385H
|
58385H
58385-30040 Bracket, Rear Bumper Cover, No.1[09.2007 -] GRS19#,URS190,UZS190 |
58385-30040 |
US $18.05 |
||
|
58386B
|
58386B
58386-30020 Bracket, Rear Bumper Cover, No.2[09.2007 -] GRS19#,URS190,UZS190 |
58386-30020 |
US $18.05 |
||
|
58790B
|
58790B
58790-30010 Carrier Assy, Jack[09.2007 -] GRS19#,URS190,UZS190 |
58790-30010 |
US $10.47 |
||
|
9010508088
|
9010508088
90105-08088 New Genuine Part |
90105-08088 |
US $1.76 |
||
|
9011506242
|
9011506242
90115-06242 New Genuine Part |
90115-06242 |
US $0.96 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011506301
|
9011506301
90115-06301 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06301 |
US $0.96 |
||
