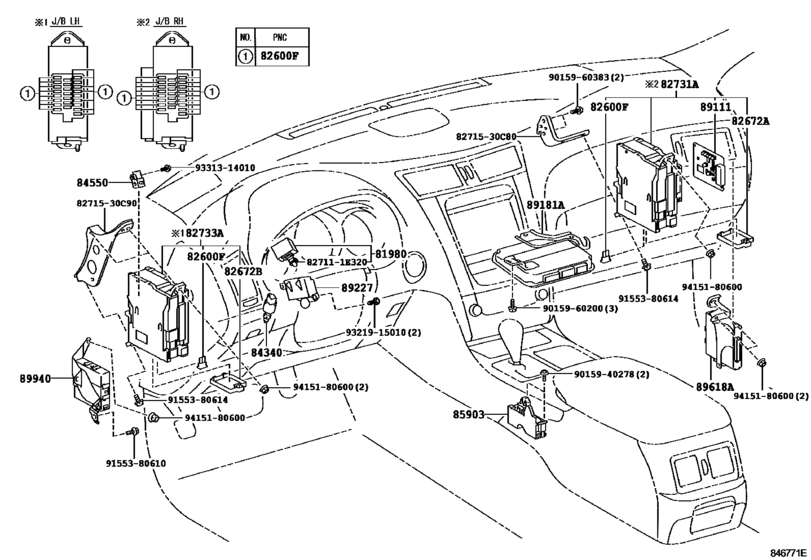

Switch & Relay & Computer ([01.2005 - ] COWL (0501- )LHD) Diagram Toyota LEXUS GS
- Year
- 2008 - 2011
- Sales region
- General
- Frame
- URS190
- ENGINE
- 1URFE
- DESTINATION
- GCC
- Model
- GS460
- From
- 09.2008
- To
- 12.2011
- Vehicle Model
- GS460
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[09.2007 -] GRS19#,URS190,UZS190 |
81980-30170 |
from US $52.59 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[09.2007 - 12.2011] GRS19#,URS190,UZS190 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[09.2007 - 12.2011] GRS19#,URS190,UZS190 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672A
|
82672A
82672-30121
Cover, Junction Block
[09.2007 -] GRS190,URS190,UZS190..GCC |
82672-30121 |
— | ||
|
82672A
|
82672A
82672-30161
Cover, Junction Block
[09.2007 - 07.2010] URS190..GCC CHINA SPEC |
82672-30161 |
— | ||
|
82672B
|
82672B
82672-30131 Cover, Junction BlockJUNCTION BLOCK [09.2007 -] UZS190..GCC;GRS19#,URS190..LHD |
82672-30131 |
US $3.35 |
||
|
82672B
|
82672B
82672-30310
Cover, Junction Block
[09.2007 - 07.2010] URS190..GCC CHINA SPEC |
82672-30310 |
— | ||
|
82731A
|
82731A
82730-30F93
Block, Cowl Side Junction, Rh
[09.2008 - 09.2009] GRS190,URS190..GCC |
82730-30F93 |
— | ||
|
82731A
|
82731A
82730-30F94
Block, Cowl Side Junction, Rh
[09.2009 -] GRS190,URS190..GCC |
82730-30F94 |
— | ||
|
82731A
|
82731A
82730-30G03
Block, Cowl Side Junction, Rh
[09.2008 - 09.2009] GRS190,URS190..GCC CHINA SPEC |
82730-30G03 |
— | ||
|
82731A
|
82731A
82730-30G04
Block, Cowl Side Junction, Rh
[09.2009 - 07.2010] URS190..GCC CHINA SPEC |
82730-30G04 |
— | ||
|
82731A
|
82731A
82730-30G13
Block, Cowl Side Junction, Rh
[09.2008 - 09.2009] URS190..GCC PHILIPPINE SPEC |
82730-30G13 |
— | ||
|
82731A
|
82731A
82730-30G14
Block, Cowl Side Junction, Rh
[09.2009 -] URS190..GCC PHILIPPINE SPEC |
82730-30G14 |
— | ||
|
82733A
|
82733A
82730-30273
Block, Cowl Side Junction, Lh
[07.2008 - 10.2009] UZS190..GCC;GRS19#,URS190..LHD |
82730-30273 |
— | ||
| replacement | |||||
|
82733A
|
82733A
82730-30274
Block, Cowl Side Junction, Lh
[07.2008 - 10.2009] UZS190..GCC;GRS19#,URS190..LHD |
82730-30274 |
— | ||
|
82733A
|
82733A
82730-30274
Block, Cowl Side Junction, Lh
[11.2009 -] GRS19#,URS190..LHD |
82730-30274 |
— | ||
|
82733A
|
82733A
82730-30573
Block, Cowl Side Junction, Lh
[07.2008 - 10.2009] GRS190,URS190..GCC CHINA SPEC |
82730-30573 |
— | ||
| replacement | |||||
|
82733A
|
82733A
82730-30574
Block, Cowl Side Junction, Lh
[07.2008 - 10.2009] GRS190,URS190..GCC CHINA SPEC |
82730-30574 |
— | ||
|
82733A
|
82733A
82730-30574
Block, Cowl Side Junction, Lh
[11.2009 - 07.2010] URS190..GCC CHINA SPEC |
82730-30574 |
— | ||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[09.2007 - 12.2011] GRS19#,URS190 |
84340-30110 |
from US $21.59 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
84550-16060 |
from US $17.48 |
||
|
85903
|
85903
85903-30080
Computer Sub-Assy, Shift Lock Control
[09.2007 - 12.2011] GRS19#,URS190,UZS190..LHD |
85903-30080 |
— | ||
|
89111
|
89111
89100-30110 Computer, Network Gateway[09.2007 - 09.2009] GRS19#,URS190,UZS190 |
89100-30110 |
US $589.68 |
||
|
89111
|
89111
89100-30120 Computer, Network GatewayNETWORK GATEWAY [09.2009 -] GRS19#,URS190 |
89100-30120 |
US $589.68 |
||
|
89181A
|
89181A
89181-30150
Computer, Steering Control
[09.2007 -] URS190..LHD |
89181-30150 |
— | ||
|
89227
|
89227
89227-30020 Computer, Multiplex Tilt & Telescopic[09.2007 - 12.2011] GRS19#,URS190 |
89227-30020 |
US $492.13 |
||
|
89618A
|
89618A
89670-30130
Computer, Power Source Control
[09.2008 - 12.2011] GRS19#,URS190..LHD |
89670-30130 |
— | ||
|
89940
|
89940
89940-30081
Computer Assy, Headlamp Swivel
[09.2007 -] GRS190,URS190,UZS190..LHD |
89940-30081 |
— | ||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271530C80
|
8271530C80
82715-30C80 Bracket,wiring Harness Clamp |
82715-30C80 |
US $9.46 |
||
|
8271530C90
|
8271530C90
82715-30C90 Bracket,wiring Harness Clamp |
82715-30C90 |
US $18.78 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
US $1.60 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
