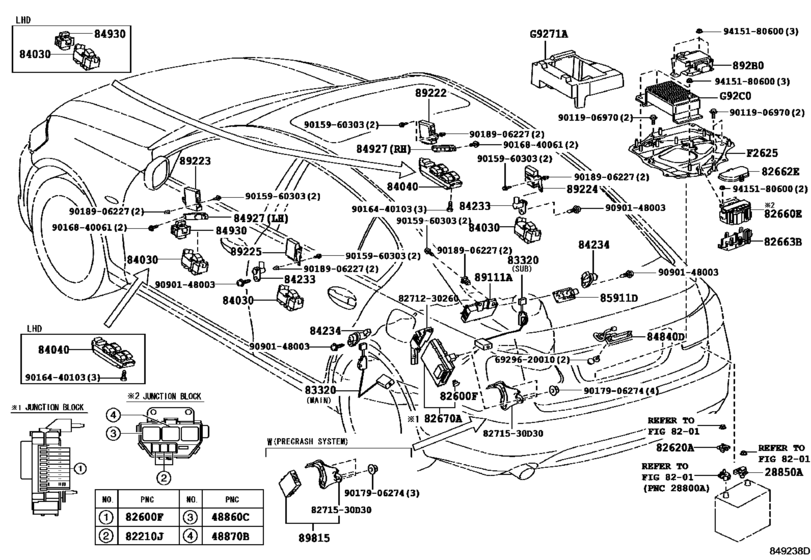

Switch & Relay & Computer ([09.2007 - ] DOOR,ROOF,FLOOR & LUGGAGE (0709- )) Diagram Toyota LEXUS GS
- Year
- 2008 - 2011
- Sales region
- General
- Frame
- URS190
- ENGINE
- 1URFE
- DESTINATION
- GCC
- Model
- GS460
- From
- 09.2008
- To
- 12.2011
- Vehicle Model
- GS460
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08280 Fusible Link[09.2007 - 12.2011] GRS19#,URS190,UZS190 30A,TERMINAL:FEMALE |
90982-08280 |
from US $4.52 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[09.2007 - 12.2011] GRS19#,URS190,UZS190 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[09.2007 - 12.2011] GRS19#,URS190,UZS190 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82670A
|
82670A
82670-30230 Block Assy, Junction, No.1JUNCTION, NO.1 [09.2007 -] UZS190..GCC;GRS19#,URS190..LHD |
82670-30230 |
US $693.06 |
||
|
82670A
|
82670A
82670-30260 Block Assy, Junction, No.1JUNCTION, NO.1 [09.2007 - 07.2010] URS190..GCC CHINA SPEC |
82670-30260 |
US $576.58 |
||
|
83320
|
83320
83320-30530 Gage Assy, Fuel Sender[09.2007 - 12.2011] GRS19#,URS190,UZS190 MAIN |
83320-30530 |
from US $55.02 |
||
|
83320
|
83320
83320-30540 Gage Assy, Fuel Sender[09.2007 - 12.2011] GRS19#,URS190,UZS190 SUB |
83320-30540 |
from US $55.02 |
||
|
84030
|
84030
84810-30170 Switch Assy,multiplex Network[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
84810-30170 |
US $59.70 |
||
|
84040
|
84040
84040-30160
Master Switch Assy,multiplex Network
[09.2009 - 12.2011] GRS19#,URS190..LHD |
84040-30160 |
— | ||
|
84040
|
84040
84040-30220
Master Switch Assy,multiplex Network
[09.2007 - 09.2009] GRS19#,URS190,UZS190..LHD |
84040-30220 |
— | ||
| replacement | |||||
|
84040
|
84040
84040-30160
Master Switch Assy,multiplex Network
[09.2007 - 09.2009] GRS19#,URS190,UZS190..LHD |
84040-30160 |
— | ||
|
84233
|
84233
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[10.2007 -] GRS19#,URS190,UZS190 |
84231-50190 |
from US $10.56 |
||
|
84234
|
84234
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[10.2007 -] GRS19#,URS190,UZS190 |
84231-50190 |
from US $10.56 |
||
|
84840D
|
84840D
84840-21010 Switch Assy, Luggage Compartment Door Opening[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
84840-21010 |
from US $56.09 |
||
|
84927
|
84927
84927-30090 Switch, Seat Memory[09.2007 - 12.2011] GRS196,URS190,UZS190 RH; GRS190 SEAT COVER MATERIAL-LEATHER,RH; GRS190 SEAT COVER MATERIAL-LEATHER(SEMIANILINE),RH |
84927-30090 |
US $72.80 |
||
|
84927
|
84927
84927-30100 Switch, Seat Memory[09.2007 - 12.2011] GRS196,URS190,UZS190 LH; GRS190 SEAT COVER MATERIAL-LEATHER,LH; GRS190 SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LH |
84927-30100 |
US $72.80 |
||
|
84930
|
84930
84930-30070 Switch Assy, Door Control[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
84930-30070 |
US $37.13 |
||
|
85911D
|
85911D
85911-50010 Relay, Rear Sunshade[09.2007 - 12.2011] GRS19#,URS190,UZS190 SUN SHADE-WITH |
85911-50010 |
US $313.04 |
||
|
89111A
|
89111A
89111-30061 Computer, Network Gateway, No.2NETWORK GATEWAY, NO.2 [09.2009 - 07.2010] URS190..LHD..EUR STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION); URS190..LHD..EUR STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)&CLEARANCE & BACK SONAR-WITH; URS190..GCC CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM)&CLEARANCE & BACK SONA |
89111-30061 |
US $451.36 |
||
|
89222
|
89222
89222-30170 Computer, Multiplex Network Door, Front Rh[09.2007 -] GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD; GRS190..RHD..EUR SINGAPORE SPEC; GRS190,URS190..RHD..EUR NEW ZEALAND SPEC; GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
89222-30170 |
US $380.02 |
||
| replacement | |||||
|
89222
|
89222
89222-30180 Computer, Multiplex Network Door, Front RhMULTIPLEX NETWORK DOOR, FRONT RH [09.2007 -] GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD; GRS190..RHD..EUR SINGAPORE SPEC; GRS190,URS190..RHD..EUR NEW ZEALAND SPEC; GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
89222-30180 |
US $378.56 |
||
|
89223
|
89223
89222-30170 Computer, Multiplex Network Door, Front Rh[09.2007 -] GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD; GRS190..RHD..EUR SINGAPORE SPEC; GRS190,URS190..RHD..EUR NEW ZEALAND SPEC; GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
89222-30170 |
US $380.02 |
||
| replacement | |||||
|
89223
|
89223
89222-30180 Computer, Multiplex Network Door, Front RhMULTIPLEX NETWORK DOOR, FRONT RH [09.2007 -] GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD; GRS190..RHD..EUR SINGAPORE SPEC; GRS190,URS190..RHD..EUR NEW ZEALAND SPEC; GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
89222-30180 |
US $378.56 |
||
|
89224
|
89224
89224-30100 Computer, Multiplex Network Door, Rear Rh[09.2007 -] GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD; GRS190..RHD..EUR SINGAPORE SPEC; GRS190,URS190..RHD..EUR NEW ZEALAND SPEC; GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
89224-30100 |
US $248.98 |
||
|
89225
|
89225
89225-30040 Computer, Multiplex Network Door, Rear Lh[09.2007 -] GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD; GRS190..RHD..EUR SINGAPORE SPEC; GRS190,URS190..RHD..EUR NEW ZEALAND SPEC; GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
89225-30040 |
US $248.98 |
||
| replacement | |||||
|
89225
|
89225
89225-30050
Computer, Multiplex Network Door, Rear Lh
[09.2007 -] GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD; GRS190..RHD..EUR SINGAPORE SPEC; GRS190,URS190..RHD..EUR NEW ZEALAND SPEC; GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
89225-30050 |
— | ||
|
89815
|
89815
89815-30140 Computer, Seat Belt Control[09.2007 - 09.2009] URS190;GRS190..EUR PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE |
89815-30140 |
US $754.21 |
||
| replacement | |||||
|
89815
|
89815
89815-30180 Computer, Seat Belt Control[09.2007 - 09.2009] URS190;GRS190..EUR PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE |
89815-30180 |
US $754.21 |
||
|
89815
|
89815
89815-30180 Computer, Seat Belt Control[07.2010 -] GRS190..GEN PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE; GRS190,URS190..EUR,GCC PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA |
89815-30180 |
US $754.21 |
||
|
8271530D30
|
8271530D30
82715-30D30 Bracket,wiring Harness Clamp |
82715-30D30 |
US $18.05 |
||
|
6929620010
|
6929620010
69296-20010 Screw, Door Inside Handle |
69296-20010 |
US $4.37 |
||
|
8271230260
|
8271230260
82712-30260 Hose, Suction |
82712-30260 |
US $15.43 |
||
|
9011906970
|
9011906970
90119-06970 New Genuine Part |
90119-06970 |
US $1.46 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
from US $0.88 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
