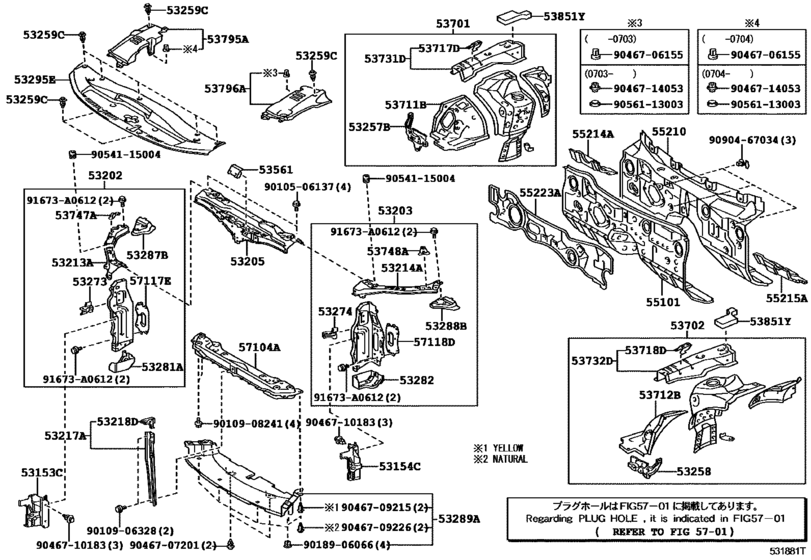

Front Fender Apron & Dash Panel ([01.2005 - ] (0501- )RHD) Diagram Toyota LEXUS GS
- Year
- 2007 - 2011
- Sales region
- General
- Frame
- URS190
- ENGINE
- 1URFSE
- DESTINATION
- EUR
- Model
- GS460
- From
- 09.2007
- To
- 12.2011
- Vehicle Model
- GS460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153C
|
53153C
53153-30160 Guide, Radiator Grille Side Air, Rh[09.2007 -] GRS19#,URS190,UZS190 |
53153-30160 |
US $19.80 |
||
|
53154C
|
53154C
53154-30150 Guide, Radiator Grille Side Air, Lh[09.2007 -] GRS19#,URS190,UZS190 |
53154-30150 |
US $19.80 |
||
|
53202
|
53202
53202-30905 Support Sub-Assy, Radiator, Rh[09.2007 - 06.2011] GRS19#,URS190,UZS190 |
53202-30905 |
US $186.37 |
||
| replacement | |||||
|
53202
|
53202
53202-30906 Support Sub-Assy, Radiator, Rh[09.2007 - 06.2011] GRS19#,URS190,UZS190 |
53202-30906 |
from US $183.46 |
||
|
53202
|
53202
53202-30906 Support Sub-Assy, Radiator, Rh[06.2011 - 12.2011] GRS19#,URS190 |
53202-30906 |
from US $183.46 |
||
|
53203
|
53203
53203-30905 Support Sub-Assy, Radiator, Lh[09.2007 - 06.2011] GRS19#,URS190,UZS190 |
53203-30905 |
US $186.37 |
||
| replacement | |||||
|
53203
|
53203
53203-30906 Support Sub-Assy, Radiator, Lh[09.2007 - 06.2011] GRS19#,URS190,UZS190 |
53203-30906 |
from US $183.46 |
||
|
53203
|
53203
53203-30906 Support Sub-Assy, Radiator, Lh[06.2011 - 12.2011] GRS19#,URS190 |
53203-30906 |
from US $183.46 |
||
|
53205
|
53205
53205-30102 Support Sub-Assy, Radiator, Upper[09.2007 -] GRS19#,URS190,UZS190 |
53205-30102 |
from US $91.73 |
||
|
53213A
|
53213A
53213-30111 Support, Radiator, Upper Rh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
53213-30111 |
US $42.37 |
||
|
53214A
|
53214A
53214-30111 Support, Radiator, Upper Lh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
53214-30111 |
from US $42.37 |
||
|
53217A
|
53217A
53217-30902 Brace, Hood Lock Support[09.2007 -] GRS19#,URS190,UZS190 |
53217-30902 |
from US $36.55 |
||
|
53218D
|
53218D
53218-30130 Extension, Hood Lock Brace[09.2007 -] GRS19#,URS190,UZS190 |
53218-30130 |
US $10.34 |
||
|
53257B
|
53257B
53257-30080 Bracket, Radiator Support To Front Fender[09.2007 -] GRS19#,URS190,UZS190 |
53257-30080 |
US $20.53 |
||
|
53258
|
53258
53258-30060 Bracket, Front End Panel Mounting, Lh[09.2007 -] GRS19#,URS190,UZS190 |
53258-30060 |
US $16.45 |
||
|
53259C
|
53259C
90467-07211 Clip(For Reserve Tank Outlet Hose No.2)[09.2007 -] GRS19#,URS190,UZS190 |
90467-07211 |
from US $0.88 |
||
|
53273
|
53273
53273-30060
Bracket, Front Bumper Arm Mounting, Rh
[09.2007 -] GRS19#,URS190,UZS190 |
53273-30060 |
— | ||
|
53274
|
53274
53274-30040
Bracket, Front Bumper Arm Mounting, Lh
[09.2007 -] GRS19#,URS190,UZS190 |
53274-30040 |
— | ||
|
53281A
|
53281A
53281-30050 Reinforcement, Front Body Mounting, Rh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
53281-30050 |
US $19.66 |
||
|
53282
|
53282
53282-30030 Reinforcement, Front Body Mounting, Lh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
53282-30030 |
US $22.89 |
||
|
53287B
|
53287B
53287-30080 Extension, Radiator Support, Rh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
53287-30080 |
US $16.87 |
||
|
53288B
|
53288B
53288-30070 Extension, Radiator Support, Lh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
53288-30070 |
US $16.87 |
||
|
53289A
|
53289A
53289-30140 Cover, Radiator Support Opening[09.2007 - 07.2009] GRS190,URS190 |
53289-30140 |
US $148.51 |
||
| replacement | |||||
|
53289A
|
53289A
53289-30141 Cover, Radiator Support OpeningRADIATOR SUPPORT OPENING [09.2007 - 07.2009] GRS190,URS190 |
53289-30141 |
US $147.06 |
||
|
53289A
|
53289A
53289-30141 Cover, Radiator Support OpeningRADIATOR SUPPORT OPENING [08.2009 - 12.2011] GRS19#,URS190 |
53289-30141 |
US $147.06 |
||
|
53295E
|
53295E
53295-30121 Seal, Cool Air Intake Duct[09.2007 -] GRS19#,URS190,UZS190 |
53295-30121 |
US $125.22 |
||
|
53561
|
53561
53561-30010 Guide, Hood Auxiliary Catch Hook[09.2007 -] GRS19#,URS190,UZS190 |
53561-30010 |
US $6.40 |
||
|
53701
|
53701
53701-30A60 Apron Sub-Assy, Front Fender, Rh[09.2007 -] GRS190,URS190,UZS190 |
53701-30A60 |
US $643.55 |
||
| replacements | |||||
|
53701
|
53701
53701-30A61 Apron Sub-assy, Front Fender, Rh[09.2007 -] GRS190,URS190,UZS190 |
53701-30A61 |
US $643.55 |
||
|
53701
|
53701
53715-30030 Plate, Front Fender Apron, Rear Rh[09.2007 -] GRS190,URS190,UZS190 |
53715-30030 |
US $40.43 |
||
|
53701
|
53701
90179-06274 Nut[09.2007 -] GRS190,URS190,UZS190 |
90179-06274 |
from US $0.74 |
||
|
53701
|
53701
91673-80616 Bolt, W/washer[09.2007 -] GRS190,URS190,UZS190 |
91673-80616 |
from US $0.64 |
||
|
53702
|
53702
53702-30800 Apron Sub-Assy, Front Fender, Lh[09.2007 -] GRS190,URS190,UZS190 |
53702-30800 |
from US $643.55 |
||
|
53711B
|
53711B
53711-3A030 Apron, Front Fender, Front Rh[09.2007 -] GRS19#,URS190,UZS190 |
53711-3A030 |
US $58.53 |
||
| replacements | |||||
|
53711B
|
53711B
53711-24050 Apron, Front Fender, Front Rh[09.2007 -] GRS19#,URS190,UZS190 |
53711-24050 |
from US $60.50 |
||
|
53711B
|
53711B
53715-30030 Plate, Front Fender Apron, Rear Rh[09.2007 -] GRS19#,URS190,UZS190 |
53715-30030 |
US $40.43 |
||
|
53711B
|
53711B
90179-06274 Nut[09.2007 -] GRS19#,URS190,UZS190 |
90179-06274 |
from US $0.74 |
||
|
53711B
|
53711B
91673-80616 Bolt, W/washer[09.2007 -] GRS19#,URS190,UZS190 |
91673-80616 |
from US $0.64 |
||
|
53712B
|
53712B
53712-30640
Apron, Front Fender, Front Lh
[09.2007 -] GRS19#,URS190,UZS190 |
53712-30640 |
— | ||
| replacement | |||||
|
53712B
|
53712B
53712-24060 Apron, Front Fender, Front Lh[09.2007 -] GRS19#,URS190,UZS190 |
53712-24060 |
US $60.50 |
||
|
53717D
|
53717D
53717-30060 Gusset, Fender Apron, Rh[09.2007 -] GRS19#,URS190,UZS190 |
53717-30060 |
US $4.95 |
||
|
53718D
|
53718D
53718-30050 Gusset, Fender Apron, Lh[09.2007 -] GRS19#,URS190,UZS190 |
53718-30050 |
US $4.95 |
||
|
53731D
|
53731D
53705-30060 Member, Front Apron To Cowl Side, Upper Rh[09.2007 -] GRS19#,URS190,UZS190 |
53705-30060 |
US $54.75 |
||
|
53732D
|
53732D
53706-30060 Member, Front Apron To Cowl Side, Upper Lh[09.2007 -] GRS19#,URS190,UZS190 |
53706-30060 |
US $54.75 |
||
|
53747A
|
53747A
53747-30050 Extension, Apron Fender Side, Rh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
53747-30050 |
US $3.93 |
||
|
53748A
|
53748A
53747-30050 Extension, Apron Fender Side, Rh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
53747-30050 |
US $3.93 |
||
|
53795A
|
53795A
53795-30140 Cover, Engine Room, Side[09.2007 - 08.2009] GRS190,URS190..RHD |
53795-30140 |
US $104.83 |
||
| replacement | |||||
|
53795A
|
53795A
53795-30141 Cover, Engine Room, SideENGINE ROOM, SIDE [09.2007 - 08.2009] GRS190,URS190..RHD |
53795-30141 |
US $104.83 |
||
|
53795A
|
53795A
53795-30141 Cover, Engine Room, SideENGINE ROOM, SIDE [09.2009 -] GRS190,URS190..RHD |
53795-30141 |
US $104.83 |
||
|
53796A
|
53796A
53796-30140 Cover, Engine Room Side, Lh[09.2007 - 08.2009] GRS190,URS190..RHD |
53796-30140 |
US $110.66 |
||
| replacement | |||||
|
53796A
|
53796A
53796-30141 Cover, Engine Room Side, LhENGINE ROOM SIDE, LH [09.2007 - 08.2009] GRS190,URS190..RHD |
53796-30141 |
US $109.20 |
||
|
53796A
|
53796A
53796-30141 Cover, Engine Room Side, LhENGINE ROOM SIDE, LH [09.2009 -] GRS190,URS190..RHD |
53796-30141 |
US $109.20 |
||
|
53851Y
|
53851Y
53855-30010 Pad, Front Wheel Opening Extension, No.1[09.2007 - 02.2011] GRS19#,URS190,UZS190 |
53855-30010 |
US $12.08 |
||
| replacements | |||||
|
53851Y
|
53851Y
53891-30030 Pad, Front Wheel Opening Extension, No.1[09.2007 - 02.2011] GRS19#,URS190,UZS190 |
53891-30030 |
US $12.08 |
||
|
53851Y
|
53851Y
53892-30010 Pad, Front Wheel Opening Extension, No.1[09.2007 - 02.2011] GRS19#,URS190,UZS190 |
53892-30010 |
US $12.08 |
||
|
53851Y
|
53851Y
53891-30030 Pad, Front Wheel Opening Extension, No.1[02.2011 -] GRS19#,URS190 RH |
53891-30030 |
US $12.08 |
||
|
53851Y
|
53851Y
53892-30010 Pad, Front Wheel Opening Extension, No.1[02.2011 -] GRS19#,URS190 LH |
53892-30010 |
US $12.08 |
||
|
55101
|
55101
55101-30A60 Panel Sub-Assy, Dash[09.2007 - 12.2011] GRS190,URS190..RHD..EUR |
55101-30A60 |
US $461.55 |
||
|
55210
|
55210
55210-30411 Insulator Assy, Dash Panel[09.2007 - 08.2009] GRS190,URS190..RHD |
55210-30411 |
US $256.26 |
||
| replacement | |||||
|
55210
|
55210
55210-30412 Insulator Assy, Dash PanelDASH PANEL [09.2007 - 08.2009] GRS190,URS190..RHD |
55210-30412 |
US $256.26 |
||
|
55210
|
55210
55210-30412 Insulator Assy, Dash PanelDASH PANEL [09.2009 -] GRS190,URS190..RHD |
55210-30412 |
US $256.26 |
||
|
55214A
|
55214A
55214-30090 Pad, Dash Panel Insulator, No.2[09.2007 -] GRS190,URS190..RHD |
55214-30090 |
US $28.39 |
||
|
55215A
|
55215A
55215-30200 Pad, Dash Panel Insulator, No.3[09.2007 -] GRS190,URS190..RHD |
55215-30200 |
US $34.80 |
||
|
55223A
|
55223A
55223-30220
Insulator, Dash Panel, Outer
[09.2007 - 02.2010] GRS190,URS190..RHD |
55223-30220 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-30241 Insulator, Dash Panel, Outer[09.2007 - 02.2010] GRS190,URS190..RHD |
55223-30241 |
US $115.32 |
||
|
55223A
|
55223A
55223-30240
Insulator, Dash Panel, Outer
[03.2010 -] GRS190,URS190..RHD |
55223-30240 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-30241 Insulator, Dash Panel, Outer[03.2010 -] GRS190,URS190..RHD |
55223-30241 |
US $115.32 |
||
|
57104A
|
57104A
57104-30080 Member Sub-Assy, Front Cross[09.2007 -] GRS19#,URS190,UZS190 |
57104-30080 |
US $94.72 |
||
|
57117E
|
57117E
57117-30050 Retainer, Front Bumper Arm, Rh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
57117-30050 |
US $25.33 |
||
|
57118D
|
57118D
57118-30050 Retainer, Front Bumper Arm, Lh[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
57118-30050 |
US $26.56 |
||
|
91673A0612
|
91673A0612
91673-A0612 Bolt |
91673-A0612 |
US $0.96 |
||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.86 |
||
|
9010906328
|
9010906328
90109-06328 BOLT |
90109-06328 |
from US $0.96 |
||
| replacement | |||||
|
9010906328
|
9010906328
90080-10342 New Genuine Part |
90080-10342 |
US $3.92 |
||
|
9010908241
|
9010908241
90109-08241 BOLT |
90109-08241 |
US $1.44 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.76 |
||
|
9046706155
|
9046706155
90467-06155 Clip |
90467-06155 |
from US $0.76 |
||
|
9046707201
|
9046707201
90467-07201 Clamp(For Cool Air Intake) |
90467-07201 |
from US $1.13 |
||
|
9046709215
|
9046709215
90467-09215 Clip (For Center Lower Garnish) |
90467-09215 |
US $2.24 |
||
|
9046709226
|
9046709226
90467-09226 CLIP |
90467-09226 |
US $2.08 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.86 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.19 |
||
|
9054115004
|
9054115004
90541-15004 Cushion, Hood Bumper |
90541-15004 |
from US $3.38 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.12 |
||
|
9090467034
|
9090467034
90904-67034 Clip |
90904-67034 |
US $2.48 |
||
